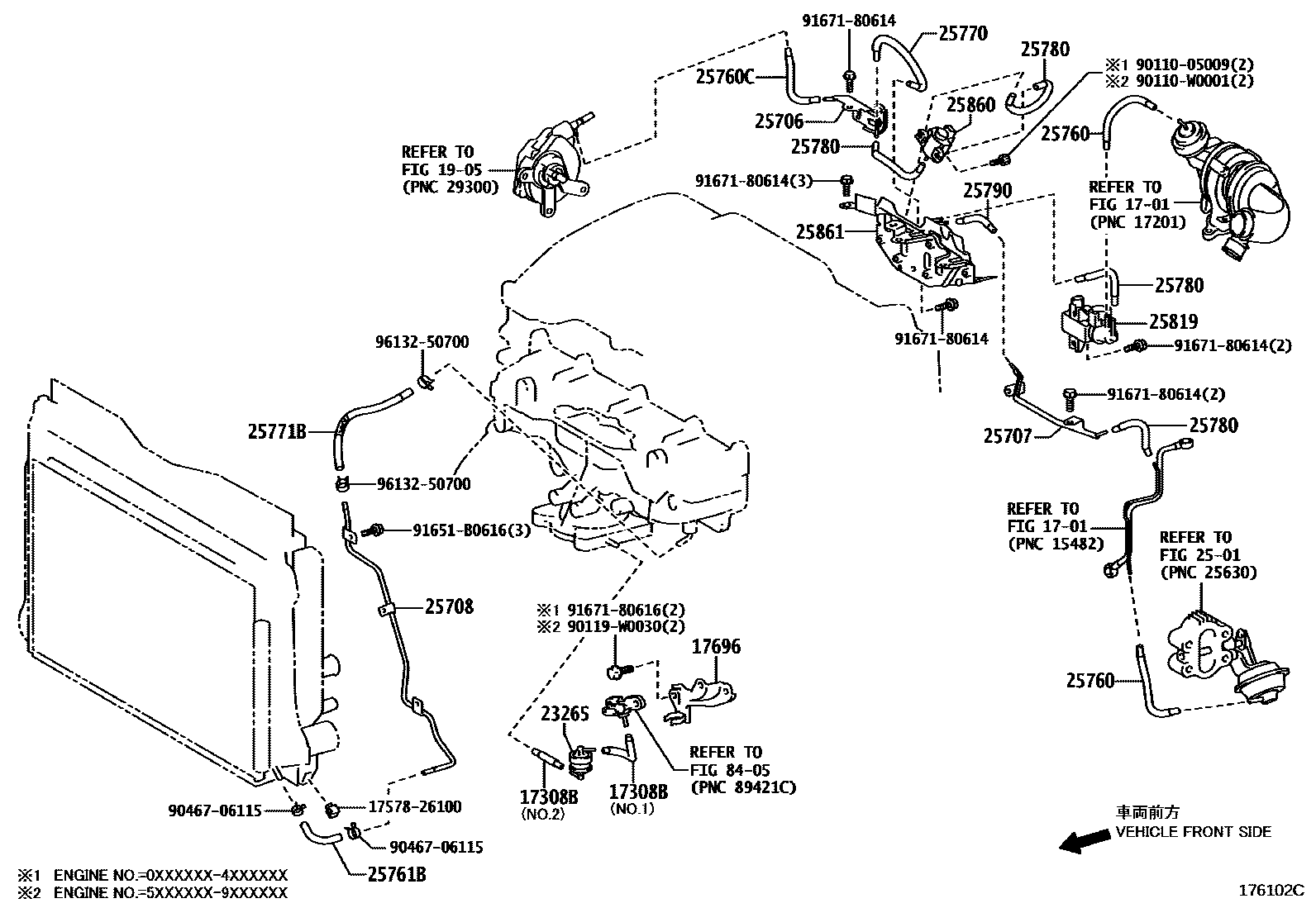

VACUUM PIPING
1701
17308BHOSE SUB-ASSY, VACUUM
NO.1
*145,NO.1,*119,NO.1
*145,NO.2,*119,NO.2
NO.2
17696BRACKET, GAS FILTER
main17696-26010i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*145,*119
1905
23265FILTER, GAS, NO.1
main90917-11044i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*145,*119
2501
25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
*119
*145
25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
*145
*119
25708PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25760HOSE ASSY, VACUUM TRANSMITTING
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
*145,*119
25760CHOSE ASSY, VACUUM TRANSMITTING, NO.3
*119
*145
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
*145
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
25761BHOSE, VACCUM TRANSMITTING, NO.1
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
*119
*145
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
sub25770-26172
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
25771BHOSE, VACCUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
*145
*119
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
*145
*119
25819VALVE ASSY, VACUUM REGULATING
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
sub25819-0R012
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
sub25860-0R011
sub25860-0R011
ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)
25861BRACKET, VACUUM SWITCHING VALVE
*119
*145
8405
1757826100CLAMP, PIPE
main17578-26100
9011005009
main90110-05009
90110W0001
main90110-W0001
90119W0030
main90119-W0030
9046706115
main90467-06115
91651B0616
main91651-B0616
9167180614
main91671-80614
9167180616
main91671-80616
9613250700
main96132-50700
29 parts on this diagram · 15 diagrams in section
