WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

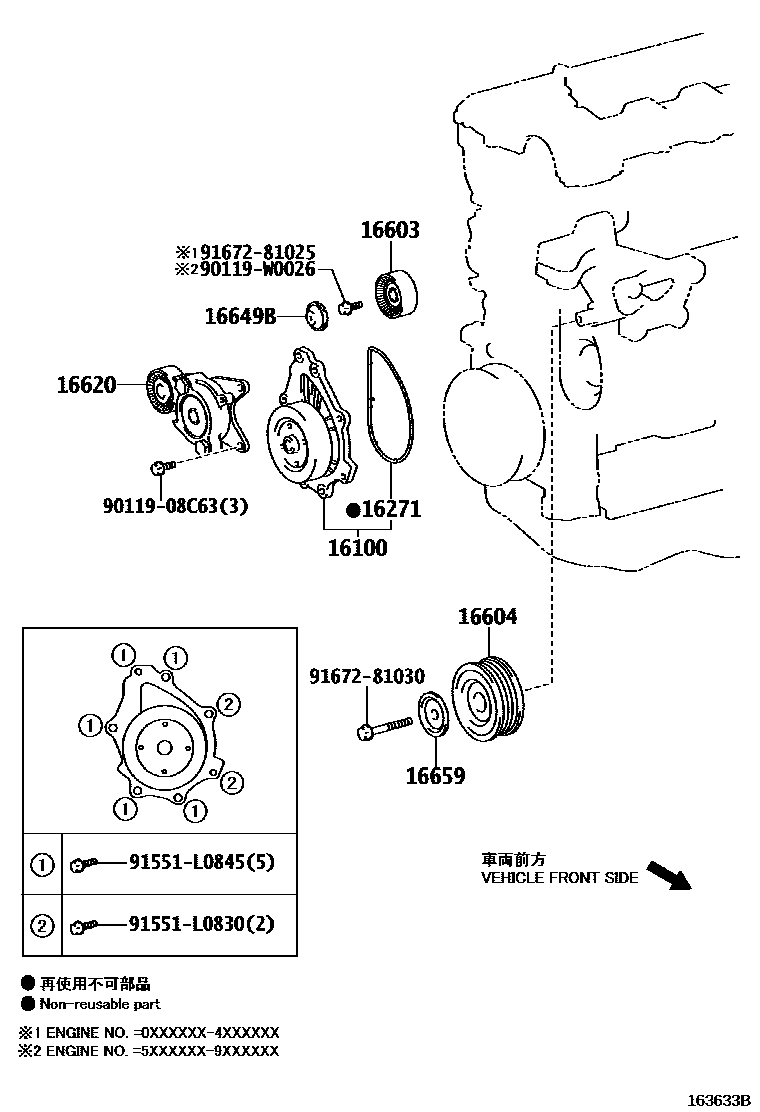

16100PUMP ASSY, ENGINE WATER

main16100-09340i2AD#..ADT271201111-201409

ENGINE-1AD-FTV

sub16100-09341

main16100-09340i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

*145

sub16100-09341

main16100-09341i1ADFTV..ADT270..SED201409

ENGINE-1AD-FTV

main16100-09500i1ZRFAE,2ZRFAE..ZRT270,271200811-200909

(L)

sub16100-09501

sub91551-80825¥80

main16100-09501i1ZRFAE,2ZRFAE..ZRT270,271200909-201505

(L)

sub16100-09502

main16100-09580i1ADFTV..ADT270201111-201409

sub16100-09581

main16100-09581i1ADFTV..ADT270201409

main16100-09670i2ZRFAE..ZRT271201505

MADE IN EUROPE

main16100-29495i2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G200811-201111

*119

sub16100-29496¥13,200

main16100-39465i1ZRFAE,2ZRFAE..ZRT270,271¥13,000200811-200906

(J)

sub16100-39466¥10,200

sub91551-80825¥80

main16100-39466i3ZRFE..ZRT272¥10,200200906-201505

(J)

main16100-39466i3ZRFE..ZRT272..RHD¥10,200200906-201104

main16100-39565i3ZRFAE..ZRT272¥10,500201505

MADE IN JAPAN

main16100-WA010i1WW,2WW..WWT27#201505-201804

16271GASKET, WATER PUMP

main16271-26010i2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G¥480200811-201111

*145,*119

main16271-26010i1ADFTV,2AD#..ADT27#¥480201111

main16271-37010i3ZRFE..ZRT272..RHD¥480200811-201505

main16271-37030i2ZRFAE,3ZRFAE..ZRT271,272¥520201505

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0R010i1ADFTV..ADT270..LHD..F¥4,130200811-201111

*145,*119

main16603-0R010i1ADFTV,2AD#..ADT27#¥4,130201111

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-26011i2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G200811-201111

*145,*119

sub16604-26012¥6,200

main16604-26011i1ADFTV,2AD#..ADT27#201111-201408

sub16604-26012¥6,200

main16604-26012i1ADFTV,2AD#..ADT27#¥6,200201409

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i1ADFTV..ADT270..LHD..F¥20,000200811-201111

*145,*119

main16620-0R010i1ADFTV,2AD#..ADT27#¥20,000201111

main16620-37011i3ZRFAE..ZRT272¥16,100201505-201506

sub16620-37030¥10,100

main16620-37030i2ZRFAE..ZRT271¥10,100201505

main16620-WA010i1WW,2WW..WWT27#201505-201804

16649BPLATE, IDLER PULLEY COVER

main16649-0R010i1ADFTV..ADT270..LHD..F200811-201111

*145,*119

main16649-0R010i1ADFTV,2AD#..ADT27#201111

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-26010i1ADFTV..ADT270..LHD..F¥360200811-201111

*145,*119

main16659-26010i1ADFTV,2AD#..ADT27#¥360201111

9011908C63

main90119-08C63¥130

90119W0026

main90119-W0026

91551L0830

main91551-L0830¥80

91551L0845

main91551-L0845¥100

9167281025

main91672-81025¥120

9167281030

main91672-81030¥220

13 parts on this diagram · 6 diagrams in section
