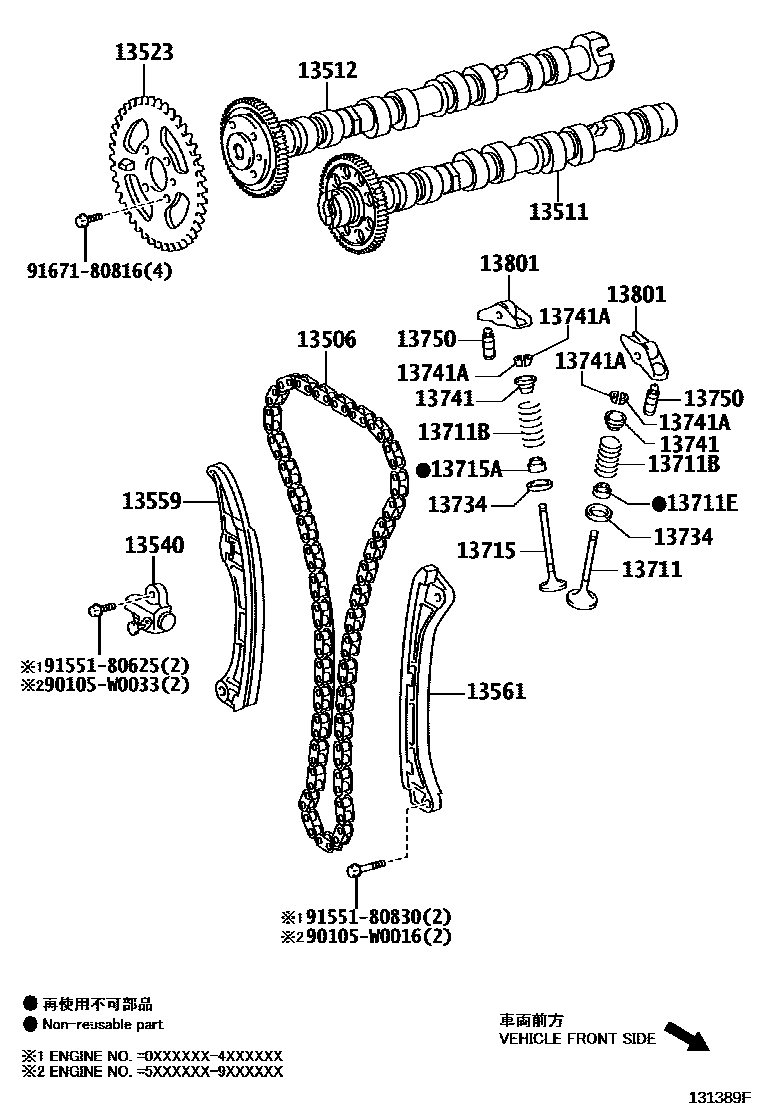

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
ENGINE-1AD-FTV
*145
(L)
*119
(J)
13511CAMSHAFT
*145
(L)
*119
(J)
13512CAMSHAFT, NO.2
*145
*145
(L)
*119
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
*145,*119
ENGINE-1AD-FTV
*145,*119
13540TENSIONER ASSY, CHAIN, NO.1
*145
(L)
*119
(J)
13559SLIPPER, CHAIN TENSIONER
*145
*119
*145
(L)
MADE IN EUROPE
MADE IN EUROPE
(J)
(J)
MADE IN JAPAN
13561DAMPER, CHAIN VIBRATION, NO.1
*145
*119
*145
(L)
MADE IN EUROPE
(J)
MADE IN JAPAN
(J)
13711VALVE, INTAKE
*145
(L)
(J)
*119
13711BSPRING, COMPRESSION(FOR INNER)
*145,*119
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
L=51.88
13711ESEAL, INTAKE VALVE STEM OIL
*119,(J),*145
(J)
(L)
(L),*145
13715VALVE, EXHAUST
*145
(L)
(J)
*119
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02124i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*119,(J),*145
(J)
(L),*145
(L)
13734SEAT, VALVE SPRING
(L)
*145,*119
(J)
13741RETAINER, VALVE SPRING
*145,*119
TYPE A:REFER ILLUST.
*145,*119
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
*145,*119
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
*145
(L),*119
(L)
(L)
(J)
(J),*119
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L),*119,*145
(L)
(L)
(J)
(J),*119
(J)
90105W0016
main90105-W0016
90105W0033
main90105-W0033
9155180625
main91551-80625
9155180830
main91551-80830
9167180816
main91671-80816
22 parts on this diagram · 4 diagrams in section
