CYLINDER BLOCK

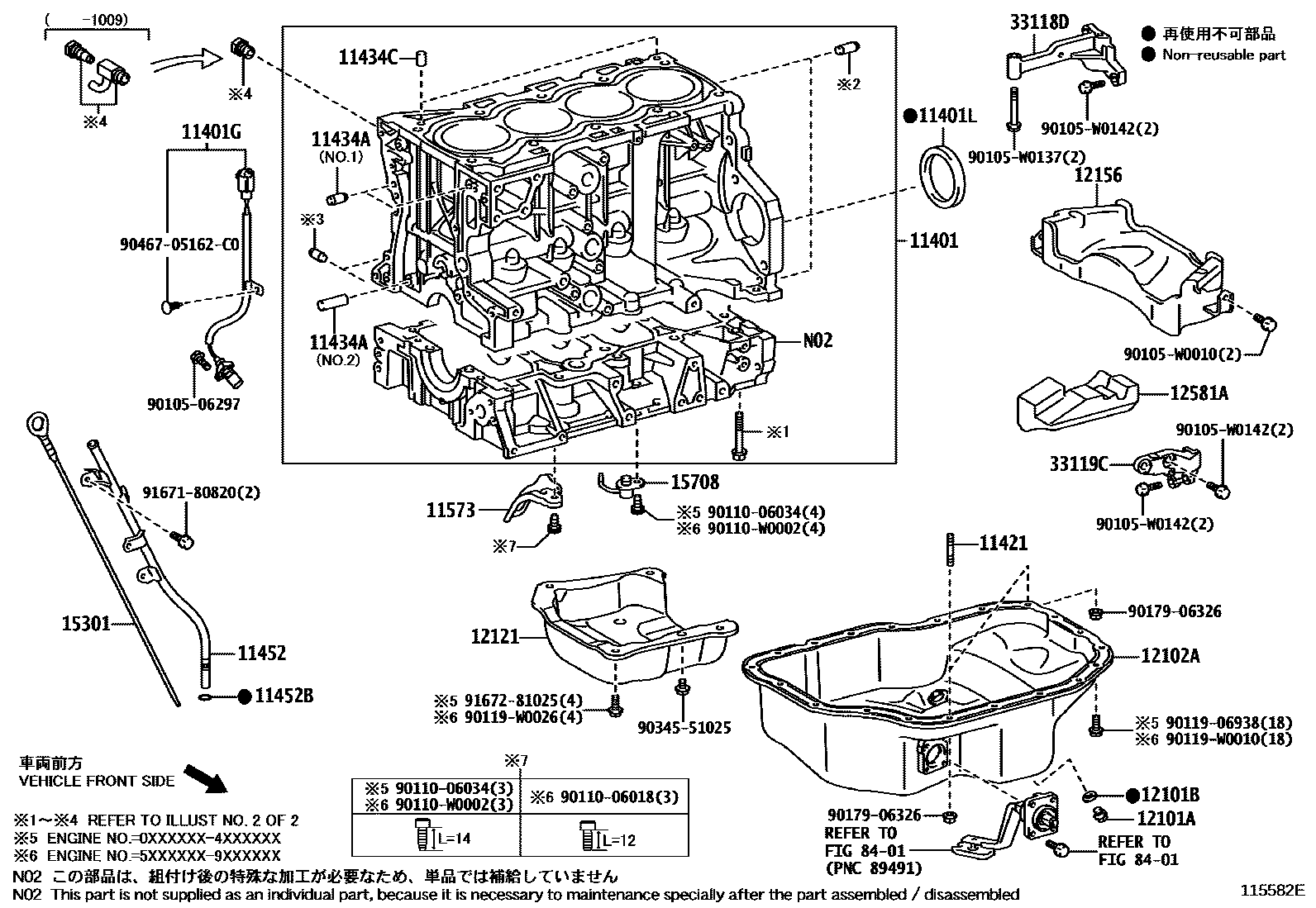

Parts diagram
11401BLOCK SUB-ASSY, CYLINDER
main11401-WA020i201505-201804
main11401-WA030i201505-201804
main11410-09300i200811-200906
(L)
sub11410-09301
main11410-09301i200906-201006
(L)
main11410-09310i200811-200906
(L)
main11410-09311i200906-201006
(L)
main11410-09405i200811-201103
(L),*145
sub11410-09406
main11410-09406i201111-201309
(L)
main11410-09406i201309
main11410-09406i201103-201111
(L),*145
main11410-09415i200811-201103
(L),*145
sub11410-09416
main11410-09416i201111-201309
(L)
main11410-09416i201309
main11410-09416i201103-201111
(L),*145
main11410-09445i201006-201612
(L)
sub11410-09446
main11410-09446i201612
(L)
main11410-09455i¥206,000201006-201612
(L)
sub11410-09456
main11410-09456i201612
(L)
main11410-29405i200811-201111
*119
sub11410-29406
main11410-29405i200811-201103
(J),*145
sub11410-29406
main11410-29406i201111-201309
(J)
sub11410-09406
main11410-29406i201103-201111
(J),*145
sub11410-09406
main11410-29415i200811-201103
(J),*145
sub11410-29416
main11410-29415i200811-201111
*119
sub11410-29416
main11410-29416i201103-201111
(J),*145
sub11410-09416
main11410-29416i201111-201309
(J)
sub11410-09416
main11410-39035i¥223,000200811-201506
sub11410-39036¥222,000
main11410-39036i¥222,000201506-201612
sub11410-39037¥154,000
main11410-39037i¥154,000201612
sub11410-39038¥154,000
main11410-39045i200811-200904
(J)
sub11410-39047¥190,000
main11410-39047i¥190,000200904-201612
(J)
sub11410-39235
main11410-39055i¥206,000200811-200904
(J)
sub11410-39057¥206,000
main11410-39057i¥206,000200904-201612
(J)
sub11410-39245¥142,000
main11410-39235i201612
(J)
sub11410-39236
main11410-39245i¥142,000201612
(J)
sub11410-39246¥129,000
11401GSENSOR, CRANK POSITION
main90919-05069i200811-201111
*145,*119
main90919-05069i201111
main90919-05070i¥3,870200811-201505
11401LSEAL, ENGINE REAR OIL
main90069-38023i201505
main90311-76002i¥1,510200811-201505
(J)
main90311-76002i¥1,510200811-201609
main90311-78002i¥2,020201303-201505
main90311-78008i¥1,510201610
(J)
main90311-90009i¥1,390200811-201111
(J),*119
main90311-W0010i200811-201111
(L),*119,*145
sub90311-W0020
main90311-W0010i201111
sub90311-W0020
main90311-W0011i200811-201505
(L)
11421BOLT, STUD(FOR OIL PAN)
main90116-06134i¥130200811-201111
*145,*119
main90116-06134i¥130201111
main90126-06015i¥110200811-201006
main90126-06028i¥60201006-201505
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-04097i¥50200811-201505
L=12,OD=4.0
main90250-08120i¥140200811-201111
L=18,OD=8,*145,NO.1,*119,NO.1
main90250-08120i¥140201111
L=18,OD=8,NO.1
main90250-10030i¥160201111
L=36,OD=10,NO.2
main90250-10030i¥160200811-201111
L=36,OD=10,*145,NO.2,*119,NO.2
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
main90250-04097i¥50200811-201505
L=12,OD=4.0
main90250-08074i¥100201111
L=15,OD=8
main90250-08074i¥100200811-201111
L=15,OD=8,*145,*119
11452GUIDE, OIL LEVEL GAGE
main11452-26030i200811-201111
*145,*119
main11452-26060i201111
main11452-37010i¥2,170200811-201101
sub11452-37011¥1,360
main11452-37011i¥1,360201101-201505
main11452-37020i¥1,580200811-201505
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
main90069-38029i201505
main96721-19010i¥190200909-201111
*145,*119
main96721-19010i¥190200811-201505
main96741-19010i¥250200811-200909
*145,*119
11573PLATE, OIL REFLECTOR
main11573-26010i¥490200811-201111
*145,*119
main11573-26010i¥490201111
12101PAN SUB-ASSY, OIL
main12101-WA010i201505-201804
12101APLUG(FOR OIL PAN DRAIN)
main90069-39020i¥220201505
main90341-12012i¥160200811-201111
*145,*119
main90341-12012i¥160201111-201505
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90069-38021i¥230201505
main90430-12031i¥90200811-201111
*145,*119
main90430-12031i¥90201111-201505
12102APAN SUB-ASSY, OIL, NO.2
main12101-26030i201111
main12102-0R020i200811-200908
*145,*119
sub12102-0R021
main12102-0R021i200908-201111
*145,*119
sub12102-0R022
main12102-0R021i201111-201302
ENGINE-1AD-FTV
sub12102-0R022
main12102-0R022i201302
ENGINE-1AD-FTV
main12102-0T040i201605
(L)
main12102-37010i¥3,780200811-201605
main12102-37010i¥3,780201605
(J)
12121PLATE, OIL PAN BAFFLE, NO.1
main12121-26020i200811-201111
*145,*119
main12121-26020i201111
12156INSULATOR, OIL PAN
main12156-0R020i200811-201111
12581AINSULATOR, CYLINDER BLOCK, NO.1
main12581-26010i¥1,350200811-201111
*145,*119
main12581-26010i¥1,350201111
15301GAGE SUB-ASSY, OIL LEVEL
main15301-26070i200811-201111
*145,*119
main15301-26070i201111
main15301-26080i201111
main15301-26080i200811-201111
*145,*119
main15301-37010i¥750200811-201505
main15301-37020i¥820200811-201206
main15301-37030i¥1,200201208-201306
sub15301-37010¥750
main15301-37040i¥1,000201206-201505
sub15301-37020¥820
main15301-YV030i201505
15708NOZZLE SUB-ASSY, OIL, NO.1
main15708-0R010i200811-201103
*145,*119
sub15708-0R011
main15708-0R011i201111
ENGINE-1AD-FTV
main15708-0R011i201103-201111
*145,*119
main15708-0R020i201111
main15708-37011i¥1,260200811-201211
sub15708-37012¥770
main15708-37012i¥770201211-201505
main15708-WA010i201505-201804
33118DPLATE, STIFFENER, RH
main33118-05010i200811-201111
33119CPLATE, STIFFENER, LH
main33119-05020i200811-201111
8401
9010506297
main90105-06297¥60
90105W0010
main90105-W0010¥90
90105W0137
main90105-W0137
90105W0142
main90105-W0142
9011006018
main90110-06018¥70
9011006034
main90110-06034¥110
90110W0002
main90110-W0002
9011906938
main90119-06938¥60
90119W0010
main90119-W0010
90119W0026
main90119-W0026
9017906326
main90179-06326¥60
9034551025
main90345-51025¥210
9046705162C0
main90467-05162C0
9167180820
main91671-80820¥80
9167281025
main91672-81025¥120

36 parts on this diagram · 6 diagrams in section
