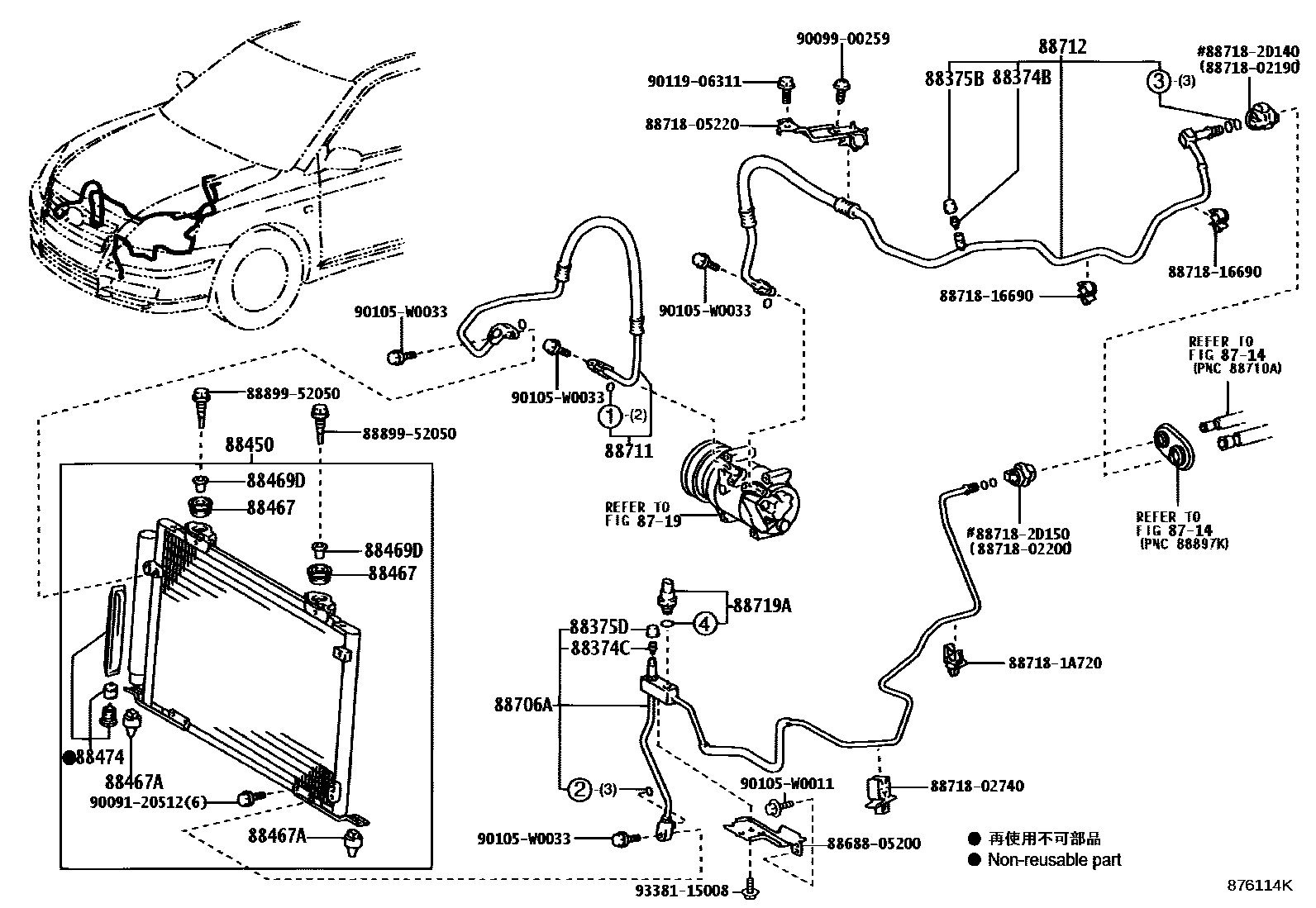

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1MAKER OPTION 0007 1MAKER OPTION 0008 1DEALER OPTION 0009 1DEALER OPTION 0010 1MAKER OPTION 0011 1MAKER OPTION 0012 1W(STOVE HEATER) 0013 1DEALER OPTION 0014 1DEALER OPTION 0015 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAZT25#,ZZT25#;ADT251,CDT250..RHD200301-200604

AIR CONDITIONER-W/O

main88374-30010iADT25#..LHD200604-200811

main88374-30010iAZT25#,ZZT25#;ADT251,CDT250..RHD200301-200604

W/O(VSC)

main88374-30010iZZT25#..ENTRY200301-200604

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

88374CVALVE, SERVICE, NO.2

main88374-30010iZZT251..RHD..LB..4FC..ENTRY;ADT251,ZZT25#..RHD..MTM..ENTRY200301-200604

AIR CONDITIONER-MANUAL,DOP

main88374-30010iZZT251..RHD..LB..4FC..ENTRY;ADT251,ZZT25#..RHD..MTM..ENTRY200301-200604

AIR CONDITIONER-W/O

main88374-30010iZZT251..RHD..LB..4FC..ENTRY;ADT251,ZZT25#..RHD..MTM..ENTRY200301-200512

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

main88374-30010iZZT25#..RHD..ENTRY200301-200512

W/O(VSC)

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAZT25#,ZZT25#;ADT251,CDT250..RHD200301-200604

AIR CONDITIONER-W/O

main88375-30290iAZT25#;ADT25#,ZZT25#..RHD200604-200811

main88375-30290iZZT25#..ENTRY200301-200604

W/O(VSC)

main88375-30290iAZT25#,ZZT25#;ADT251,CDT250..RHD200301-200604

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iADT251..RHD;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)200301-200811

88450CONDENSER ASSY, W/RECEIVER

main88450-05090iZZT25#..RHD200301-200401

main88450-05091iZZT25#..RHD200401-200604

main88450-05100iZZT25#..LHD200301-200401

main88450-05101iZZT25#..LHD200604

main88450-05101iCDT250..LHD..DCR200401-200604

HEATER-W/STOVE HEATER

main88450-05110iAZT25#..RHD200301-200401

sub88450-05111

sub90119-W0067

main88450-05111iAZT25#..RHD200401-200604

main88450-05120iAZT25#..LHD200301-200401

sub88450-05121

sub90119-W0067

main88450-05121iAZT25#..LHD200401-200604

main88450-05130iCDT250..RHD..ENTRY200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88450-05140iCDT250..LHD200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88450-05160iADT25#..RHD200504-200604

main88450-05170iADT251..LHD200504-200604

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iAZT25#,ZZT25#200301-200604

main88467-12180iAZT25#,ZZT25#200401-200604

HEATER-W/STOVE HEATER

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-05010iAZT25#200303-200604

main88467-20190iAZT25#200301-200312

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iAZT25#,ZZT25#200301-200604

main88469-52010iCDT250..LHD..DCR200401-200604

HEATER-W/STOVE HEATER

88474DRYER, COOLER

main88474-17010iZZT25#..ENTRY200301-200604

AIR CONDITIONER-W/O

main88474-17010iZZT25#..ENTRY200301-200604

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

main88474-17010iZZT25#..ENTRY200301-200604

W/O(VSC)

main88474-17010iZZT25#..ENTRY200301-200604

AIR CONDITIONER-MANUAL,DOP

main88474-17010iAZT25#,ZZT25#200401-200604

HEATER-W/STOVE HEATER

main88474-17010iADT25#,AZT25#,ZZT25#200604

main88474-52020iCDT250..LHD..ENTRY200303-200604

HEATER-W/STOVE HEATER&AIR CONDITIONER-W/O

main88474-52020iCDT250..LHD..ENTRY200303-200604

HEATER-W/STOVE HEATER&AIR CONDITIONER-MANUAL,DOP

main88474-52020iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/PTC HEATER

main88474-52020iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88474-52020iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/STOVE HEATER

main88474-52020iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/STOVE HEATER&AIR CONDITIONER-MANUAL,DOP

main88474-52020iCDT250..LHD..ENTRY200303-200604

AIR CONDITIONER-MANUAL,DOP

main88474-52020iCDT250..LHD..ENTRY200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88474-52020iCDT250..LHD..ENTRY200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-W/O

88706ATUBE SUB-ASSY, LIQUID, A

main88706-05050iCDT250..RHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88706-05050iCDT250..RHD..ENTRY200303-200604

AIR CONDITIONER-MANUAL,DOP

main88706-05050iCDT250..RHD..ENTRY200303-200604

AIR CONDITIONER-W/O

main88706-05050iCDT250..RHD..ENTRY200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88706-05050iCDT250..RHD..ENTRY200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-W/O

main88706-05050iCDT250..RHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/PTC HEATER

main88706-05080iCDT250..LHD..ENTRY200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88706-05080iCDT250..LHD..ENTRY200303-200604

AIR CONDITIONER-MANUAL,DOP

main88706-05080iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/STOVE HEATER&AIR CONDITIONER-MANUAL,DOP

main88706-05080iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/STOVE HEATER

main88706-05080iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/PTC HEATER&AIR CONDITIONER-MANUAL,DOP

main88706-05080iCDT250..LHD..ENTRY200303-200604

W/O(VSC)&HEATER-W/PTC HEATER

main88706-05080iCDT250..LHD..ENTRY200303-200604

HEATER-W/STOVE HEATER&AIR CONDITIONER-MANUAL,DOP

main88706-05080iCDT250..LHD..ENTRY200303-200604

HEATER-W/STOVE HEATER&AIR CONDITIONER-W/O

main88706-05080iCDT250..LHD..ENTRY200303-200604

HEATER-W/PTC HEATER&AIR CONDITIONER-W/O

main88716-05370iZZT25#..RHD..ENTRY200301-200512

AIR CONDITIONER-MANUAL,DOP

main88716-05370iZZT25#..RHD200301-200512

W/O(VSC)

main88716-05370iZZT25#..RHD200301-200512

AIR CONDITIONER-W/O

main88716-05370iZZT25#..RHD200301-200512

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

main88716-05371iZZT25#..RHD..ENTRY200512-200604

AIR CONDITIONER-W/O

main88716-05371iZZT25#..RHD..ENTRY200512-200604

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

main88716-05371iZZT25#..RHD200604

main88716-05371iZZT25#..RHD..ENTRY200512-200604

AIR CONDITIONER-MANUAL,DOP

main88716-05371iZZT25#..RHD..ENTRY200512-200604

W/O(VSC)

main88716-05380iZZT25#..LHD200301-200309

AIR CONDITIONER-W/O

main88716-05380iZZT25#..LHD200301-200309

W/O(VSC)

main88716-05380iZZT25#..LHD200301-200309

AIR CONDITIONER-MANUAL,DOP

main88716-05380iZZT25#..LHD..ENTRY200301-200309

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

main88716-05381iZZT25#..LHD..ENTRY200309-200512

W/O(VSC)

main88716-05381iZZT25#..LHD..ENTRY200309-200512

AIR CONDITIONER-MANUAL,DOP

main88716-05381iZZT25#..LHD200309-200512

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

main88716-05381iZZT25#..LHD200309-200512

AIR CONDITIONER-W/O

main88716-05382iZZT25#..LHD200512-200604

AIR CONDITIONER-W/O

main88716-05382iZZT25#..LHD200512-200604

W/O(VSC)

main88716-05382iZZT25#..LHD200512-200604

AIR CONDITIONER-MANUAL,DOP

main88716-05382iZZT25#..LHD200512-200604

W/O(VSC)&AIR CONDITIONER-MANUAL,DOP

main88716-05382iZZT25#..LHD200604

main88716-05390iAZT25#..RHD200301-200512

main88716-05391iAZT25#..RHD200512-200604

main88716-05400iAZT25#..LHD200301-200512

main88716-05401iAZT25#..LHD200512-200604

main88716-05530iADT251..LHD200504-200511

AIR CONDITIONER-MANUAL,DOP

main88716-05530iADT251..LHD200504-200511

AIR CONDITIONER-W/O

main88716-05540iADT251..RHD..ENTRY200504-200512

AIR CONDITIONER-W/O

main88716-05540iADT251..RHD..ENTRY200504-200512

AIR CONDITIONER-MANUAL,DOP

main88716-05550iADT251..RHD..ENTRY200512-200604

AIR CONDITIONER-W/O

main88716-05550iADT251..RHD200512-200604

AIR CONDITIONER-MANUAL,DOP

main88716-05550iADT25#..RHD200604

main88716-05560iADT251..LHD..ENTRY200512-200604

AIR CONDITIONER-W/O

main88716-05560iADT251..LHD..ENTRY200512-200604

AIR CONDITIONER-MANUAL,DOP

main88716-05560iADT25#..LHD200604

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-05240iZZT25#200301-200511

sub88703-05241

main88703-05241iZZT25#200512-200801

sub88703-05242

main88703-05242iZZT25#200801

main88703-05250iAZT25#..LHD200301-200511

sub88703-05251

main88703-05251iAZT25#..LHD200512-200801

sub88703-05252

main88703-05252iAZT25#..LHD200801

main88703-05300iAZT25#..RHD200301-200511

sub88703-05301

main88703-05301iAZT25#..RHD200512-200604

main88703-05330iADT251200504-200511

sub88703-05331

main88703-05331iADT25#200512-200801

sub88703-05332

main88703-05332iADT25#200801

main88711-05250iCDT250200303-200604

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-05270iZZT25#..RHD200301-200604

main88712-05280iZZT25#..LHD200301-200604

main88712-05290iAZT25#..RHD200301-200604

main88712-05300iAZT25#..LHD200301-200604

main88712-05310iCDT250..RHD200303-200604

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iADT25#,AZT25#,ZZT25#200707

main88719-40020iADT251;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)200301-200707

8868805200BRACKET, COOLER DIAPHRAGM

main88688-05200

8871802190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02190

8871802200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02200

8871802740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02740

8871805220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-05220

8871816690PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16690

887181A720PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A720

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9009120512

main90091-20512

9009900259

main90099-00259

90105W0011

main90105-W0011

90105W0033

main90105-W0033

9011906311

main90119-06311

9338115008

main93381-15008

31 parts on this diagram · 15 diagrams in section
