HEATING & AIR CONDITIONING - WATER PIPING

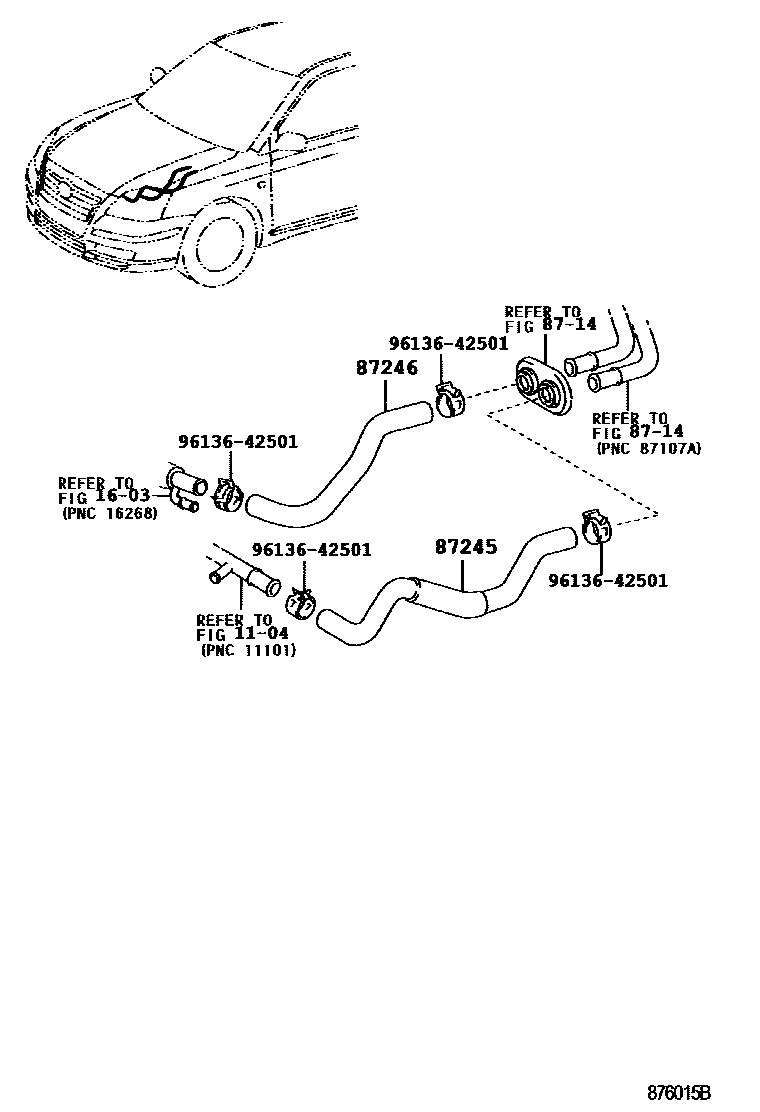

Parts diagram
1104
1603
8714
87245HOSE, HEATER WATER, INLET
main87245-05430i200301-200604
main87245-05450i¥1,900200301-200801
sub87245-05451¥1,900
main87245-05451i¥1,900200801
main87245-05470i200301-200604
main87245-05530i200301-200604
main87245-05540i200301-200801
sub87245-05541
main87245-05541i200801
main87245-05550i200303-200604
main87245-05570i200303-200604
main87245-05610i200504-200604
main87245-05630i200504-200604
87246HOSE, HEATER WATER, OUTLET
main87245-02380i200301-200604
main87245-02440i200301-200801
sub87245-02441
main87245-02441i200801
main87245-05440i200301-200604
main87245-05460i¥1,080200301-200801
sub87245-05461¥1,080
main87245-05461i¥1,080200801
main87245-05480i200301-200604
main87245-05560i200303-200604
main87245-05580i200303-200604
main87245-05620i200504-200604
main87245-05640i200504-200604
9613642501
main96136-42501¥200
