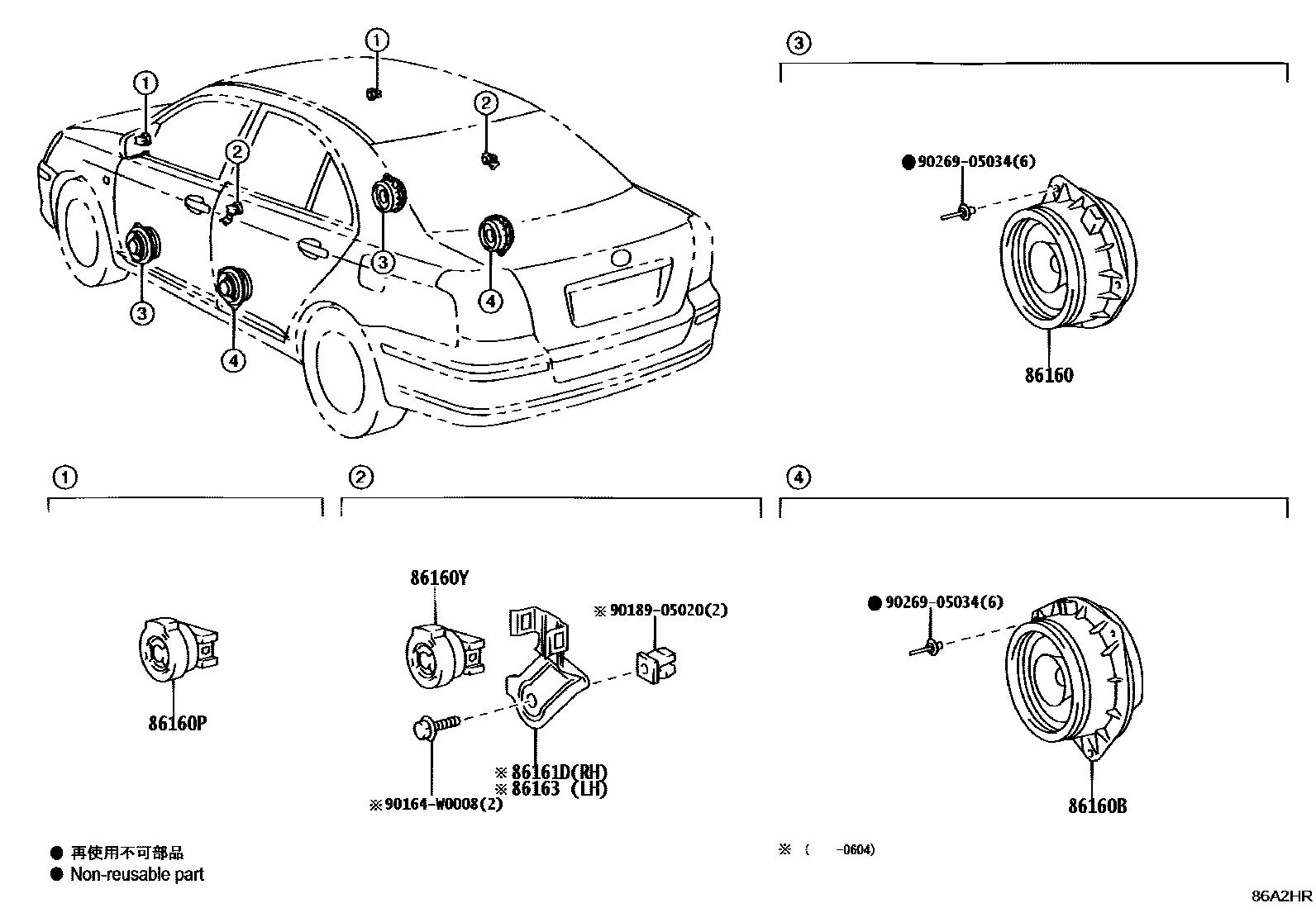

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-02370iCDT250..DCRL200301-200604

main86160-0D180iADT25#,ZZT25#..ENTRY200604

sub86160-0D370

86160BSPEAKER ASSY, REAR

main86160-02380iCDT250..DCRL200301-200604

main86160-0D190iADT25#,ZZT25#..ENTRY200604

86160PSPEAKER ASSY, FRONT NO.2

main86160-05090iCDT250..DCRL200301-200604

86160YSPEAKER ASSY, REAR NO.2

main86160-05090iCDT250..DCRL200301-200604

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-05010iCDT250..DCRL200301-200604

86163BRACKET, SPEAKER, NO.2

main86163-05010iCDT250..DCRL200301-200604

90164W0008

main90164-W0008

9018905020

main90189-05020

9026905034

main90269-05034

9 parts on this diagram · 1 diagram in section
