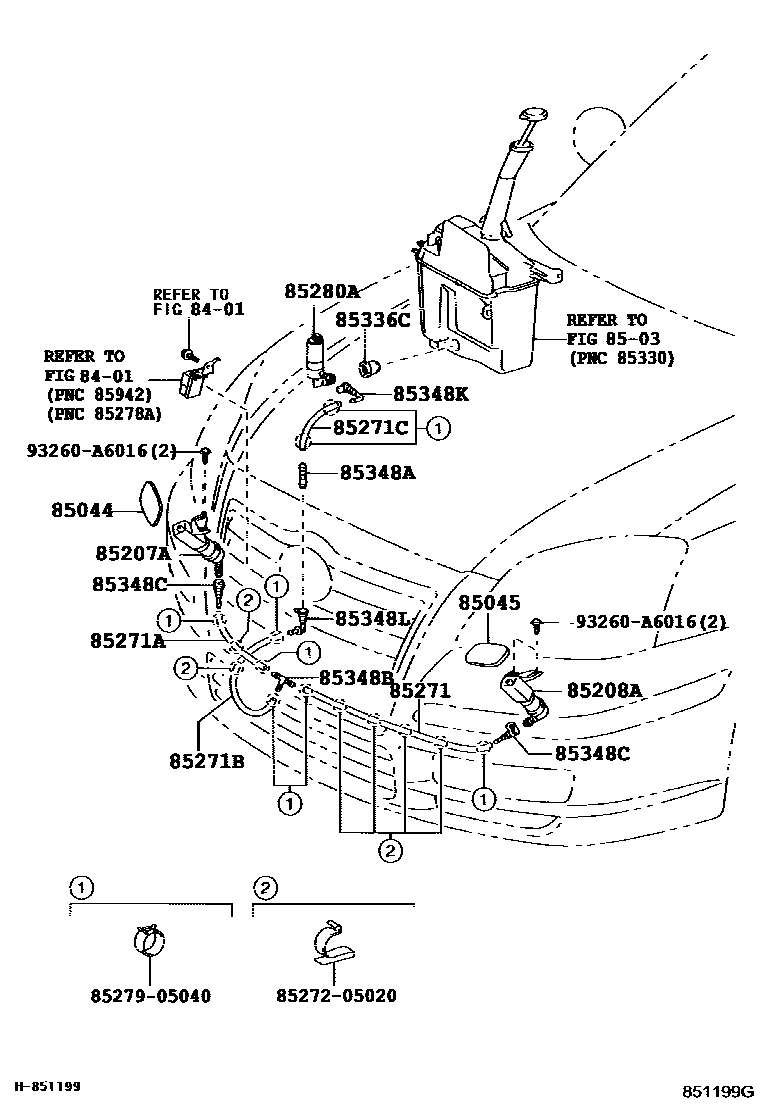

HEADLAMP CLEANER

0001 1 0002 1

8401

8503

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-05900

main85044-09901

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-05900

main85045-09901

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

main85277-05010

main85276-02050

main85276-05060

main85275-05060

main85277-05060

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85271CHOSE, HEADLAMP CLEANER, NO.4

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85336CPACKING, HEADLAMP CLEANER MOTOR

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

8527205020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-05020

8527905040RELAY ASSY, HEADLAMP CLEANER WASHER

main85279-05040

93260A6016

main93260-A6016

20 parts on this diagram · 2 diagrams in section
