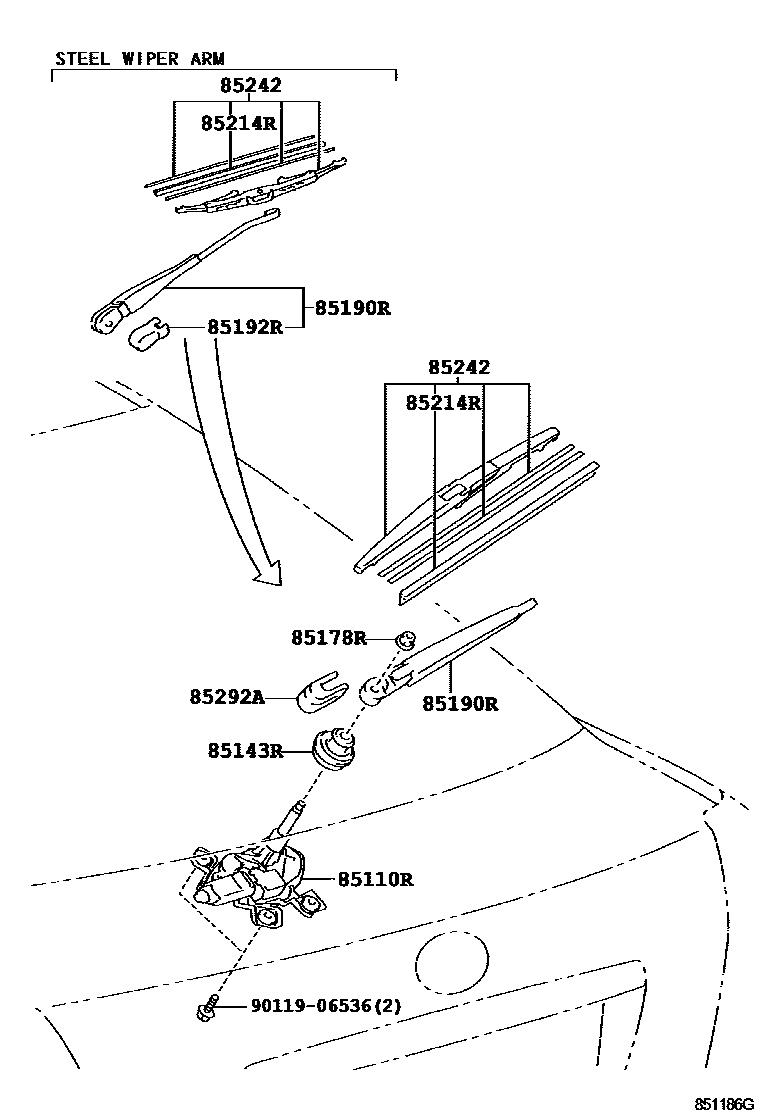

REAR WIPER

0001 1 0002 1 0003 1

85110RMOTOR ASSY, REAR WIPER

main85130-05090iADT251,AZT25#,CDT250,ZZT25#..LB200301-200804

sub85130-05091

main85130-05091iADT25#,AZT25#,ZZT25#..LB200805

main85130-05100iADT25#,AZT25#,ZZT25#..WG¥25,500200301-200604

85143RGROMMET, REAR WIPER MOTOR

main85143-05050iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

main85143-05060iADT251,AZT25#,CDT250,ZZT25#..WG¥180200301-200604

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iADT251,AZT25#,CDT250,ZZT25#..LB,WG¥70200301-200604

85190RARM ASSY, REAR WIPER

main85241-05070iAZT25#,CDT250,ZZT25#..LB200301-200502

main85241-05080iADT251,AZT25#,CDT250,ZZT25#..WG¥2,330200301-200604

main85241-20170iAZT250..LB¥2,700200305-200604

W(STEEL WIPER ARM)

main85241-20170iADT251,AZT25#,CDT250,ZZT25#..LB¥2,700200502-200611

main85241-20190iADT25#,AZT25#,ZZT25#..LB200611

85192RCOVER, REAR WIPER ARM

main85192-13060iADT251,AZT251,CDT250,ZZT25#..LB¥440200305-200811

85214RRUBBER, REAR WIPER

main85214-02210iAZT25#,CDT250,ZZT25#..LB¥960200502-200504

sub85214-02211¥960

main85214-05100iAZT25#,CDT250,ZZT25#..LB200301-200403

main85214-05110iADT251,AZT25#,CDT250,ZZT25#..WG¥600200301-200811

main85214-05130iAZT25#,CDT250,ZZT25#..LB200403-200502

main85214-10100iAZT250..LB¥650200305-200604

W(STEEL WIPER ARM)

main85214-50060iADT251,AZT25#,CDT250,ZZT25#..LB¥830200504-200606

sub85214-50061¥650

main85214-50061iADT25#,AZT25#,ZZT25#..LB¥650200606-200811

85242BLADE, RR WIPER

main85212-05080iAZT25#,CDT250,ZZT25#..LB200502-200503

sub85212-05081

main85212-13030iADT251,AZT25#,ZZT25#..LB¥2,090200504-200606

sub85212-13031¥1,640

main85212-13031iADT25#,AZT25#,ZZT25#..LB¥1,640200606-200803

main85242-05070iAZT25#,CDT250,ZZT25#..LB200301-200403

main85242-05080iADT251,AZT25#,CDT250,ZZT25#..WG¥1,560200301-200811

main85242-05090iAZT25#,CDT250,ZZT25#..LB200403-200502

main85242-05110iADT25#,AZT25#,ZZT25#..LB200803-200811

main85242-60050iAZT250..LB¥2,090200305-200604

W(STEEL WIPER ARM)

85292ACAP, REAR WIPER ARM HEAD

main85292-02030iADT251,AZT25#,CDT250,ZZT25#..WG¥340200301-200604

main85292-05030iAZT25#,CDT250,ZZT25#..LB200301-200502

9011906536

main90119-06536¥150

9 parts on this diagram · 3 diagrams in section
