TIRE PRESSURE WARNING SYSTEM

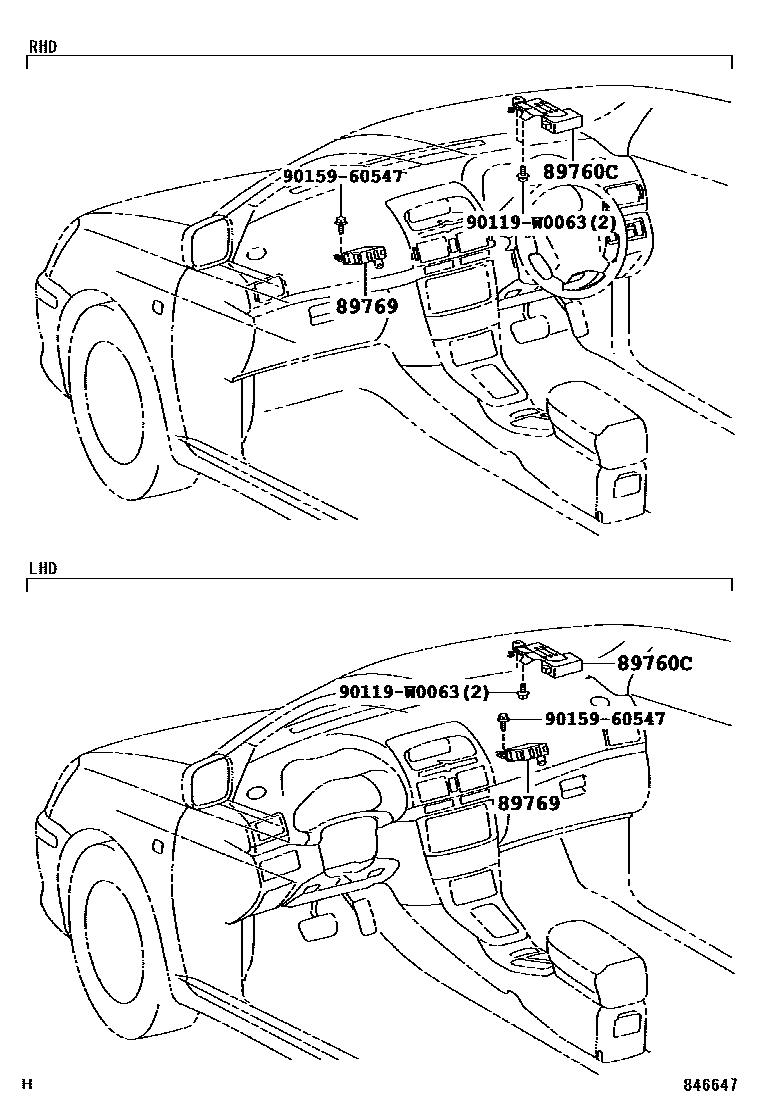

Parts diagram

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

89769COMPUTER, TIRE PRESSURE MONITOR

main89769-20010

main89769-20020

main89769-20030

main89769-20040

90119W0063

main90119-W0063

9015960547

main90159-60547

4 parts on this diagram · 1 diagram in section
