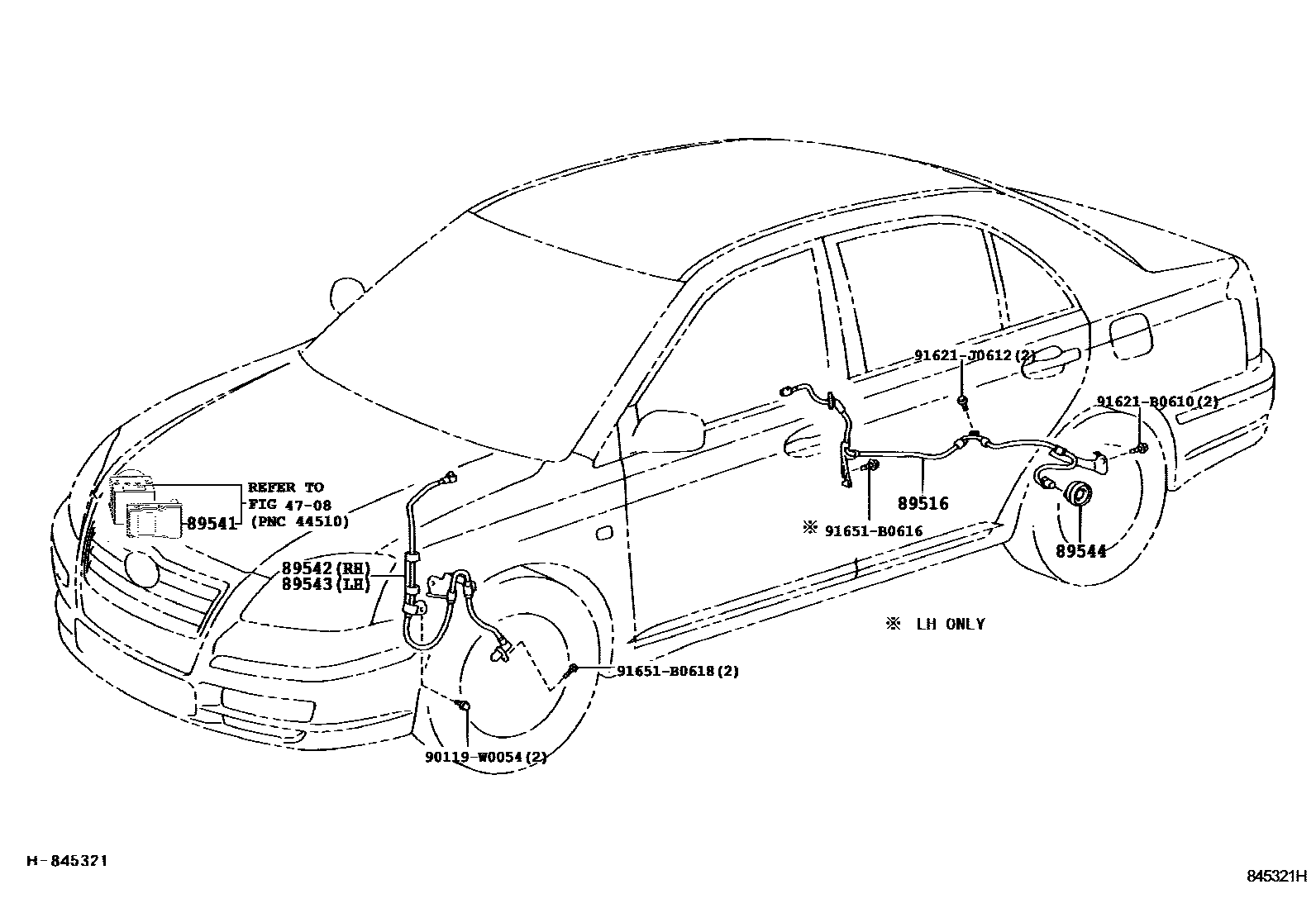

ABS & VSC

0001 1 0002 1W(VSC)

4708

89516WIRE, SKID CONTROL SENSOR

main89516-05010iCDT250..DCRL¥2,840200301-200604

RH

main89516-05030iCDT250..DCRL¥2,840200301-200604

LH

89541COMPUTER, SKID CONTROL

main89541-05060iAZT250,CDT250,ZZT25#..DCR,HTWC200301-200305

main89541-05062iZZT251¥47,600200305-200604

main89541-05070iAZT250..D4¥259,000200301-200305

main89541-05072iAZT25#..D4¥207,000200305-200402

VSC-WITH

main89541-05073iAZT25#..D4¥208,000200402-200503

VSC-WITH

sub89541-05090¥208,000

main89541-05090iADT251,ZZT251¥208,000200402-200604

VSC-WITH

main89541-05100iADT25#,AZT25#..D4,DCR,DCRL200604

main89541-05130iZZT251¥257,000200604

VEHICLE STABILITY CONT-WITH

89542SENSOR, SPEED, FRONT RH

main89542-02040iCDT250..DCRL¥21,700200301-200604

89543SENSOR, SPEED, FRONT LH

main89543-02040iADT25#,AZT25#,ZZT25#¥21,700200301-200604

89544SENSOR, SKID CONTROL

main89544-02010iADT251,AZT25#,CDT250,ZZT25#¥8,400200507-200604

(L)

main89544-02010iCDT250..DCRL¥8,400200301-200507

main89544-32040iADT251,AZT25#,CDT250,ZZT25#¥13,300200507-200604

(J)

90119W0054

main90119-W0054¥170

91621B0610

main91621-B0610¥120

91621J0612

main91621-J0612¥70

91651B0616

main91651-B0616¥80

91651B0618

main91651-B0618¥100

11 parts on this diagram · 2 diagrams in section
