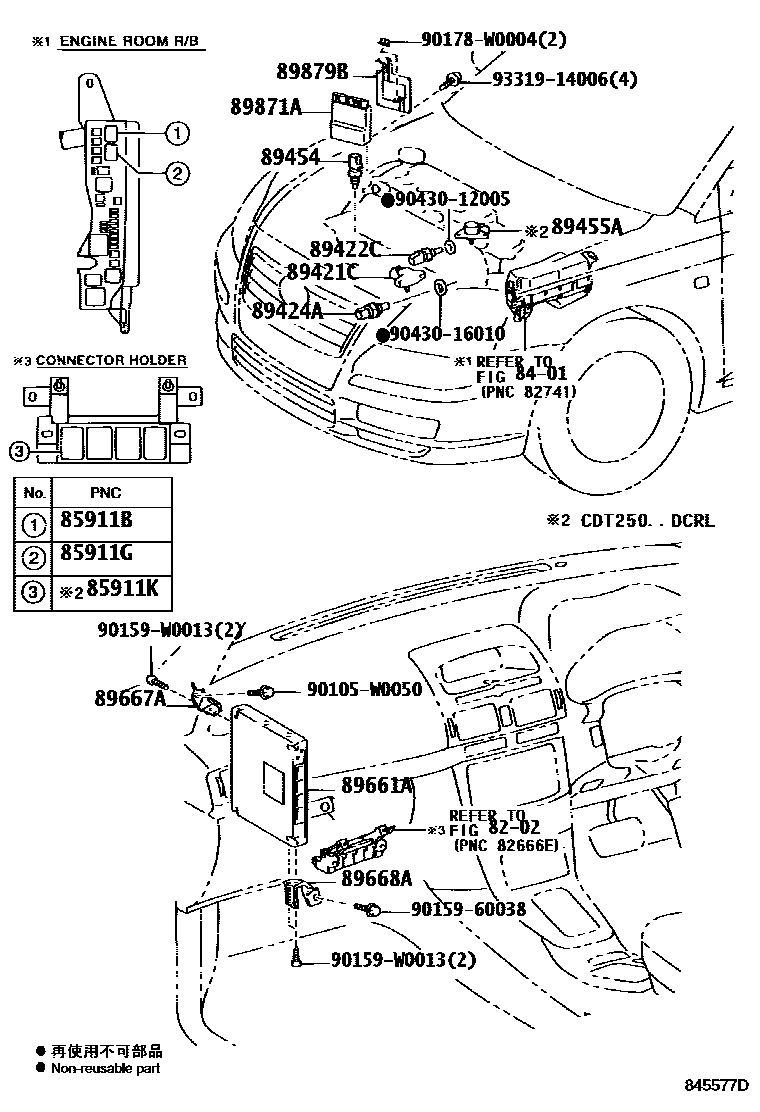

ELECTRONIC CONTROLED DIESEL (ECD)
8202
8401
85911BRELAY, COMPUTER (FOR DIESEL TURBO)
sub90080-87021
85911GRELAY, INJECTOR DRIVER
sub90080-87021
85911KRELAY, HEATER(FOR AIR FUEL RATIO SENSOR)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89455ASENSOR, EGR VALVE POSITION
89661ACOMPUTER, ENGINE CONTROL
sub89661-05692
sub89661-05833
sub89661-05833
CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)
CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)
CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)
CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
TAXI PACKAGE
TAXI PACKAGE
TAXI PACKAGE
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
NO.1
NO.1
NO.2
90105W0050
main90105-W0050
9015960038
main90159-60038
90159W0013
main90159-W0013
90178W0004
main90178-W0004
9043012005
main90430-12005
9043016010
main90430-16010
9331914006
main93319-14006
22 parts on this diagram · 4 diagrams in section
