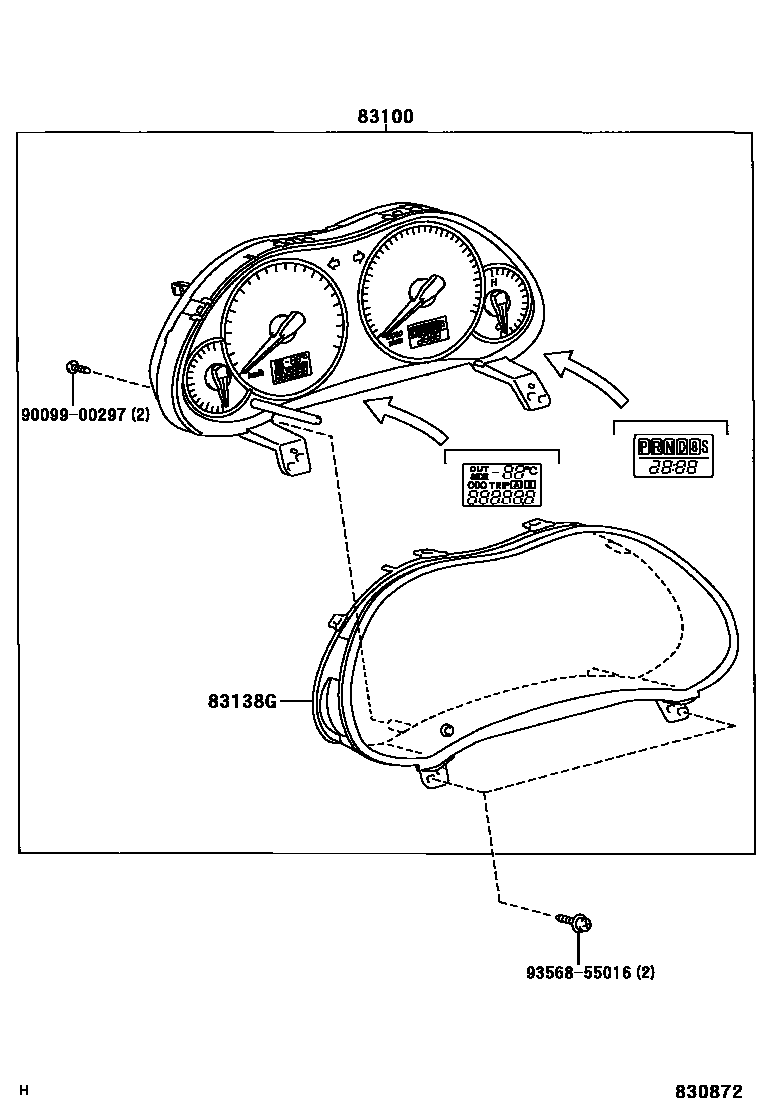

METER

83100METER ASSY, COMBINATION

main83800-05530supersedes 83800-05550i200301-200402

SPEEDOMETER-240K/H

sub83800-05D70

main83800-05531supersedes 83800-05711i200402-200503

MULTI INFORMATION DISPLAY-WITH(SEPARATE METER & MULTI DISPLAY)

sub83800-05D80

main83800-05532supersedes 83800-05712i200503-200510

SPEEDOMETER-240K/H

main83800-05533i200511-200604

SPEEDOMETER-240K/H

main83800-05540supersedes 83800-05560i200301-200402

SPEEDOMETER-240K/H

sub83800-05D90

main83800-05541supersedes 83800-05561i200402-200503

SPEEDOMETER-240K/H

sub83800-05E00

main83800-05542supersedes 83800-05562i200503-200510

SPEEDOMETER-240K/H

main83800-05543i200511-200604

SPEEDOMETER-240K/H

main83800-05570supersedes 83800-05590i200301-200503

SPEEDOMETER-240K/H

sub83800-05E50

main83800-05571supersedes 83800-05591i200503-200510

SPEEDOMETER-240K/H

main83800-05572supersedes 83800-05592i200511-200604

SPEEDOMETER-240K/H

main83800-05580supersedes 83800-05600i200301-200503

SPEEDOMETER-240K/H

sub83800-05E60

main83800-05581supersedes 83800-05601i200503-200510

SPEEDOMETER-240K/H

main83800-05582supersedes 83800-05602i200511-200604

SPEEDOMETER-240K/H

main83800-05610supersedes 83800-05620i200309-200503

SPEEDOMETER-240K/H

sub83800-05E90

main83800-05611supersedes 83800-05621i200503-200508

SPEEDOMETER-240K/H

main83800-05612supersedes 83800-05622i200509-200604

SPEEDOMETER-240K/H

main83800-05630supersedes 83800-05640i200303-200503

MULTI INFORMATION DISPLAY-WITH(SEPARATE METER & MULTI DISPLAY)

sub83800-05F10

main83800-05631supersedes 83800-05641i200503-200508

SPEEDOMETER-240K/H

main83800-05632supersedes 83800-05642i200509-200604

SPEEDOMETER-240K/H

main83800-05770i200301-200508

main83800-05771i200509-200604

main83800-05780i200301-200508

main83800-05781i200509-200604

main83800-05830supersedes 83800-05840i200309-200411

SPEEDOMETER-240K/H

sub83800-05F30

main83800-05850i200504-200509

SPEEDOMETER-240K/H

main83800-05851supersedes 83800-05860i200510-200604

SPEEDOMETER-240K/H

main83800-05A30supersedes 83800-05A40i200604

SPEEDOMETER-240K/H W/MID

main83800-05A50supersedes 83800-05J30i200604

SPEEDOMETER-240K/H W/MID

main83800-05A70supersedes 83800-05A80i200604

SPEEDOMETER-240K/H W/MID

main83800-05A90supersedes 83800-05B00i200604

SPEEDOMETER-240K/H W/MID

main83800-05B10supersedes 83800-05B20i200604

SPEEDOMETER-240K/H W/MID

main83800-05B50i200604

main83800-05B70i200604

main83800-05C00supersedes 83800-05B30i200604

SPEEDOMETER-240K/H W/MID

83138GGLASS, COMBINATION METER

main83852-05530i200509-200604

MULTI INFORMATION DISPLAY-WITH(SEPARATE METER & MULTI DISPLAY)

9009900297

main90099-00297

9356855016

main93568-55016

4 parts on this diagram · 1 diagram in section
