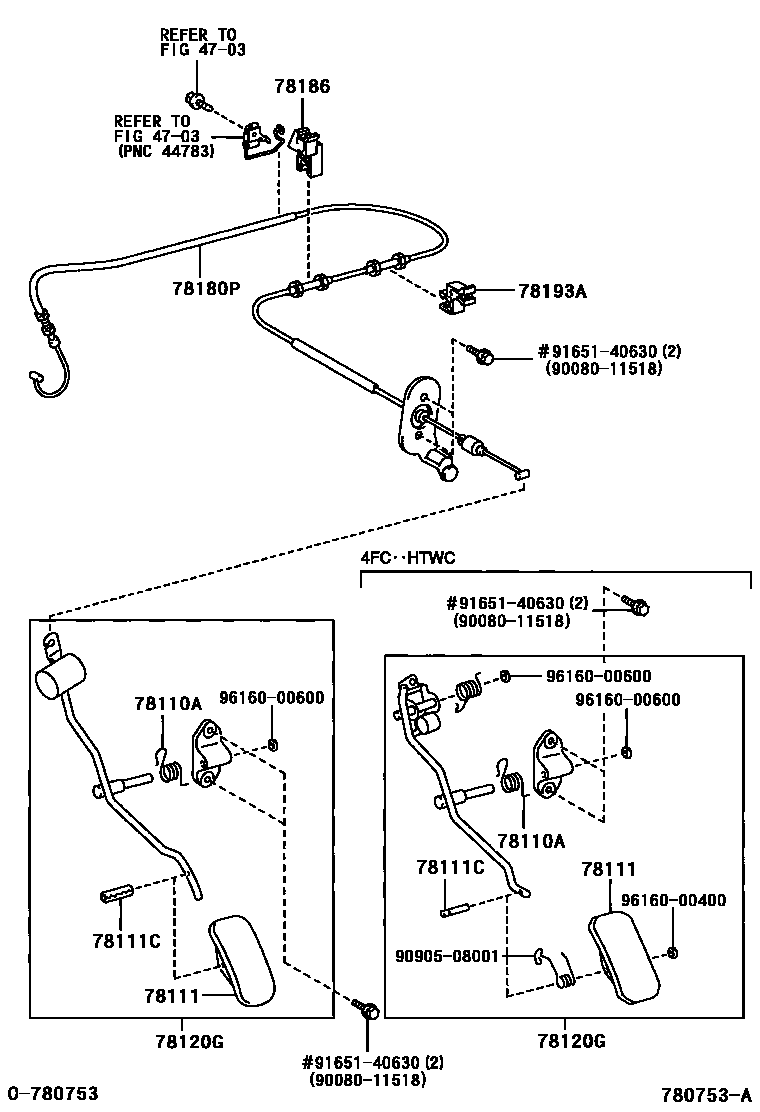

ACCELERATOR LINK

0001 1 0002 1 0004 1 0006 1 0007 1

4703

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26036iZZT25#..LHD200301-200402

main90959-03307iZZT25#..RHD200301-200402

78111PEDAL, ACCELERATOR

main78111-05040iZZT25#..RHD200301-200402

main78111-05050iZZT25#..LHD..5F200301-200402

main78111-32010iAZT250..4FC..HTWC200301-200604

main78111-32020iADT25#,AZT25#,ZZT25#..RHD200604

main78111-35030iADT251,AZT25#,CDT250..LHD..(D4,DCR,DCRL)200301-200604

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAZT250..4FC..HTWC200604

main90254-04019iZZT251..RHD;AZT250..4FC..D4;ZZT251..LHD..5F;ADT251,AZT25#,CDT250,ZZT250..5F,5FC,6F200301-200604

78120GROD ASSY, ACCELERATOR PEDAL

main78120-05190iZZT250..RHD200301-200402

main78120-05200iAZT250..5F..HTWC200301-200604

main78120-05210iZZT251..RHD200301-200402

main78120-05220iZZT251..LHD..5F200301-200402

main78120-13030iAZT250..4FC..HTWC200604

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-02250iZZT250..LHD200301-200402

main78180-05090iZZT251..RHD200301-200402

main78180-05270iZZT251..LHD200301-200402

main78180-05280iAZT250..HTWC200301-200309

main78180-05290iZZT250..RHD200301-200402

main78180-20A10iAZT250..HTWC200309-200604

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-05040iAZT250..HTWC200604

main78186-20180iZZT25#..RHD200301-200402

main78186-20190iZZT25#..LHD200301-200402

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-05020iAZT250..HTWC200604

9008011518

main90080-11518

9090508001

main90905-08001

9165140630

main91651-40630

9616000400

main96160-00400

9616000600

main96160-00600

13 parts on this diagram · 5 diagrams in section
