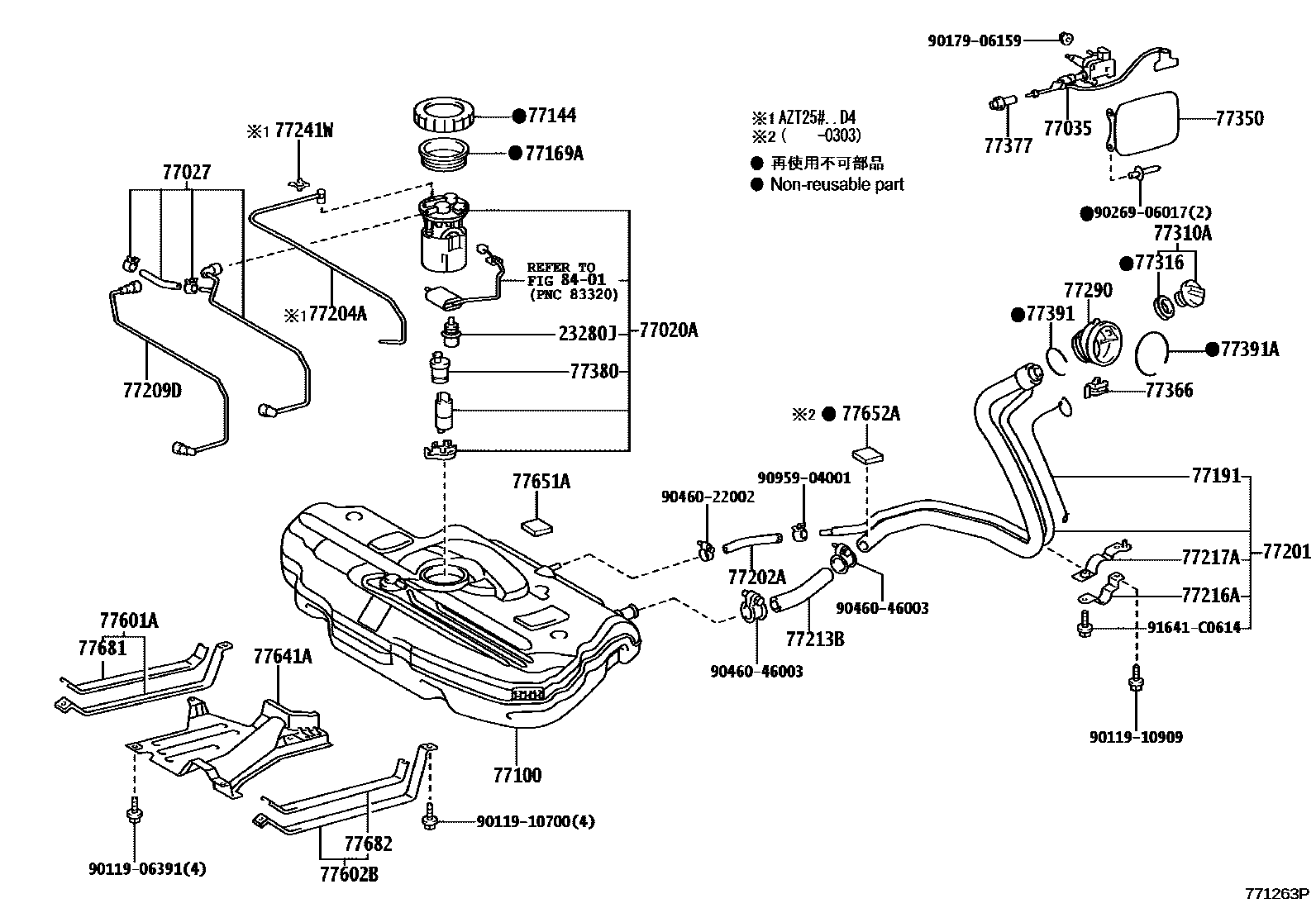

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-0H010i1AZFSE,2AZFSE..AZT25#200301-200604

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02070iZZT25#200301-200604

sub77020-02071

main77020-02080iZZT250..LHD..SED..ENTRY200301-200604

LATIN AMERICA SPEC

sub77020-02081

main77020-02080iAZT250..HTWC200301-200604

CIS W/O WEST RUSSIA

sub77020-02081

main77020-02080iAZT250..HTWC200604-200612

CIS W/O WEST RUSSIA SPEC

sub77020-02081

main77020-02081iZZT250..LHD..SED..ENTRY200701

CIS W/O WEST RUSSIA SPEC

sub77020-02082

main77020-05110iAZT250..D4200301-200612

sub77020-05111

main77020-05111iAZT250..D4200701

sub77020-05112

main77020-05120iAZT251200309-200604

sub77020-05121

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-05010iAZT25#,ZZT25#200301-200604

main77027-05020iADT25#200303-200604

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-05010iAZT250..SED;ZZT251..TEC;AZT251,ZZT250;ZZT251..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D200301-200505

sub77030-05011

main77030-05011iADT251,AZT25#,CDT250,ZZT25#200505-200604

77100TANK ASSY, FUEL

main77001-05040iADT251,AZT25#,CDT250,ZZT25#200301-200604

77144RETAINER, FUEL PUMP GAUGE

main77144-02030iADT251,AZT25#,CDT250,ZZT25#200301-200604

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02030iADT251,AZT25#,CDT250,ZZT25#200301-200604

77191WIRE, FUEL TANK EARTH

main77191-02020iAZT25#,ZZT25#200301-200604

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-05070iAZT25#,ZZT25#200301-200807

sub77201-05071

main77201-05071iAZT25#,ZZT25#200808

main77201-05080iADT251;CDT250..TEC..DCRL;CDT250..RHD..ELEGT;CDT250..RHD..WG..TEC;CDT250..LHD..ELEGT..DCRL200303-200807

sub77201-05081

main77201-05081iADT25#200808

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-02040iCDT250..LHD..ELEGT..DCR;CDT250..(ENTRY,TEC)..DCR200303-200604

L=160

main77259-02040iCDT250..LHD..ELEGT..DCR;CDT250..(ENTRY,TEC)..DCR200303-200604

L=160,GREECE SPEC

main77259-02050iAZT25#,ZZT25#200301-200604

77204ATUBE, FUEL TANK RETURN

main77204-02040iADT251,CDT250200303-200604

main77204-05040iAZT25#..D4200301-200511

main77204-05041iADT25#,AZT25#..D4,DCR,DCRL200511-200604

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02050iADT251,AZT25#,CDT250,ZZT25#200301-200604

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-02070iADT25#..LHD..DCR200503-200604

GREECE SPEC

main77213-02070iADT251,AZT25#,ZZT25#;CDT250..RHD..WG..TEC200301-200604

main77213-02080iCDT250200303-200502

GREECE SPEC

sub77213-02070

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02060iADT251,AZT25#,CDT250,ZZT25#200301-200604

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02030iADT251,AZT25#,CDT250,ZZT25#200301-200604

77241WCLIP, TUBE JOINT

main77241-32060iADT25#,AZT25#..D4,DCR,DCRL200301-200604

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

77310ACAP ASSY, FUEL TANK

main77300-28010iAZT25#,ZZT25#200301-200604

main77300-60010iADT251,CDT250200303-200604

77316GASKET, FUEL TANK CAP

main77316-16010iADT251,AZT25#,CDT250,ZZT25#200301-200604

77350LID ASSY, FUEL FILLER OPENING

main77350-05010iADT251,AZT25#,CDT250,ZZT25#..LB,SED200301-200604

main77350-05020iADT25#,AZT25#,ZZT25#..WG200301-200604

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-05020iADT25#,AZT25#,ZZT25#200301-200604

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

77380VALVE ASSY, FUEL CUT OFF

main77380-12020iAZT25#,ZZT25#200301-200604

77391RING, FUEL INLET BOX

main77391-12020iADT251,AZT25#,CDT250,ZZT25#200301-200604

77391ARING, FUEL INLET BOX

main77391-12040iADT25#,AZT25#,ZZT25#200301-200604

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-02060iADT251,AZT250,CDT250,ZZT25#200301-200604

main77601-05040iAZT251200309-200604

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02070iADT251,AZT25#,CDT250,ZZT25#200301-200604

77641APROTECTOR, FUEL TANK, NO.1

main77641-02010iADT251,AZT25#,CDT250,ZZT25#200301-200604

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iADT251,AZT25#,CDT250,ZZT25#200301-200604

77652ACUSHION, FUEL TANK, NO.2

main77651-12070iAZT250,ZZT25#200301-200303

77681SEAT, FUEL TANK BAND, RH

main77681-02040iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub77681-05020

77682SEAT, FUEL TANK BAND, LH

main77681-02020iADT251,AZT25#,CDT250,ZZT25#200301-200604

8401

9011906391

main90119-06391

9011910700

main90119-10700

9011910909

main90119-10909

9017906159

main90179-06159

9026906017

main90269-06017

9046022002

main90460-22002

9046046003

main90460-46003

9095904001

main90959-04001

91641C0614

main91641-C0614

42 parts on this diagram · 6 diagrams in section
