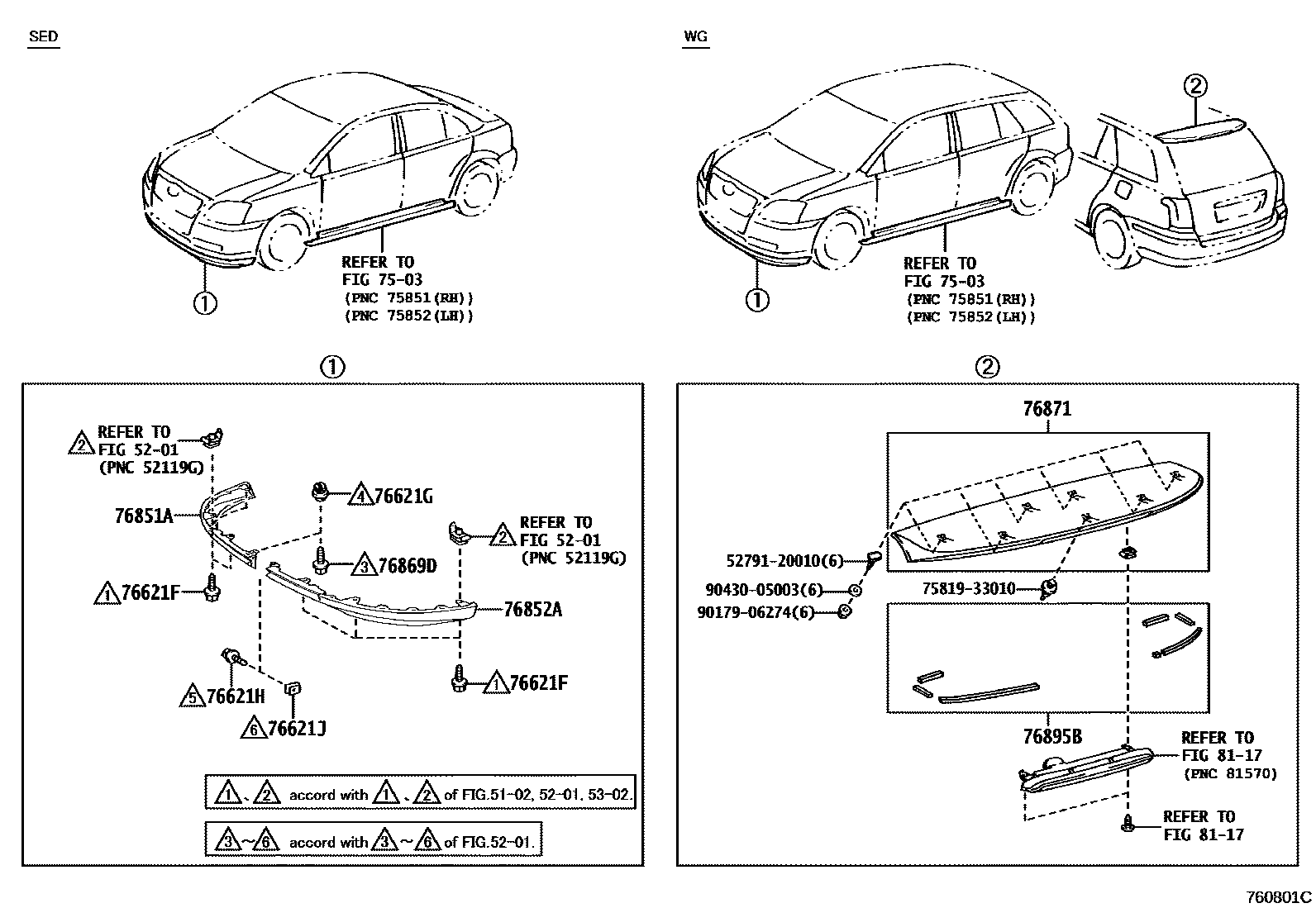

MUDGUARD & SPOILER

5201

7503

76621FSCREW, NO.1

main90159-60488iADT251,AZT25#,CDT250,ZZT25#200301-200811

76621GGROMMET, NO.1

main90189-05144iADT251,AZT25#,CDT250,ZZT25#200301-200811

76621HBOLT, NO.1

main90119-06451iADT251,AZT25#,CDT250,ZZT25#200301-200811

76621JNUT, NO.1

main90179-06127iADT251,AZT25#,CDT250,ZZT25#200301-200811

76851ACOVER, FRONT SPOILER, RH

main76851-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

main76851-05020iADT25#,AZT25#,ZZT25#200604-200811

76852ACOVER, FRONT SPOILER, LH

main76852-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

main76852-05020iADT25#,AZT25#,ZZT25#200604-200811

76869DSCREW, NO.2

main90159-60488iADT251,AZT25#,CDT250,ZZT25#200301-200811

76871SPOILER, REAR

main76871-05902iADT251,AZT25#,CDT250,ZZT25#..WG200301-200802

PAINT REQ.

sub76871-05904

main76871-05904iADT25#,AZT25#,ZZT25#..WG200802-200811

PAINT REQ.

sub76871-05910

76895BPROTECTOR SET, REAR SPOILER

main76895-05900iADT251,AZT25#,CDT250,ZZT25#..WG200301-200811

8117

5279120010BOLT, BUMPER MOULDING SET, NO.1

main52791-20010

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010

9017906274

main90179-06274

9043005003

main90430-05003

16 parts on this diagram · 1 diagram in section
