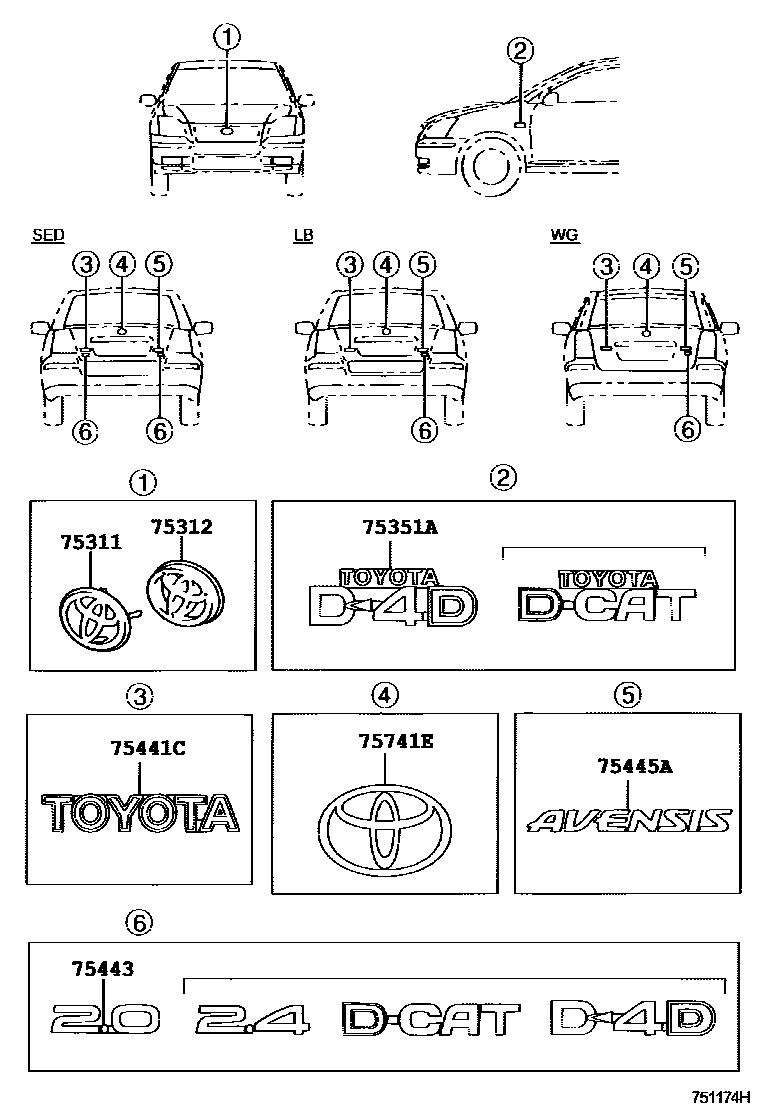

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

75312BASE, RADIATOR GRILLE EMBLEM

main75312-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

75351AEMBLEM, FRONT FENDER

main75351-02040iCDT250200303-200503

main75351-20060iADT251..DCRL200504-200604

75441CPLATE, BACK DOOR NAME

main75441-05050iADT251,AZT25#,CDT250,ZZT25#..SED,WG200301-200604

TOYOTA

main75441-05060iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

TOYOTA

75443PLATE, BACK DOOR NAME, NO.3

main75443-05090iAZT250,CDT250..D4,DCR,HTWC200301-200503

2.0

main75443-05100iAZT251200309-200503

2.4

main75443-20670iCDT250..DCRL200309-200411

D-CAT

main75447-02010iADT25#200503-200604

D-4D

75445APLATE, BACK DOOR NAME, NO.5

main75445-05080iADT25#,AZT25#,ZZT25#..SED,WG200301-200604

AVENSIS

main75445-05100iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

AVENSIS

75741EEMBLEM, SYMBOL

main75431-05050iADT251,AZT25#,CDT250,ZZT25#200301-200604

7 parts on this diagram · 2 diagrams in section
