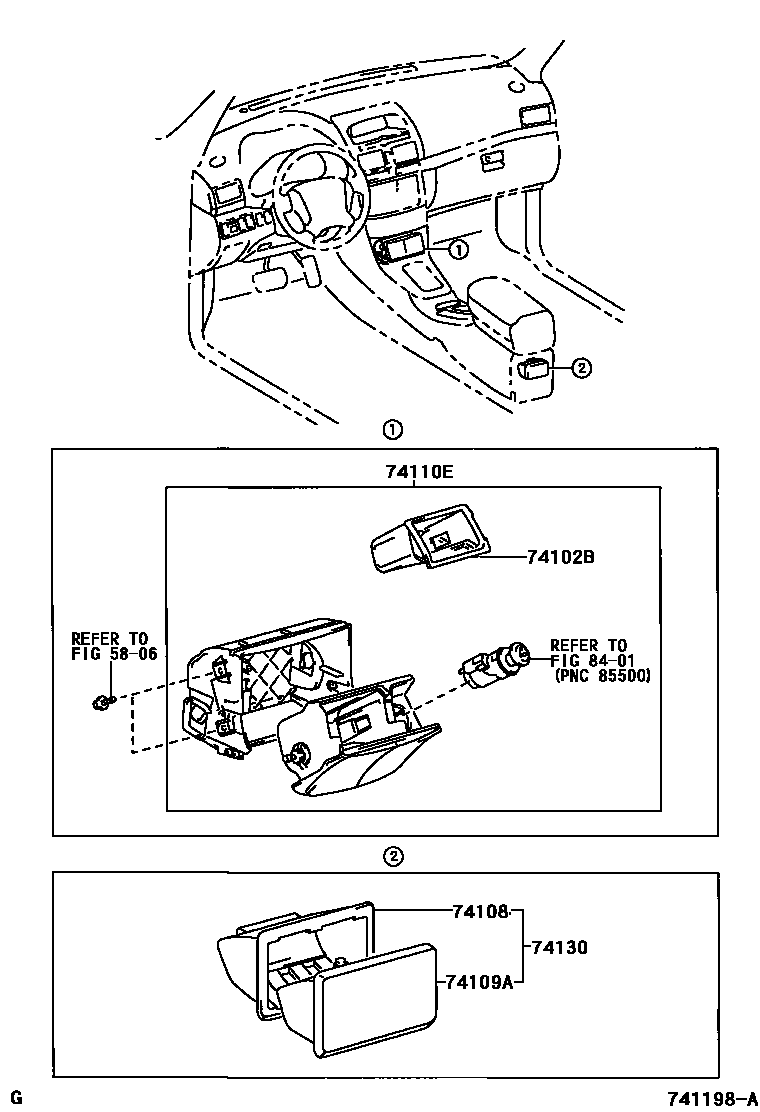

ASH RECEPTACLE

5806

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-05060iAZT25#,CDT250,ZZT25#200301-200604

sub74102-05061

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02010iCDT250..DCRL200301-200604

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-05020-A0iCDT250..ELEGT..DCRL200301-200604

IVORY,TRIM0#

main74109-05020-B0iCDT250..DCR;ADT251,AZT25#,ZZT25#200301-200604

DK.GRAY,TRIM1#

main74109-05020-E0iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

74110ERECEPTACLE ASSY, FRONT ASH

main74110-05020iAZT25#,CDT250,ZZT25#..ELEGT,ENTRY200301-200408

sub74110-05021

main74110-05021iAZT250..SED;ADT251,ZZT250..TEC;AZT250..LHD..(LB,WG);ADT250,AZT251,ZZT251..LHD..TEC200604

LEATHER & POWER SEAT,ELEGANT

main74110-05021iADT251,AZT25#,CDT250,ZZT25#..ELEGT,ENTRY200408-200604

main74110-05021iAZT250..SED;ADT251,ZZT250..TEC;AZT250..LHD..(LB,WG);ADT250,AZT251,ZZT251..LHD..TEC200604

FABRIC & MANUAL SEAT,ELEGANT

main74110-05030iAZT25#,CDT250,ZZT25#..TEC200301-200408

sub74110-05031

main74110-05031iADT251,AZT25#,CDT250,ZZT25#..TEC200408-200604

main74110-05050iAZT251..LHD;ADT25#,AZT250,ZZT25#..PAG,TEC200604

74130RECEPTACLE ASSY, REAR ASH

main74130-05020-A0iCDT250..ELEGT..DCRL200301-200604

IVORY,TRIM0#

main74130-05020-B0iADT25#,AZT25#,ZZT25#200301-200604

DK.GRAY,TRIM1#

main74130-05020-E0iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

8401

7 parts on this diagram · 1 diagram in section
