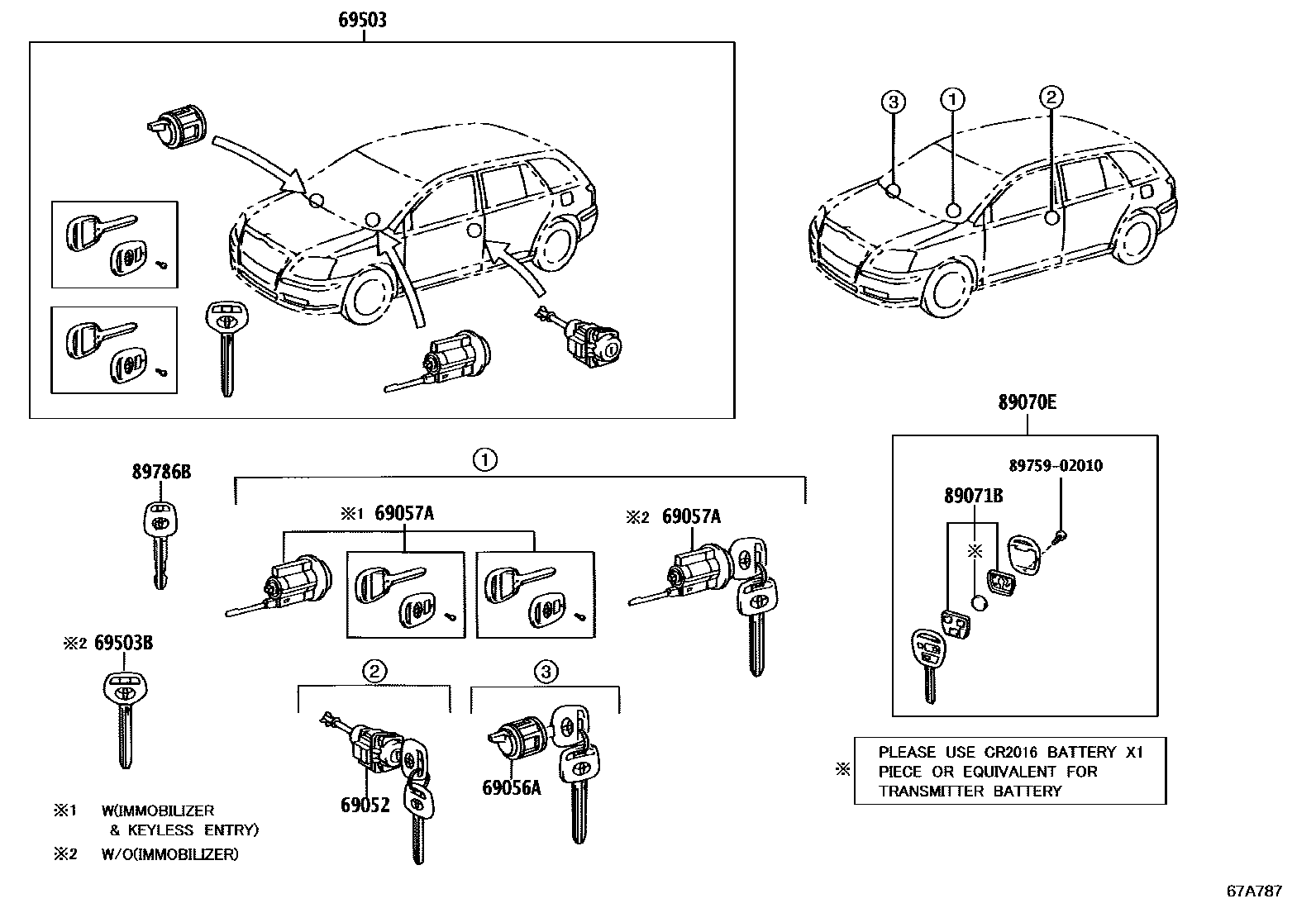

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-05040iADT251,AZT25#,CDT250,ZZT25#..LHD¥4,010200301-200604

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-02010iADT251,AZT25#,CDT250,ZZT25#¥4,760200301-200604

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-05070iAZT250..HTWC¥7,100200301-200612

sub69057-05071

main69057-05071iAZT250..HTWC200701

main89073-05070iZZT25#;ADT25#,AZT25#..D4,DCR,DCRL200301-200612

ANTI-THEFT SYSTEM-IMMOBI

sub89073-05071

main89073-05071iZZT25#;ADT25#,AZT25#..D4,DCR,DCRL200701

ANTI-THEFT SYSTEM-IMMOBI

69503CYLINDER SET, LOCK

main89073-05080iZZT25#..LHD..SED;ADT25#,AZT25#..LHD..SED..(D4,DCR,DCRL)200301-200612

ANTI-THEFT SYSTEM-IMMOBI

sub89073-05081

main89073-05081iAZT250..HTWC200701

ANTI-THEFT SYSTEM-IMMOBI

main89073-05090iADT25#,AZT25#,ZZT25#..RHD..SED200301-200612

sub89073-05091

main89073-05091iADT25#,AZT25#,ZZT25#..RHD..SED200701

main89073-05100iAZT250..HTWC200301-200612

sub89073-05101

main89073-05101iAZT250..HTWC200701

main89073-05110iZZT25#..LHD..(LB,WG);ADT251,AZT25#,CDT250..LHD..(LB,WG)..(D4,DCR,DCRL)200301-200612

sub89073-05111

main89073-05111iADT25#,AZT25#,ZZT25#..LHD..(LB,WG)200701

main89073-05120iADT25#,AZT25#,ZZT25#..RHD..(LB,WG)200301-200612

sub89073-05121

main89073-05121iADT25#,AZT25#,ZZT25#..RHD..(LB,WG)200701

main89073-05130iAZT250..WG..HTWC200301-200411

69503BKEY, CUT

main69516-05010iAZT250..HTWC200301-200606

SUB KEY(VALEO)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-05020iADT251,AZT25#,CDT250,ZZT25#¥16,000200301-200604

BLANK KEY

main89070-05030iADT25#,AZT25#,ZZT25#200301-200604

CUT KEY

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-05010iADT25#,AZT25#,ZZT25#200301-200604

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-05060iAZT250..HTWC¥3,720200301-200604

BLANK KEY

main89786-05060iAZT250..HTWC¥3,720200301-200604

ANTI-THEFT SYSTEM-IMMOBI,BLANK KEY

main89786-05070iAZT250..HTWC¥3,720200301-200604

ANTI-THEFT SYSTEM-IMMOBI,CUT KEY

main89786-05070iZZT25#;ADT251,AZT25#,CDT250..D4,DCR,DCRL¥3,720200301-200604

CUT KEY

8975902010SCREW, DOOR CONTROL TRANSMITTER

main89759-02010¥160

9 parts on this diagram · 4 diagrams in section
