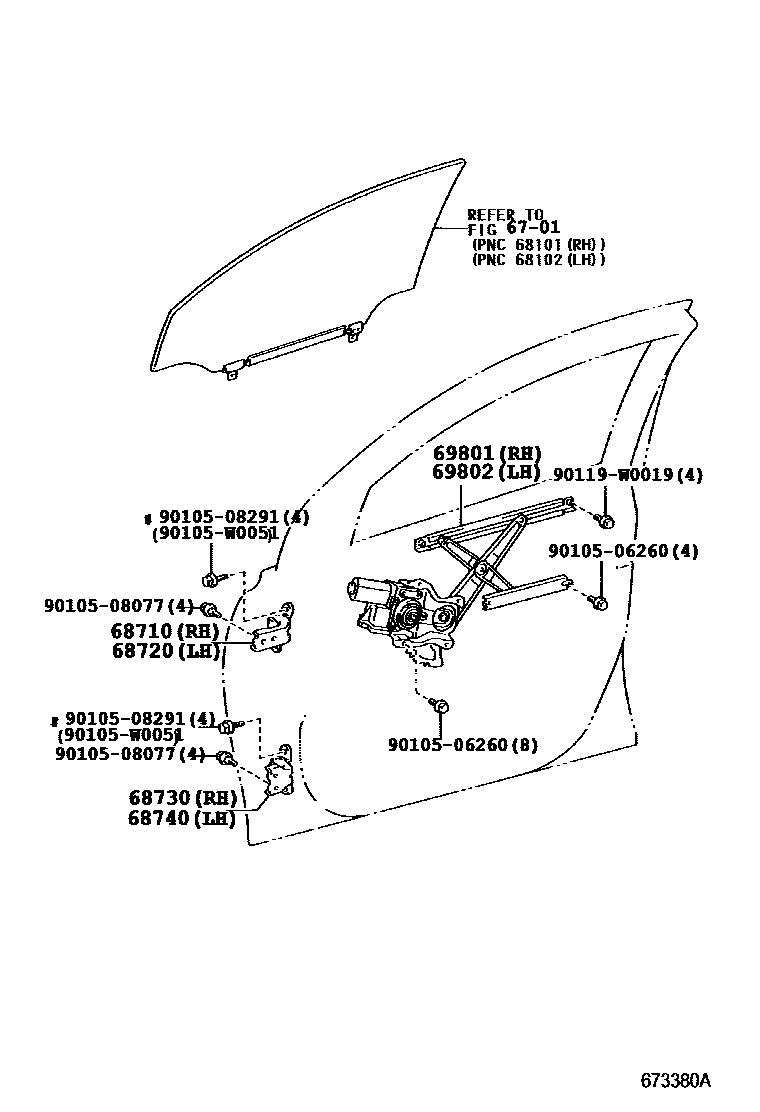

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D010iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub68710-52010

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D010iADT251,AZT25#,CDT250,ZZT25#200301-200604

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D010iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub68730-52010

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D010iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub68740-52010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-05050iADT251,AZT25#,CDT250,ZZT25#200301-200604

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-05050iADT251,AZT25#,CDT250,ZZT25#200301-200604

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

90105W0051

main90105-W0051

90119W0019

main90119-W0019

12 parts on this diagram · 1 diagram in section
