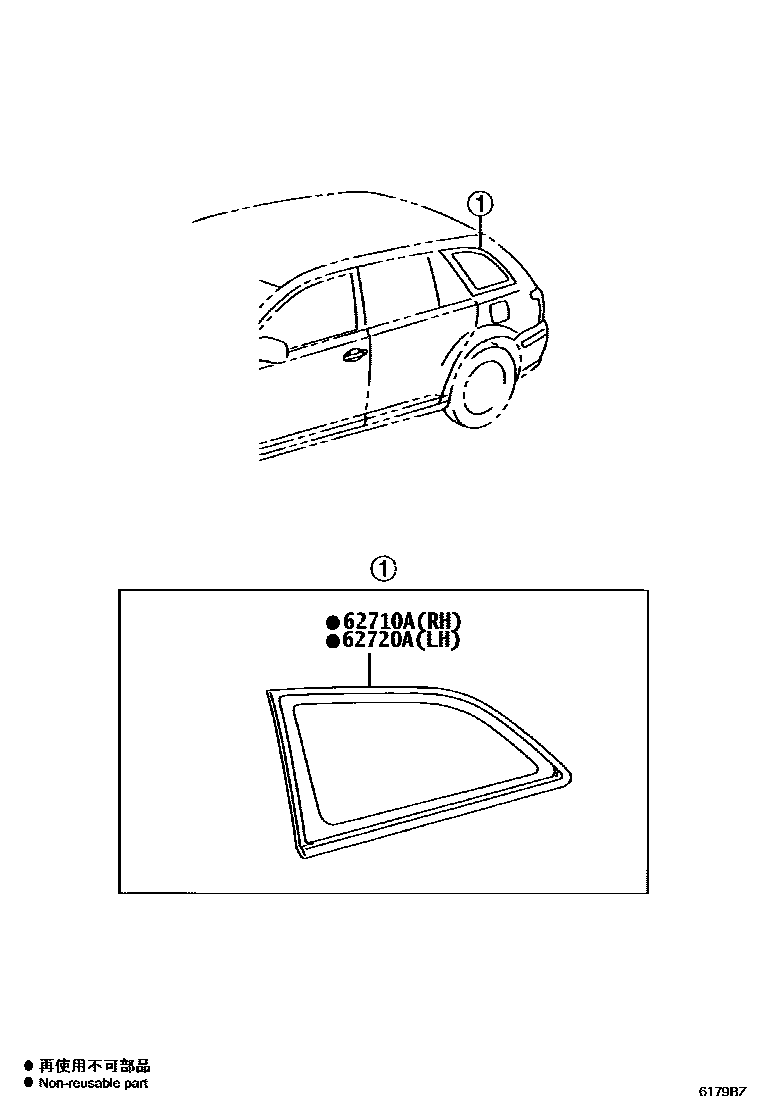

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-05100iADT25#,AZT25#,ZZT25#..WG200604

*TT,T=3.1,GREEN

main62710-05110iADT25#,AZT25#,ZZT251..LHD..WG..(PAG,TEC)200604

*TT,T=3.1,DK.GRAY,REAR SIDE GLASS-PRIVACY

62720AWINDOW ASSY, QUARTER, LH

main62720-05100iADT25#,AZT25#,ZZT25#..WG200604

*TT,T=3.1,GREEN

main62720-05110iADT251..RHD..WG..DCRL200708

*TT,T=3.1,DK.GRAY,REAR SIDE GLASS-PRIVACY

2 parts on this diagram · 1 diagram in section
