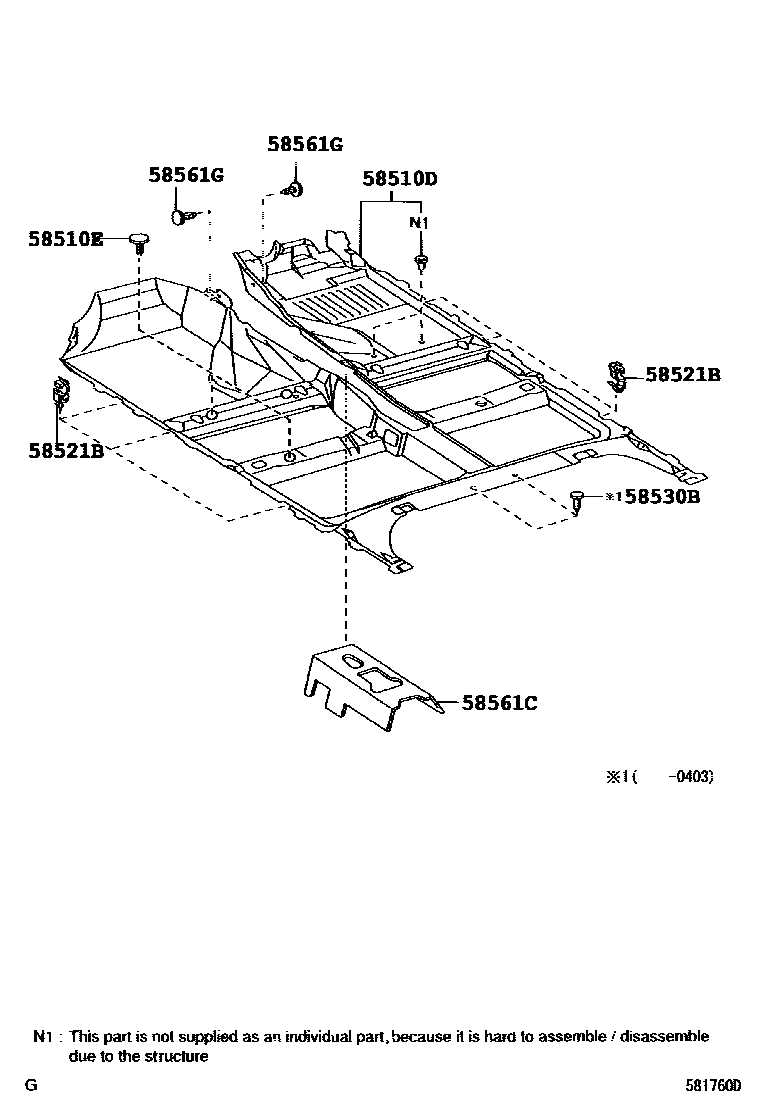

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-05170-A0iZZT251..RHD..SED..ELEGT200301-200305

IVORY,TRIM0#

main58510-05170-B0iZZT251..RHD..SED200301-200305

DK.GRAY,TRIM1#

main58510-05180-A0supersedes 58510-05170-A0iADT251,AZT25#..RHD..SED..ELEGT200301-200604

IVORY,TRIM0#

main58510-05180-B0supersedes 58510-05170-B0iZZT251..RHD..SED200305-200604

DK.GRAY,TRIM1#

main58510-05180-E0iADT25#,AZT25#..RHD..SED..(PAG,TEC)200604

GREGE,TRIM4#

main58510-05190-A0iZZT251..LHD..SED..5F..ELEGT200301-200305

IVORY,TRIM0#

main58510-05190-B0iZZT251..LHD..SED..5F200301-200305

DK.GRAY,TRIM1#

main58510-05190-E0iAZT250,ZZT250..5F..TEC..HTWC200604

GREGE,TRIM4#

main58510-05200-A0iZZT250..ELEGT200305-200604

IVORY,TRIM0#

main58510-05200-B0iZZT251..LHD..SED..5F;ADT25#,AZT250..LHD..SED..MTM..(D4,DCR,DCRL)200604

DK.GRAY,TRIM1#

main58510-05200-E0iZZT250..TEC200604

GREGE,TRIM4#

main58510-05210-A0iAZT250..SED..4FC..ELEGT..HTWC200301-200604

IVORY,TRIM0#

main58510-05210-B0iAZT250..SED..4FC..HTWC200301-200604

DK.GRAY,TRIM1#

main58510-05210-E0iAZT250..4FC..HTWC200604

GREGE,TRIM4#

main58510-05220-A0iAZT25#..LHD..SED..ATM..ELEGT..D4200301-200604

IVORY,TRIM0#

main58510-05220-B0iZZT251..LHD..SED..4FC200305-200604

DK.GRAY,TRIM1#

main58510-05220-E0iZZT251..LHD..SED..4FC;AZT25#..LHD..SED..ATM..D4200604

GREGE,TRIM4#

main58510-05230-A0iZZT251..RHD..(LB,WG)..ELEGT200301-200305

IVORY,TRIM0#

main58510-05230-B0iCDT250,ZZT250..RHD..(LB,WG)200301-200604

DK.GRAY,TRIM1#

main58510-05240-A0supersedes 58510-05230-A0iZZT251..RHD..(LB,WG)..ELEGT200305-200604

IVORY,TRIM0#

main58510-05240-B0supersedes 58510-05230-B0iADT25#,AZT25#,ZZT251..RHD..(LB,WG)200604

DK.GRAY,TRIM1#

main58510-05240-E0iADT25#,AZT25#..RHD..(LB,WG)..(PAG,TEC)200604

GREGE,TRIM4#

main58510-05250-A0iZZT251..LHD..(LB,WG)..5F..ELEGT200301-200305

IVORY,TRIM0#

main58510-05250-B0iZZT251..LHD..(LB,WG)..5F200301-200305

DK.GRAY,TRIM1#

main58510-05260-A0supersedes 58510-05250-A0iADT251,AZT250..LHD..(LB,WG)..MTM..ELEGT200301-200604

IVORY,TRIM0#

main58510-05260-B0supersedes 58510-05250-B0iADT25#,AZT250,ZZT251..LHD..(LB,WG)..MTM200604

DK.GRAY,TRIM1#

main58510-05260-E0iADT25#,AZT250,ZZT251..LHD..(LB,WG)..MTM..(PAG,TEC)200604

GREGE,TRIM4#

main58510-05270-A0iZZT251..LHD..(LB,WG)..4FC..ELEGT200301-200305

IVORY,TRIM0#

main58510-05270-B0iZZT251..LHD..(LB,WG)..4FC200301-200305

DK.GRAY,TRIM1#

main58510-05280-A0iAZT25#..LHD..(LB,WG)..ATM..ELEGT..D4200301-200604

IVORY,TRIM0#

main58510-05280-B0iAZT25#..LHD..(LB,WG)..ATM..D4200301-200604

DK.GRAY,TRIM1#

main58510-05280-E0iAZT25#,ZZT251..LHD..(LB,WG)..ATM200604

GREGE,TRIM4#

58510ERETAINER, FLOOR CARPET

main58512-05010-A0×2iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT200301-200604

IVORY,TRIM0#

main58512-05010-B0×2iADT25#,AZT25#,ZZT25#..RHD200604

DK.GRAY,TRIM1#

main58512-05010-E0×2iADT25#,AZT25#..RHD..(PAG,TEC)200604

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-05030×6iADT251,AZT25#,CDT250,ZZT25#200301-200604

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-A0×2iAZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY200301-200403

IVORY,TRIM0#

main90467-07049-B7×2iAZT25#,CDT250,ZZT25#200301-200403

DK.GRAY,TRIM1#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-05030iAZT25#,CDT250,ZZT25#200301-200310

main58561-05031iAZT25#,CDT250,ZZT25#200310-200407

main58561-05032iAZT250..WG..HTWC;CDT250..TEC..DCRL;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..200408-200503

main58561-05033iAZT25#,ZZT25#200604

main58561-05040iADT25#200604

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-06061-A0×2iAZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY200301-200604

IVORY,TRIM01

sub90467-06020

main90467-06061-B2×2iADT25#,AZT25#,ZZT25#200604

DK.GRAY,TRIM1#

sub90467-06020

main90467-06061-C0×2iCDT250..WG..ENTRY;CDT250..LHD..WG..TEC;ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);AZT25#,ZZT250..ENTRY,TEC;ZZT251..LHD..SED..5F..ENTRY;CDT250..(LB,SED)..(ENTRY,200301-200604

BLACK,TRIM16

sub90467-06020

main90467-06061-E3×2iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

sub90467-06020

6 parts on this diagram · 2 diagrams in section
