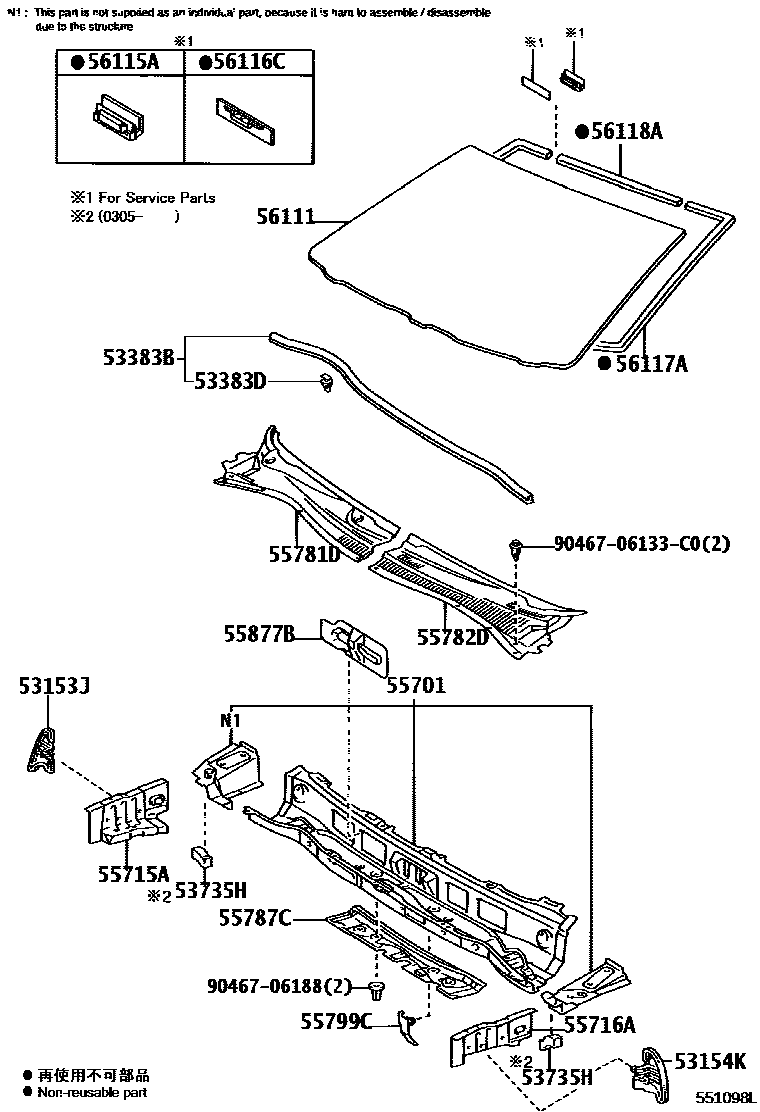

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53153JGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-20010iADT25#,AZT25#,ZZT25#200604

53154KGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-20010iADT251,AZT25#,CDT250,ZZT25#200412-200604

53383BSEAL, HOOD TO COWL TOP

main53383-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8iADT251,AZT25#,CDT250,ZZT25#200301-200604

53735HSEAL, FRONT FENDER APRON, UPPER

main53735-05010×2iADT25#,AZT25#,ZZT25#200604

55701PANEL SUB-ASSY, COWL

main55700-05100iADT25#,AZT25#,ZZT25#..RHD200604

main55700-05220iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200507

main55700-05230iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200507

main55700-05240iADT251,AZT25#,CDT250,ZZT25#..LHD200508-200604

55715ABRACE, COWL TOP TO APRON, RH

main55715-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

55716ABRACE, COWL TOP TO APRON, LH

main55716-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-05060iAZT250,CDT250,ZZT25#..LHD200301-200305

main55781-05061iADT251,AZT25#,CDT250,ZZT25#..LHD200305-200604

main55781-05080iAZT250,CDT250,ZZT25#..RHD200301-200305

main55781-05081iADT25#,AZT25#,ZZT25#..RHD200604

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-05040iAZT250,CDT250,ZZT25#..LHD200301-200305

main55782-05041iADT25#,AZT25#,ZZT25#..LHD200604

main55782-05060iAZT250,CDT250,ZZT25#..RHD200301-200305

main55782-05061iADT25#,AZT25#,ZZT25#..RHD200604

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-05040iZZT25#;ADT25#,AZT25#..D4,DCR,DCRL200604-200801

main55787-05041iZZT25#;ADT25#,AZT25#..D4,DCR,DCRL200802

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-05010iZZT25#;ADT25#,AZT25#..D4,DCR,DCRL200604

55877BCOVER, COWL VENT, RH

main55877-20060iADT25#,AZT25#,ZZT25#..RHD200604

56111GLASS, WINDSHIELD

main56101-05100iCDT250,ZZT25#..RHD..ENTRY200301-200503

*LAM,T=4.96,GREEN

main56101-05101iZZT25#..ENTRY200604

*LAM,T=4.96,GREEN,ISRAEL PACKAGE

main56101-05120iAZT251..RHD;AZT250..RHD..SED;AZT250..RHD..(LB,WG)..TEC;CDT250,ZZT251..RHD..TEC..(DCR,HTWC)200301-200503

*LAM,T=4.96,GREEN

main56101-05121iAZT25#,CDT250,ZZT25#..ELEGT,TEC200504-200604

*LAM,T=4.96,GREEN

main56101-05181iADT25#..ENTRY200604

*LAM,T=4.96,GREEN

main56101-05201iADT251..ELEGT,TEC200504-200604

*LAM,T=4.96,GREEN

main56101-05260iADT25#..PAG,TEC200604

*LAM,T=4.96,GREEN

main56101-05280iAZT25#,ZZT25#..TEC200604

*LAM,T=4.96,GREEN

main56101-05110supersedes 56101-05150iAZT250..LHD..SED..4FC..D4200604

*EHL,T=4.96,GREEN,WITH(SEAT HEATER)&ISRAEL PACKAGE

main56101-05130supersedes 56101-05160iAZT25#,CDT250,ZZT25#..LHD..(ELEGT,TEC)200301-200604

*EHL,T=4.96,GREEN,W(FRONT SEAT HEATER)

main56101-05190iADT250..LHD..ENTRY200605

*EHL,T=4.96,GREEN,WITH(SEAT HEATER)

main56101-05210iADT251..LHD..(ELEGT,TEC)200504-200604

*EHL,T=4.96,GREEN,W(FRONT SEAT HEATER)

main56101-05270iADT25#..LHD..(PAG,TEC)200604

*EHL,T=4.96,GREEN,WITH(SEAT HEATER)

main56101-05290iAZT25#,ZZT25#..LHD..TEC200604

*EHL,T=4.96,GREEN,WITH(SEAT HEATER)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iAZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC);AZT251,CDT250,ZZT250..LHD..(D4,DCR,HTWC)200301-200604

W(FRONT SEAT HEATER)

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iAZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC);AZT251,CDT250,ZZT250..LHD..(D4,DCR,HTWC)200301-200604

W(FRONT SEAT HEATER)

56117ADAM, WINDOW GLASS ADHESIVE

main56117-20270iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200604

L=3422,W(FRONT SEAT HEATER)

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-20090iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200604

L=654,W(FRONT SEAT HEATER)

sub56117-52040

9046706133C0

main90467-06133C0

9046706188

main90467-06188

20 parts on this diagram · 2 diagrams in section
