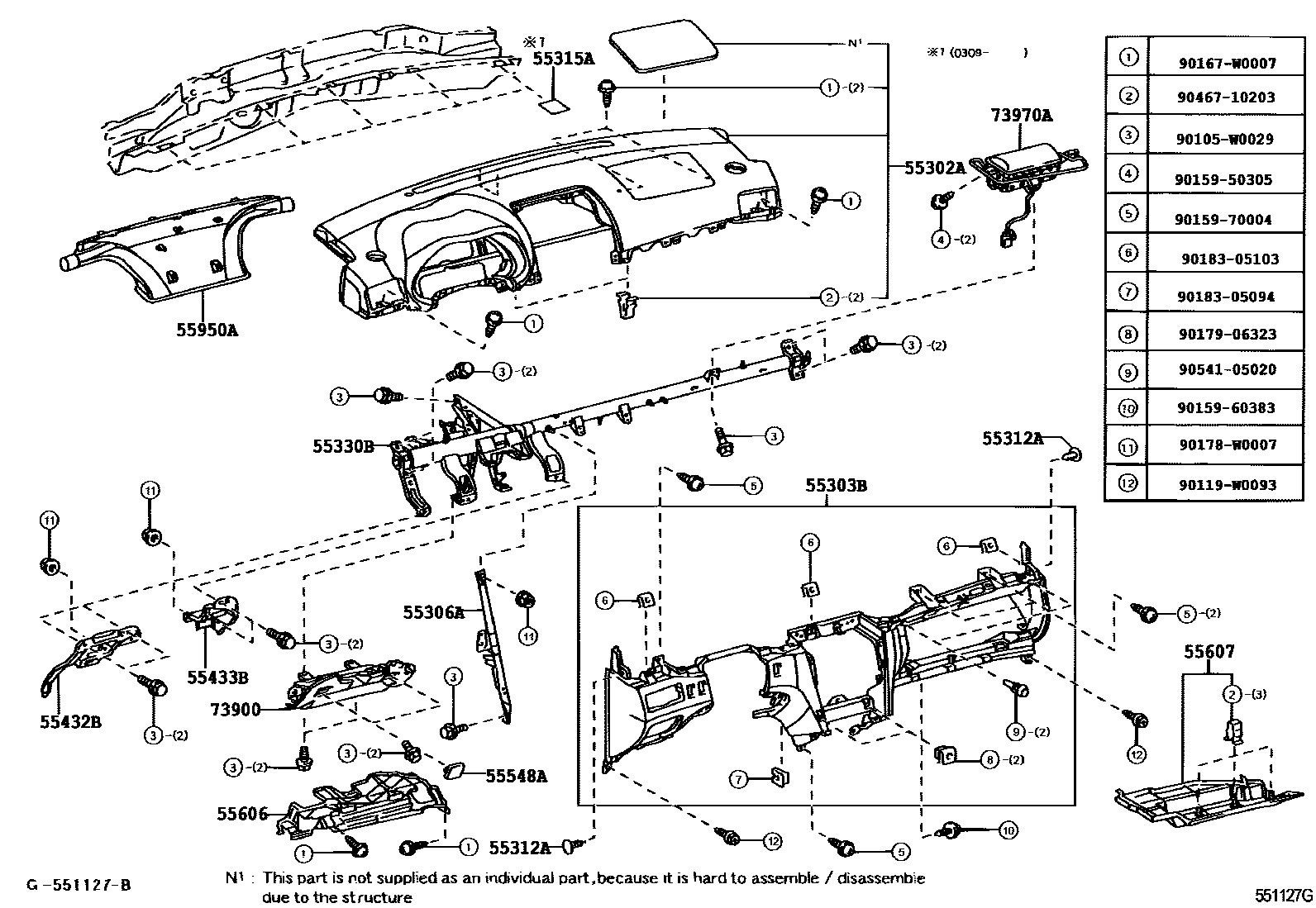

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1PASSENGER SIDE 0010 1PASSENGER SEAT

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-05010-B0iADT25#,AZT25#,ZZT25#..LHD..(PAG,TEC)200301-200707

DK.GRAY,TRIM1#

main55302-05010-B0iADT25#,AZT25#,ZZT25#..LHD..(PAG,TEC)200604-200707

DK.GRAY,TRIM1#,4#

main55302-05010-B0iCDT250..LHD..ELEGT..DCRL200301-200604

DK.GRAY,TRIM0#,1#

main55302-05011-B0iADT25#,AZT25#,ZZT25#..LHD..(PAG,TEC)200708

DK.GRAY,TRIM1#,4#

main55302-05011-B0iADT250,ZZT25#..LHD..ENTRY200708

DK.GRAY,TRIM1#

main55302-05020-B0iADT25#,AZT25#..RHD..(PAG,TEC)200604-200707

DK.GRAY,TRIM1#,4#

main55302-05020-B0iCDT250..RHD..ELEGT..DCRL200301-200604

DK.GRAY,TRIM0#,1#

main55302-05020-B0iCDT250..RHD..ELEGT..DCRL200301-200707

DK.GRAY,TRIM1#

main55302-05021-B0iZZT251..RHD;ADT25#,ZZT250..RHD..ENTRY200708

DK.GRAY,TRIM1#,4#

main55302-05021-B0iZZT251..RHD;ADT25#,ZZT250..RHD..ENTRY200708

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-05011-A0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..LHD..ELEGT200301-200604

IVORY,TRIM0#

main55303-05011-B0iADT25#,AZT25#,ZZT25#..LHD200301-200604

DK.GRAY,TRIM1#

main55303-05011-E0iADT25#,AZT25#,ZZT25#..LHD..(PAG,TEC)200604

GREGE,TRIM4#

main55303-05021-A0iADT251,AZT25#,CDT250,ZZT251..RHD..ELEGT200301-200604

IVORY,TRIM0#

main55303-05021-B0iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

DK.GRAY,TRIM1#

main55303-05021-E0iADT25#,AZT25#..RHD..(PAG,TEC)200604

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-05080iCDT250..LHD..DCR;ADT251,AZT25#,ZZT25#..LHD200301-200604

main55306-05090iCDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD200301-200604

55312ACLIP, INSTRUMENT PANEL

main90467-05161-A0iAZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY200301-200604

IVORY,TRIM0#

main90467-05161-B0iAZT25#,ZZT25#;CDT250..LB,SED;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY)200301-200604

DK.GRAY,TRIM1#

main90467-05161-B0iADT251;CDT250..RHD..WG..TEC200503-200604

DK.GRAY

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-05050iCDT250..DCRL200309-200604

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-05110iAZT25#,CDT250,ZZT25#..LHD..(D4,DCR,HTWC)200301-200501

main55330-05111iADT251,AZT25#,CDT250,ZZT25#..LHD200502-200604

main55330-05120iCDT250..RHD..DCRL200301-200501

main55330-05121iADT251,AZT25#,CDT250,ZZT25#..RHD200502-200604

main55330-05130iADT25#,AZT25#,ZZT25#..LHD200604

main55330-05140iADT25#,AZT25#,ZZT25#..RHD200604

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20390iCDT250..LHD..DCRL200301-200604

main55432-20400iCDT250..RHD..DCRL200301-200604

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20170iCDT250..LHD..DCRL200301-200604

main55433-20180iCDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD200301-200604

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-05030-A0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT200301-200604

IVORY,TRIM0#

main55548-05030-B0iADT251,AZT25#,CDT250,ZZT25#200301-200604

DK.GRAY,TRIM1#

main55548-05030-E0iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-05030iADT25#,AZT25#,ZZT25#..LHD200301-200604

main55606-05040iADT25#,AZT25#,ZZT25#..RHD200301-200604

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-05010iADT25#,AZT25#,ZZT25#..LHD200301-200604

main55607-05020iCDT250..RHD..DCRL200301-200604

55950ANOZZLE ASSY, DEFROSTER

main55950-05050iCDT250..LHD..DCRL200301-200604

main55950-05060iZZT25#..RHD200301-200604

main55950-05070iCDT250..RHD..DCR;ADT251,AZT25#..RHD200301-200604

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-05010-A0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..LHD..ELEGT200301-200604

IVORY,TRIM0#

main73900-05010-B0iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200604

DK.GRAY,TRIM1#

main73900-05010-E0iADT25#,AZT25#,ZZT25#..LHD..(PAG,TEC)200604

GREGE,TRIM4#

main73900-05020-A0iADT251,AZT25#,CDT250,ZZT251..RHD..ELEGT200301-200604

IVORY,TRIM0#

main73900-05020-B0iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

DK.GRAY,TRIM1#

main73900-05020-E0iADT25#,AZT25#..RHD..(PAG,TEC)200604

GREGE,TRIM4#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-05070iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200604

main73970-05080iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

90105W0029

main90105-W0029

90119W0093

main90119-W0093

9015950305

main90159-50305

9015960383

main90159-60383

9015970004

main90159-70004

90167W0007

main90167-W0007

90178W0007

main90178-W0007

9017906323

main90179-06323

9018305094

main90183-05094

9018305103

main90183-05103

9046710203

main90467-10203

9054105020

main90541-05020

26 parts on this diagram · 10 diagrams in section
