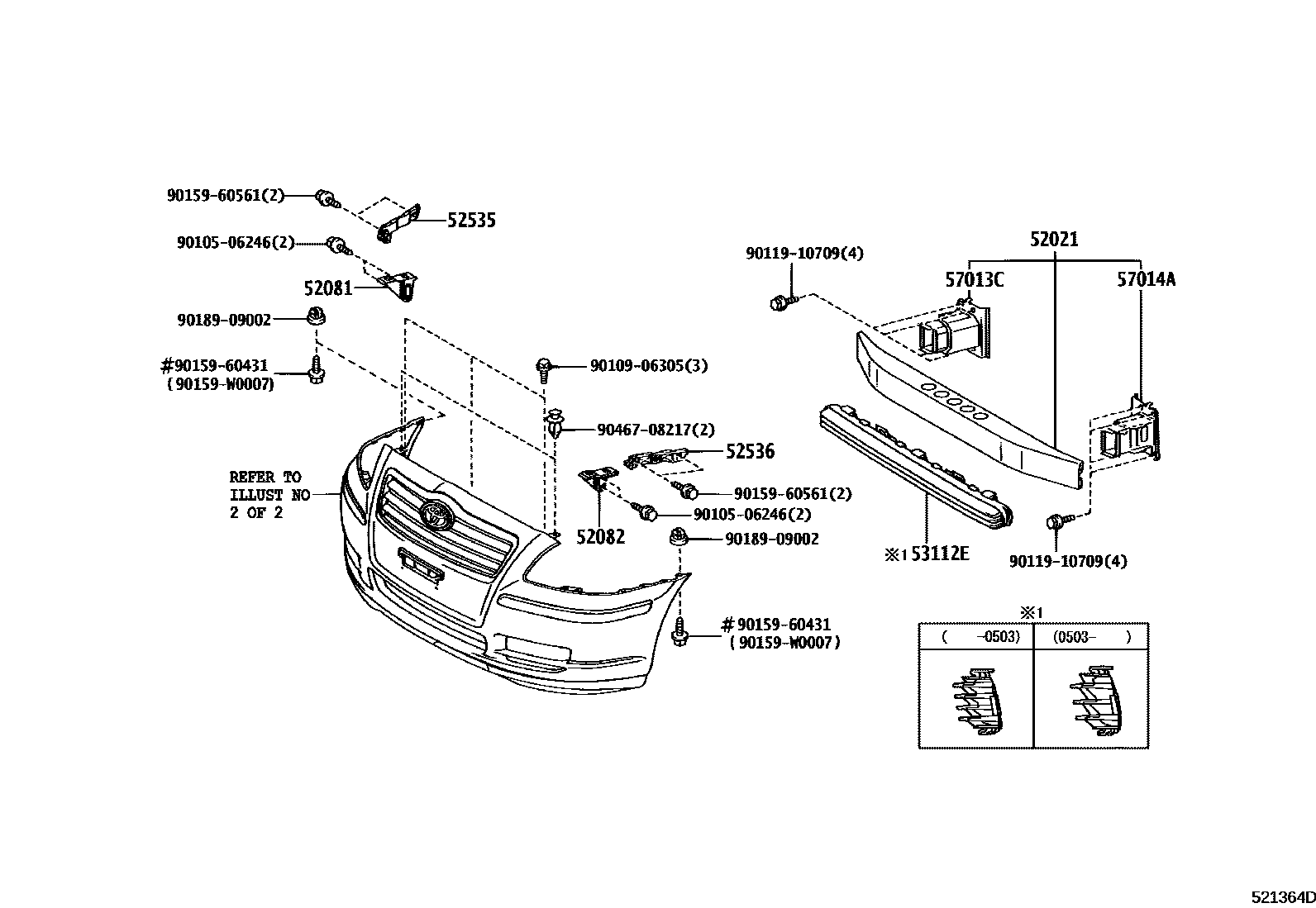

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-05040iADT25#,AZT25#,ZZT25#200604

52081STAY SUB-ASSY, FRONT BUMPER

main52081-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

main52081-05020iADT25#,AZT25#,ZZT25#200604

52082STAY SUB-ASSY, FRONT BUMPER, LH

main52082-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

main52082-05020iADT25#,AZT25#,ZZT25#200604

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-05050iAZT25#,CDT250,ZZT25#200301-200503

NO PAINT REQ.

main53112-05051iADT251,AZT25#,CDT250,ZZT25#200503-200604

NO PAINT REQ.

main53112-05060iADT25#,AZT25#,ZZT25#200604-200811

NO PAINT REQ.

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

9010506246

main90105-06246

9010906305

main90109-06305

9011910709

main90119-10709

9015960431

main90159-60431

9015960561

main90159-60561

90159W0007

main90159-W0007

9018909002

main90189-09002

9046708217

main90467-08217

16 parts on this diagram · 4 diagrams in section
