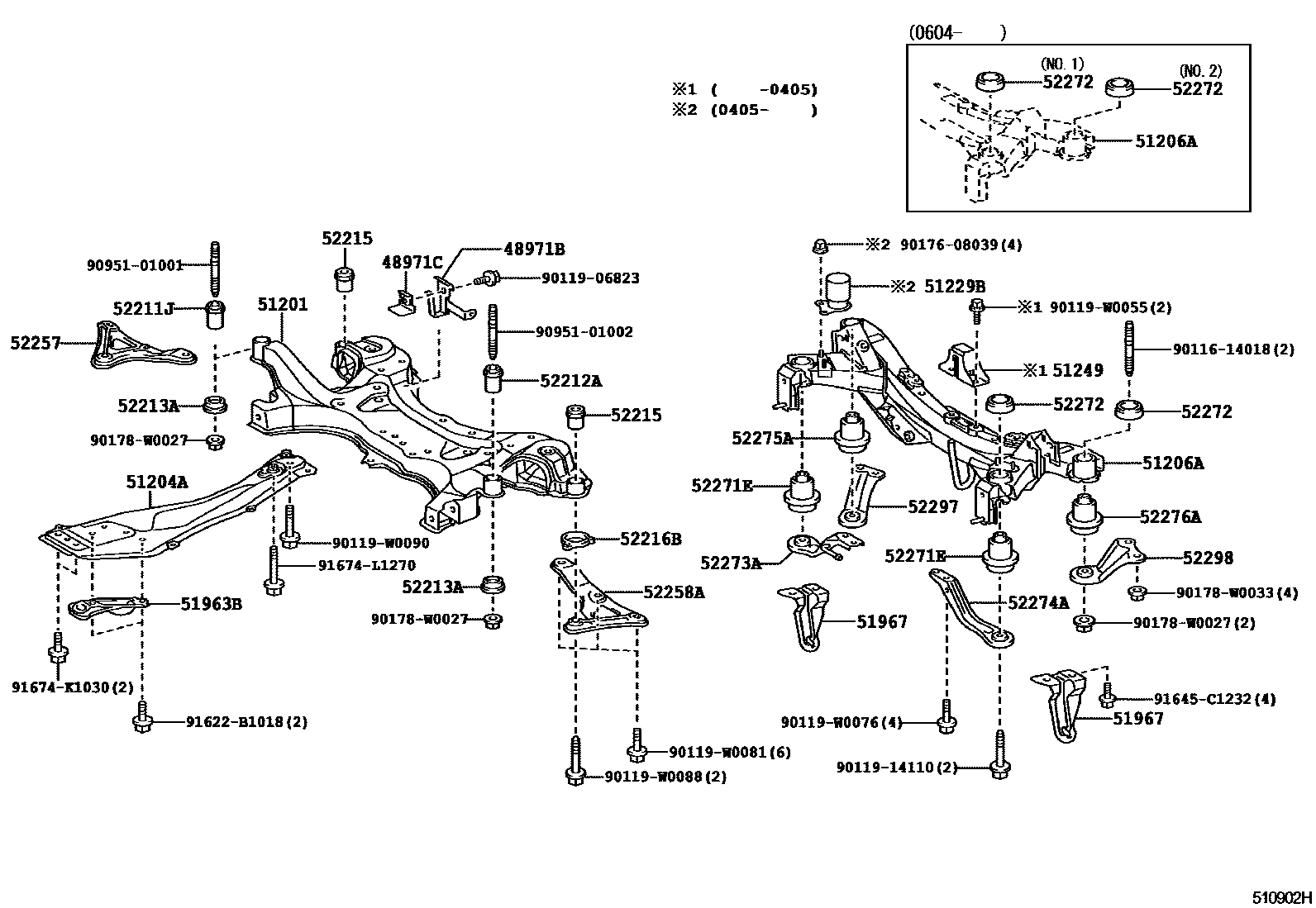

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1UNDER COVER 0003 1 0004 1 0005 1UNDER COVER 0006 1 0007 1UNDER COVER

48971BBRACKET, HEIGHT CONTROL PUMP, NO.1

48971CBRACKET, HEIGHT CONTROL PUMP, NO.2

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-05070iAZT250,CDT250,ZZT25#200301-200304

main51201-05071iCDT250..DCRL200304-200407

sub51201-05072

main51201-05072iAZT250,CDT250,ZZT25#..D4,DCR,HTWC200408-200604

main51201-05081iAZT251200309-200408

main51201-05082iAZT251200408-200503

main51201-05085iADT251,AZT251200503-200604

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-05021iZZT25#200301-200303

main51204-05022iZZT25#200303-200811

main51204-05031iADT25#200504-200811

main51204-05040iAZT251200309-200407

main51204-05042iAZT251200407-200811

main51204-05050iAZT250200301-200303

sub51204-05051

main51204-05051iAZT250200303-200811

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-05060iAZT25#,CDT250,ZZT25#200301-200405

sub51206-05061

sub51229-05030

sub90176-08039

main51206-05061iADT251,AZT25#,CDT250,ZZT25#200405-200604

51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC

main51229-05030iADT251,AZT25#,CDT250,ZZT25#200405-200604

51249DAMPER, REAR SUSPENSION MEMBER

main51249-05010iAZT25#,CDT250,ZZT25#200301-200405

51963BHOOK, TRANSPORT, FRONT RH

main51963-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

51967HOOK, TRANSPORT, REAR

main51967-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-05010iADT25#,AZT25#,ZZT25#200301-200604

52212ACUSHION, BODY MOUNTING, NO.2

main52212-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-05011iADT25#,AZT25#,ZZT25#200604

NO.1

main52272-05011iADT251,AZT25#,CDT250,ZZT25#200301-200604

main52277-05020iADT25#,AZT25#,ZZT25#200604

NO.2

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-20040iADT25#,AZT250,ZZT25#200301-200604

main52203-20050iAZT251200309-200604

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-20020iAZT251200309-200604

main52274-20010iADT251,AZT250,CDT250,ZZT25#200301-200604

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-05010iAZT250,CDT250,ZZT25#200301-200307

sub52275-05011

main52275-05011iADT251,AZT25#,CDT250,ZZT25#200307-200604

main52275-05020iADT25#,AZT25#,ZZT25#200604

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-05010iAZT250,CDT250,ZZT25#200301-200307

sub52276-05011

main52276-05011iADT251,AZT25#,CDT250,ZZT25#200307-200604

main52276-05020iADT25#,AZT25#,ZZT25#200604

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-20020iADT251,AZT25#,CDT250,ZZT25#200301-200604

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-20010iADT251,AZT25#,CDT250,ZZT25#200301-200604

9011614018

main90116-14018

9011906823

main90119-06823

9011914110

main90119-14110

90119W0055

main90119-W0055

90119W0076

main90119-W0076

90119W0081

main90119-W0081

90119W0088

main90119-W0088

90119W0090

main90119-W0090

9017608039

main90176-08039

90178W0027

main90178-W0027

90178W0033

main90178-W0033

9095101001

main90951-01001

9095101002

main90951-01002

91622B1018

main91622-B1018

91645C1232

main91645-C1232

91674K1030

main91674-K1030

91674L1270

main91674-L1270

41 parts on this diagram · 7 diagrams in section
