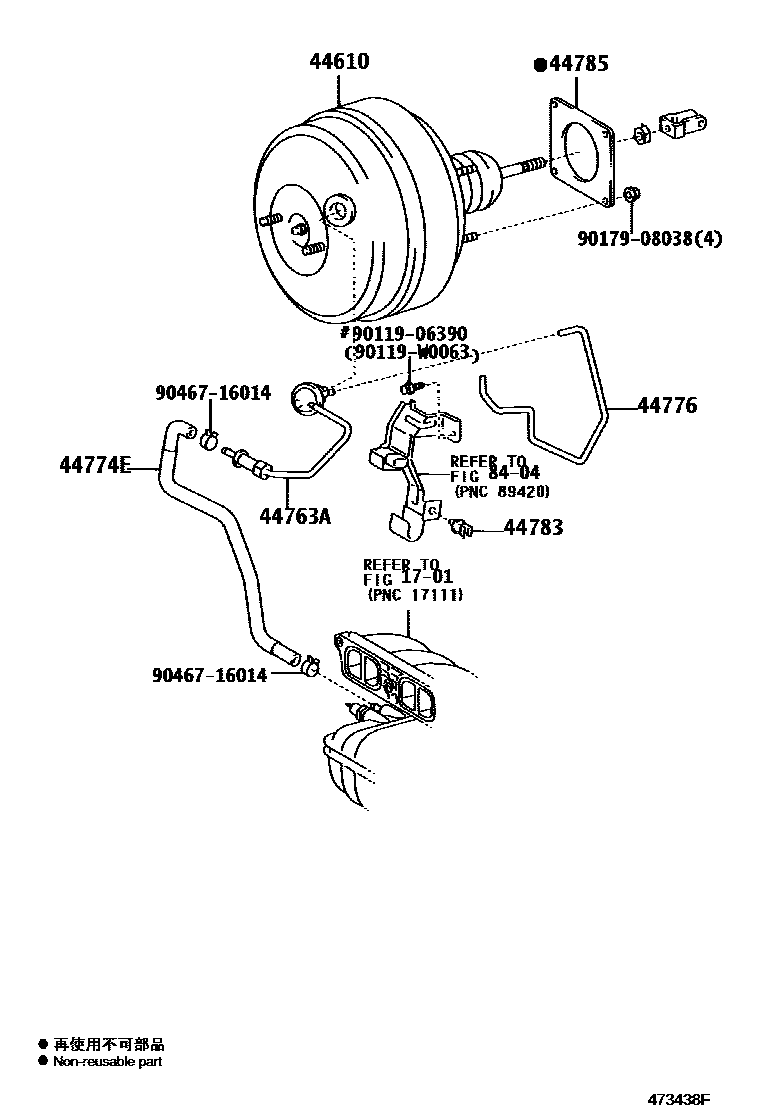

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1701

44610BOOSTER ASSY, BRAKE

main44610-05090iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200604

main44610-05100iADT251,AZT25#,CDT250,ZZT25#..RHD¥67,800200301-200604

44763ATUBE, HOSE TO HOSE, NO.1

main44763-05010iZZT25#..LHD200301-200604

main44763-05020iZZT25#..RHD200301-200604

main44763-05030iAZT25#..LHD..D4200301-200604

main44763-05040iAZT25#..RHD¥910200301-200604

main44763-05050iAZT250..HTWC¥1,020200301-200604

main44763-05090iADT25#..LHD200504-200604

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-02040iZZT25#..LHD200301-200604

NO.2

main44774-12420iZZT25#..RHD¥1,870200301-200604

NO.2

main44774-12470iZZT250¥1,350200301-200604

NO.1

main44774-20310iZZT251¥840200301-200604

NO.1

main44774-20330iAZT25#..LHD..D4¥2,470200301-200604

main44774-20340iAZT25#..RHD¥1,790200301-200604

main44774-20350iAZT250..HTWC¥2,620200301-200604

44776HOSE, BRAKE BOOSTER

main44776-20190iAZT25#..LHD..D4¥430200301-200604

main44776-20200iAZT25#..RHD¥430200301-200604

44783CLAMP, VACUUM HOSE

main44783-20010iAZT25#..LHD¥350200301-200604

NO.2

main44783-20020iAZT25#..LHD..D4¥320200301-200604

NO.1

main44783-20040iAZT250..HTWC¥320200301-200604

NO.3

main44783-20050iAZT250..HTWC¥320200301-200604

NO.1

main44783-20090iAZT25#..RHD¥220200604

main44783-20090iAZT25#..RHD¥220200301-200604

NO.1

main44783-20121iADT25#..LHD¥1,290200504-200811

NO.1

main44783-20130iADT251..LHD200504-200604

NO.2

44785GASKET, BRAKE BOOSTER

main44785-20020iADT251,AZT25#,CDT250,ZZT25#¥320200301-200604

8404

9011906390

main90119-06390¥70

90119W0063

main90119-W0063

9017908038

main90179-08038¥130

9046716014

main90467-16014¥230

12 parts on this diagram · 9 diagrams in section
