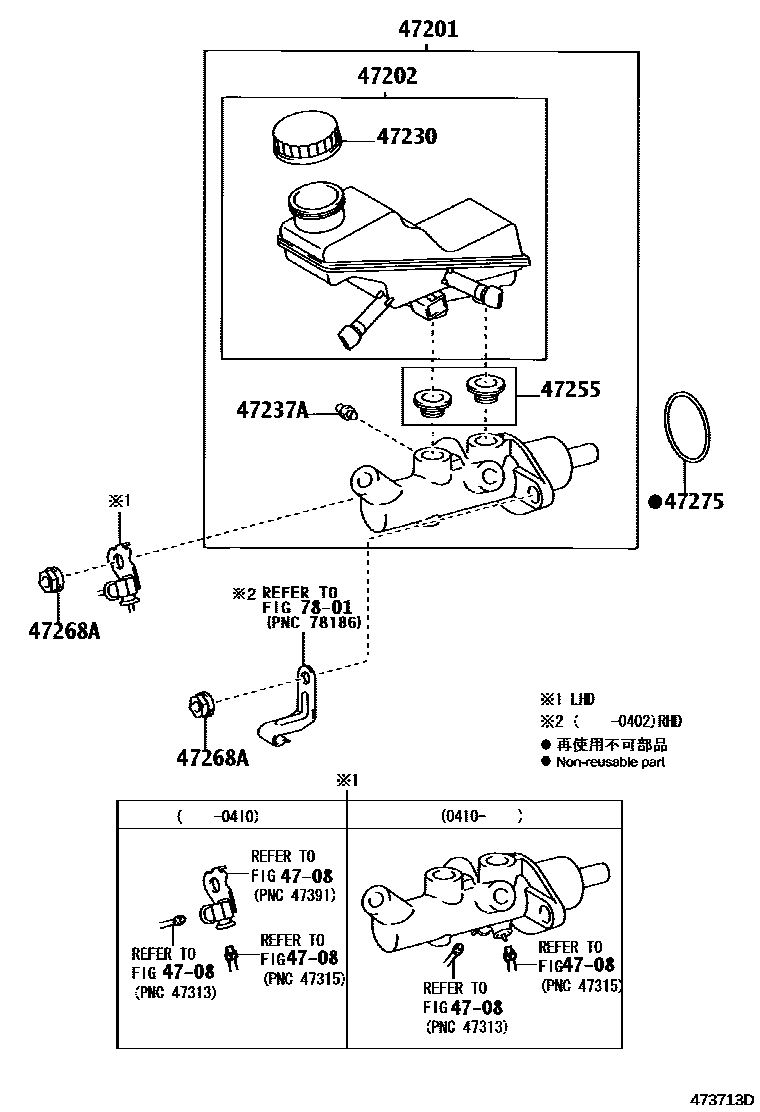

BRAKE MASTER CYLINDER

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-05090iZZT251..LHD200301-200409

sub47201-05091

main47201-05091iAZT250,CDT250,ZZT250..LHD..(DCR,DCRL,HTWC)200410-200711

sub47201-05092

main47201-05092iAZT250,ZZT250..LHD..HTWC200712

main47201-05100iZZT251..RHD200301-200711

sub47201-05101

main47201-05101iZZT250..RHD200712

main47201-05110iZZT250..LHD200402-200409

VSC-WITH

sub47201-05111

main47201-05110iAZT25#..LHD..D4200301-200409

sub47201-05111

main47201-05111iAZT250..LHD..D4;ADT25#,AZT251,ZZT251..LHD200604-200711

VEHICLE STABILITY CONT-WITH

sub47201-05112

main47201-05111iAZT250..LHD..D4;ADT251,AZT251,ZZT251..LHD200410-200604

VSC-WITH

sub47201-05112

main47201-05112iZZT250..LHD200712

VEHICLE STABILITY CONT-WITH

main47201-05120iZZT250..RHD200604-200711

VEHICLE STABILITY CONT-WITH

sub47201-05121

main47201-05120iZZT250..RHD200402-200604

VSC-WITH

sub47201-05121

main47201-05120iADT251,AZT25#..RHD200301-200604

sub47201-05121

main47201-05121iZZT250..RHD200712

VEHICLE STABILITY CONT-WITH

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-05050iADT25#,AZT25#,ZZT25#..LHD200301-200604

main47220-05060iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iADT251,AZT25#,CDT250,ZZT25#200301-200604

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-0D010iADT251,AZT25#,CDT250,ZZT25#200301-200604

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09010iADT251,AZT25#,CDT250,ZZT25#200301-200604

47268ANUT, BRAKE MASTER CYLINDER

main47268-0D010iADT251,AZT25#,CDT250,ZZT25#200301-200604

47275GASKET, BRAKE MASTER CYLINDER

main47275-05020iADT25#,AZT25#,ZZT25#200301-200604

7801

9 parts on this diagram · 1 diagram in section
