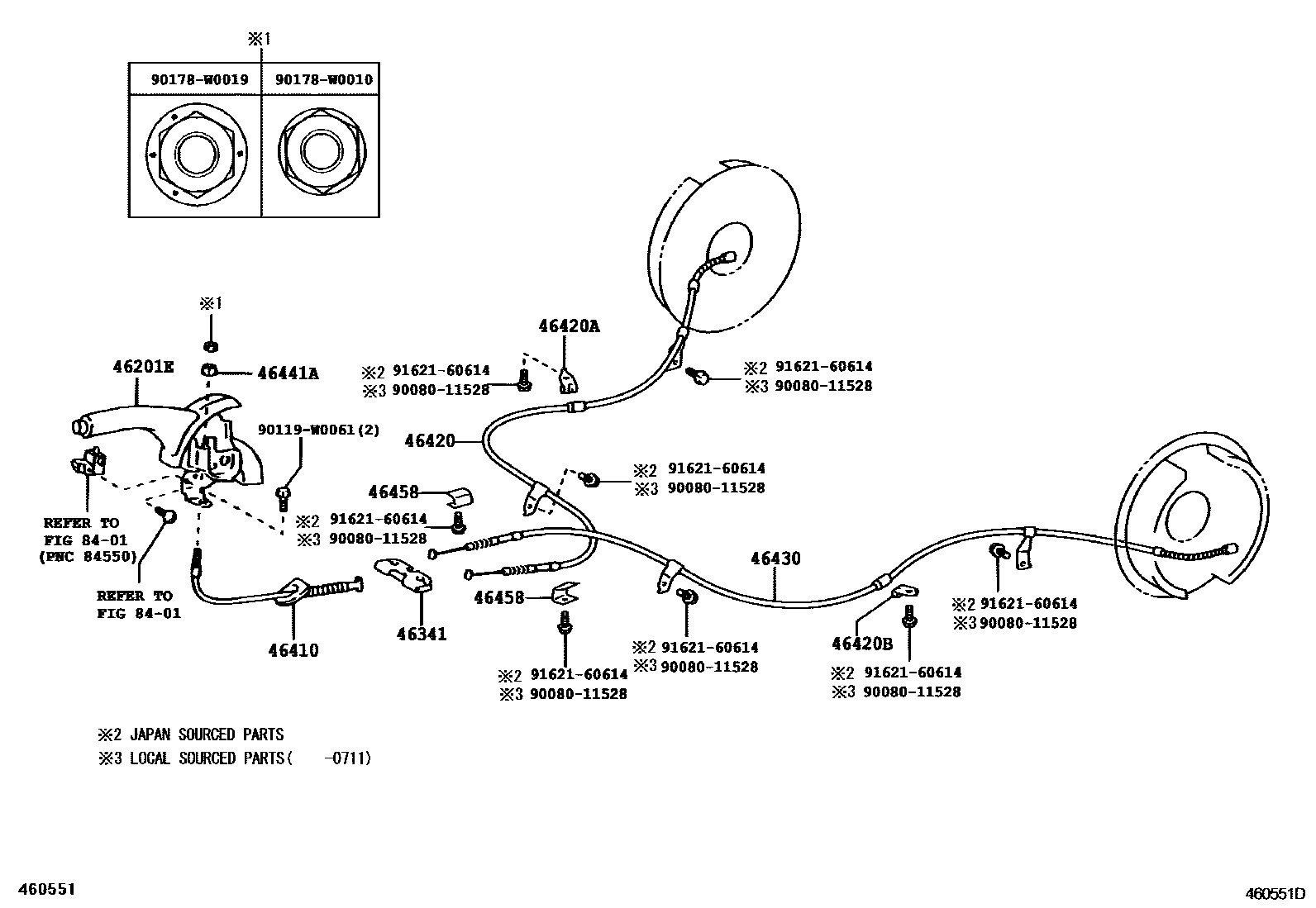

PARKING BRAKE & CABLE

0001 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02121-B0iCDT250..RHD..WG..ENTRY;AZT250,ZZT25#..RHD..(ENTRY,TEC);CDT250..RHD..(LB,SED)..(ENTRY,TEC)200301-200604

DK.GRAY,TRIM0#,1#

main46201-02121-B0iCDT250..RHD..WG..ENTRY;AZT250,ZZT25#..RHD..(ENTRY,TEC);CDT250..RHD..(LB,SED)..(ENTRY,TEC)200301-200604

DK.GRAY,TRIM1#

main46201-02121-B0iADT251..RHD;CDT250..RHD..WG..TEC200503-200604

DK.GRAY

main46201-02131-B0iZZT251..LHD..SED..TEC;ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);AZT25#,CDT250,ZZT250..LHD..(ENTRY,TEC)200301-200604

DK.GRAY,TRIM0#,1#

main46201-02131-B0iZZT251..LHD..SED..TEC;ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);AZT25#,CDT250,ZZT250..LHD..(ENTRY,TEC)200301-200604

DK.GRAY,TRIM1#

main46201-02131-B0iADT251..LHD200504-200604

DK.GRAY

46341EQUALIZER, PARKING BRAKE

main46341-20070iADT251,AZT25#,CDT250,ZZT25#200301-200604

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12270iADT25#,AZT25#,ZZT25#200301-200604

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-05030iADT251,AZT25#,CDT250,ZZT25#200301-200612

sub46420-20570

main46420-20570iADT25#,AZT25#,ZZT25#200701

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B88iADT251,AZT25#,CDT250,ZZT25#200301-200604

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B88iADT251,AZT25#,CDT250,ZZT25#200301-200604

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-05030iADT251,AZT25#,CDT250,ZZT25#200301-200612

sub46430-20680

main46430-20680iADT25#,AZT25#,ZZT25#200701

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06171iADT251,AZT25#,CDT250,ZZT25#200301-200604

46458RETAINER, CABLE

main46458-28010iADT251,AZT25#,CDT250,ZZT25#200301-200604

8401

9008011528

main90080-11528

90119W0061

main90119-W0061

90178W0010

main90178-W0010

90178W0019

main90178-W0019

9162160614

main91621-60614

15 parts on this diagram · 2 diagrams in section
