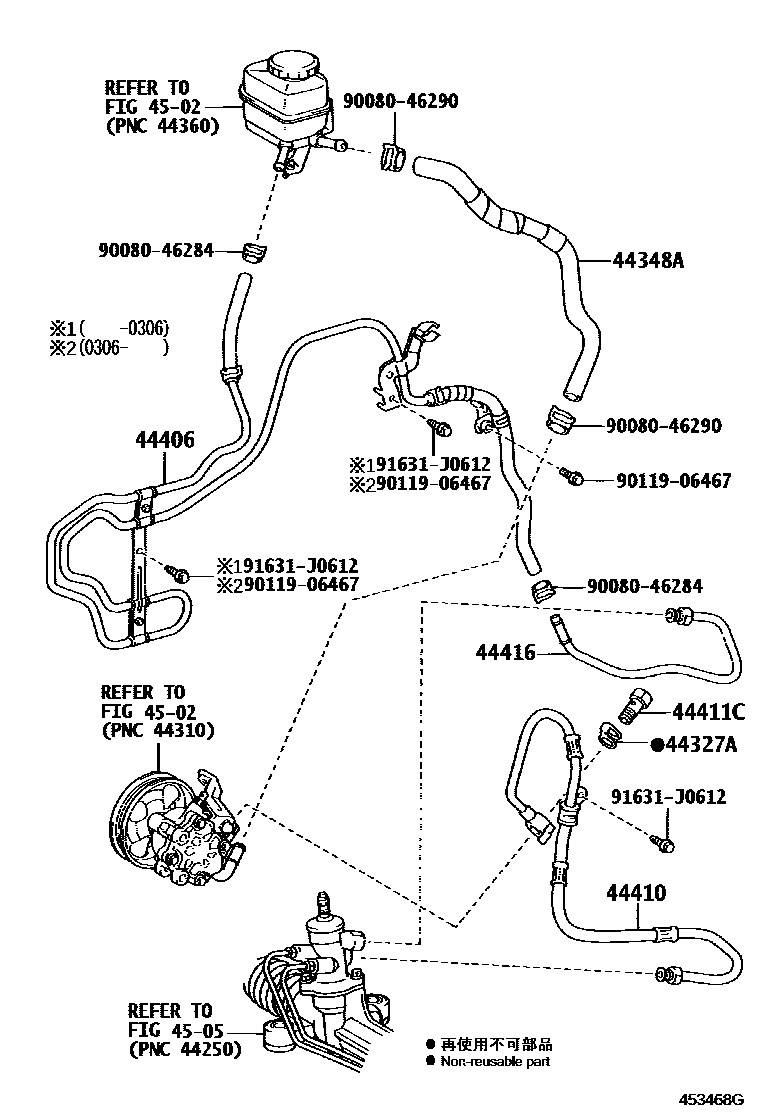

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAZT25#¥260200301-200604

main44327-26030iADT251¥260200504-200604

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-05080iAZT250¥4,710200301-200306

sub44348-05100¥4,930

main44348-05090iCDT250200303-200604

main44348-05100iAZT25#¥4,930200306-200604

44406TUBE SUB-ASSY, RETURN

main44406-05200iAZT25#¥13,000200301-200604

main44406-05210iCDT250200303-200604

main44406-05230iADT25#200504-200604

44410TUBE ASSY, PRESSURE FEED

main44410-05240iAZT25#..LHD¥28,300200301-200604

main44410-05250iAZT25#..RHD¥15,300200301-200604

main44410-05260iCDT250..LHD200303-200604

main44410-05270iCDT250..RHD200303-200604

main44410-05300iADT251..LHD200504-200604

main44410-05310iADT251..RHD200504-200604

sub44410-05311

main44410-05311iADT25#..RHD200604

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iADT251,AZT25#¥310200301-200604

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-05020iADT251,AZT25#,CDT250..RHD¥1,720200301-200604

4502

4505

9008046284

main90080-46284¥300

9008046290

main90080-46290¥370

9011906467

main90119-06467¥160

91631J0612

main91631-J0612¥110

12 parts on this diagram · 6 diagrams in section
