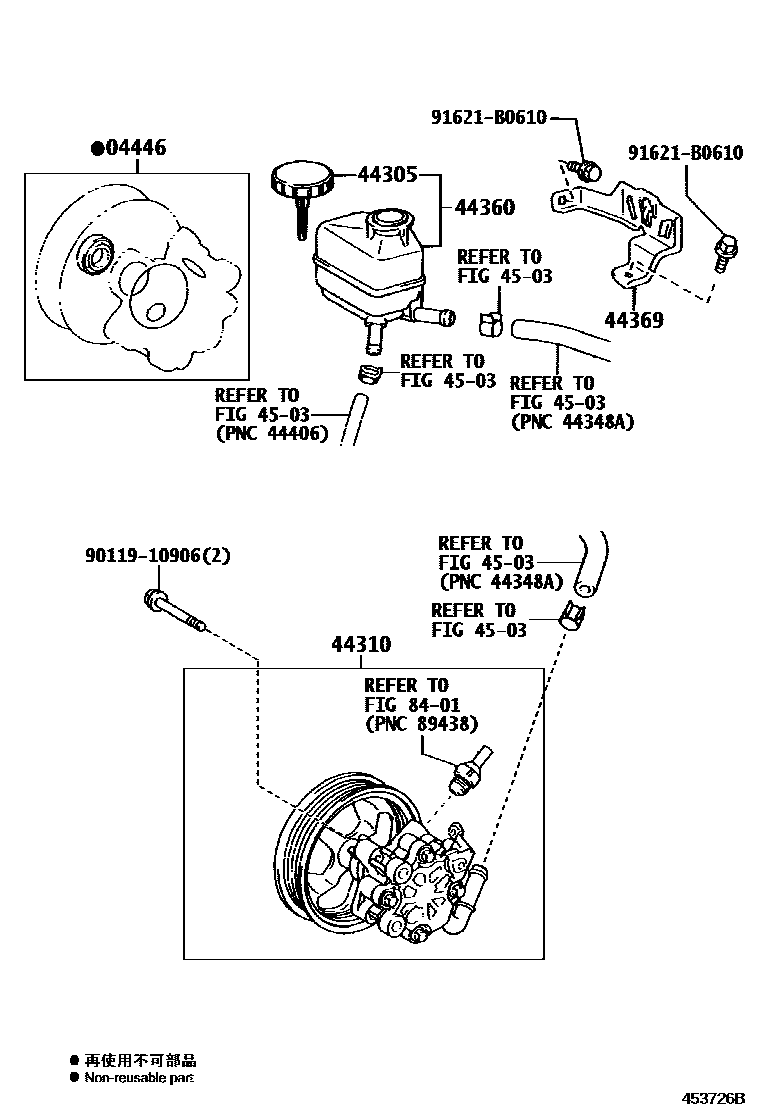

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02050iADT25#,AZT25#200301-200604

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iAZT25#200301-200711

sub44305-20050

main44305-20050iAZT25#200712

main44305-22040iADT25#200504-200801

sub44305-22060

main44305-22060iADT25#200802

sub44305-22061

main44305-28030iCDT250200303-200604

sub44305-28060

44310PUMP ASSY, VANE

main44310-05090iAZT25#200301-200604

main44310-05100iCDT250200303-200604

main44310-05120iADT25#200504-200604

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iAZT25#200301-200604

main44360-20250iCDT250200303-200604

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iCDT250200303-200604

main44390-20060iAZT25#200301-200604

4503

8401

9011910906

main90119-10906

91621B0610

main91621-B0610

9 parts on this diagram · 3 diagrams in section
