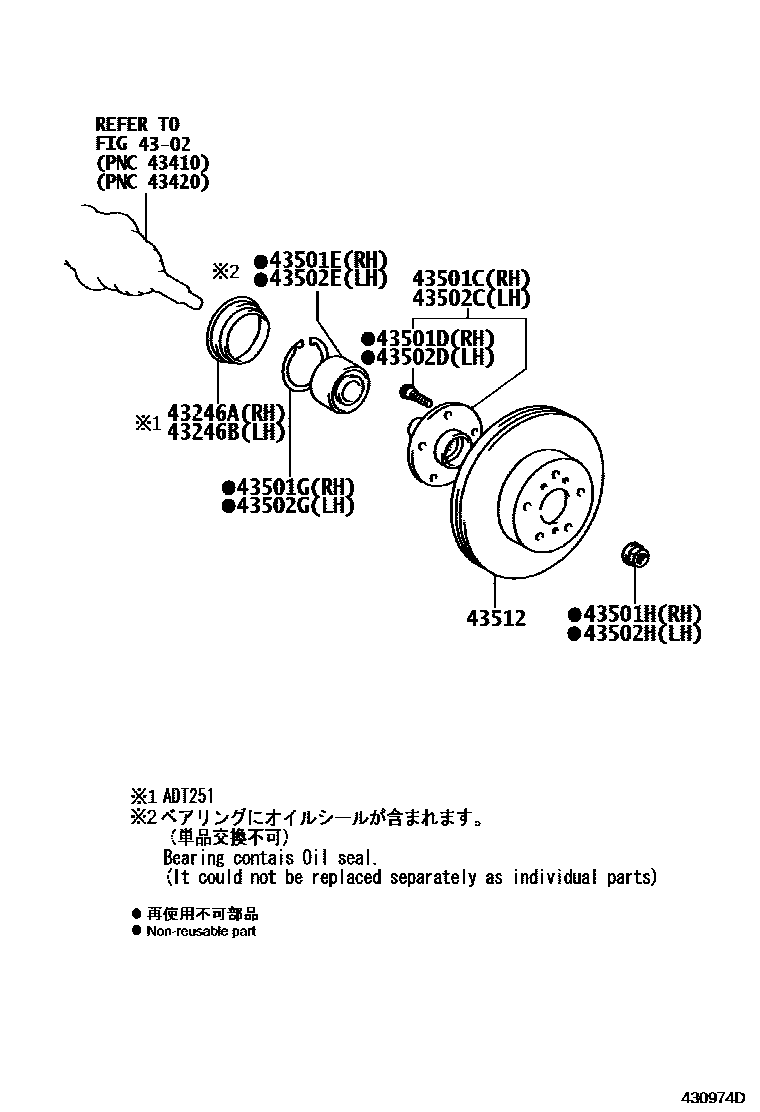

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-64010iADT251200504-200604

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-64010iADT251200504-200604

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-05040iADT251200504-200604

main43502-21010iADT250,AZT25#,ZZT25#200301-200604

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iADT25#,AZT25#,ZZT25#200301-200604

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36087iAZT25#,CDT250,ZZT25#200301-200604

main90363-W0001iADT251200504-200604

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iADT251200504-200604

main90521-79002iADT250,AZT25#,ZZT25#200301-200604

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iADT25#,AZT25#,ZZT25#200301-200604

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-05040iADT251200504-200604

main43502-21010iAZT25#,CDT250,ZZT25#200301-200604

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iADT251,AZT25#,CDT250,ZZT25#200301-200604

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36087iAZT25#,CDT250,ZZT25#200301-200604

main90363-W0001iADT251200504-200604

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iADT251200504-200604

main90521-79002iAZT25#,CDT250,ZZT25#200301-200604

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iADT251,AZT25#,CDT250,ZZT25#200301-200604

43512DISC, FRONT

main43512-05040iAZT250,ZZT25#..HTWC200301-200604

main43512-05050iAZT25#,CDT250..D4,DCR,DCRL200301-200311

sub43512-05070

main43512-05070iAZT25#,CDT250..D4,DCR,DCRL200311-200811

sub43512-05110

main43512-05080iADT251200504-200604

14 parts on this diagram · 1 diagram in section
