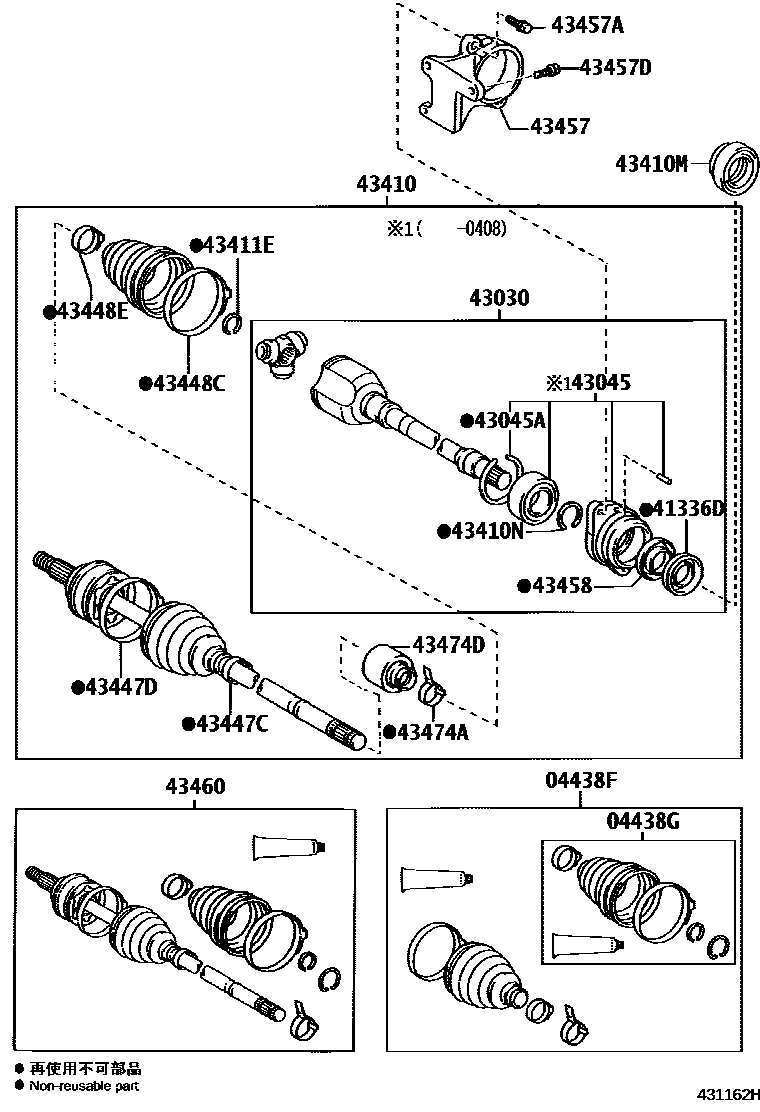

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1RH 0006 1LH 0007 1RH 0008 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02250iAZT25#¥10,800200409-200604

main04427-05180iADT251200504-200604

sub04427-05181

main04427-05220iZZT251200509-200604

main04427-05240iADT250200605

main04438-05240iZZT250;ZZT251..RHD..5F..ELEGT;ZZT251..LHD..4FC..ENTRY;ZZT251..RHD..LB..4FC..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

main04438-05260iAZT250..ELEGT;CDT250..LB,SED;AZT250..SED..5F..TEC;AZT250..(LB,WG)..TEC;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY);AZT250..SED..4FC..TEC..D4¥10,800200301-200509

main04438-05280iAZT251200309-200409

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-05070iADT251200504-200604

main04437-05100iADT250200605

main04438-02111iZZT250;ZZT251..RHD..5F..ELEGT;ZZT251..LHD..4FC..ENTRY;ZZT251..RHD..LB..4FC..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

main04438-05070iZZT251200509-200604

main04438-05250iAZT250..4FC..TEC..HTWC¥6,700200301-200604

main04438-05270iAZT251200309-200409

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05010iZZT250200301-200604

main41336-05030iZZT251¥570200301-200509

sub41336-05140¥380

main41336-05080iADT250,AZT25#¥740200301-200604

main41336-05100iADT251200504-200604

main41336-05140iZZT251¥380200510-200604

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05120iAZT250,CDT250¥32,700200301-200604

main43030-05150iAZT251¥35,600200309-200604

main43030-05200iADT251200504-200604

main43030-05210iADT250200605

main43040-02030iZZT250¥10,000200301-200604

main43040-05110iZZT251200301-200604

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20050iAZT25#,CDT250¥8,200200301-200408

sub43045-64020¥4,940

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iADT251,AZT25#,CDT250¥100200301-200604

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-05320iADT251¥85,400200504-200604

sub43410-05321

main43410-05330iZZT250200301-200604

main43410-05340iZZT251200301-200604

main43410-05350iAZT250¥80,000200301-200604

sub43410-05351

main43410-05370iCDT250200303-200604

sub43410-05371

main43410-05380iAZT251¥82,800200309-200604

sub43410-05381¥82,800

main43410-05430iADT250200605

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iZZT250¥270200301-200505

main90311-35045iZZT251..4FC¥290200301-200506

main90311-35051iZZT251..5F¥270200301-200508

sub90311-35057¥350

main90311-35055iZZT251..4FC¥400200506-200811

sub90311-35069¥400

main90311-35057iZZT251..5F¥350200508-200811

sub90311-35065¥270

main90311-40025iAZT250,CDT250..5F¥310200301-200509

sub90311-40030¥310

main90311-40026iAZT250..4FC¥310200301-200510

sub90311-40041¥310

main90311-40028iAZT251¥400200309-200511

main90311-40029iAZT251¥400200511-200811

sub90311-40038¥400

main90311-40030iADT25#,AZT250..MTM¥310200504-200811

sub90311-40036¥310

main90311-40031iAZT250..4FC¥470200510-200811

main90311-W0003iZZT250200505-200811

sub90311-W0015¥350

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-05050iADT251200504-200604

main90080-52055iZZT251¥90200301-200604

main90080-52056iZZT250¥100200301-200604

main90080-52106iAZT25#,CDT250¥160200301-200604

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02020iAZT25#,CDT250¥60200301-200604

main43425-05040iADT251200504-200604

main90080-52093iZZT25#¥120200301-200604

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iADT250,AZT25#¥310200301-200604

main42345-05070iZZT25#¥440200301-200604

main42345-05280iADT251200504-200604

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iADT250,AZT25#¥440200301-200604

main42345-05080iZZT25#¥440200301-200604

main42345-05270iADT251¥680200504-200604

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02080iAZT25#,CDT250¥650200301-200604

main42345-05040iZZT25#200301-200604

main42345-05210iADT251200504-200604

main42345-05300iADT250200605

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02090iAZT25#,CDT250¥250200301-200604

main42345-05030iZZT25#200301-200604

main42345-05250iADT251200504-200604

43457BRACKET, DRIVE SHAFT BEARING

main43457-05010iAZT250..5F¥3,880200301-200604

main43457-05020iAZT250..4FC¥3,880200301-200604

main43457-05030iCDT250200303-200604

main43457-05040iAZT251200309-200604

main43457-05050iADT251200504-200604

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iCDT250¥110200301-200604

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iADT251,AZT25#¥100200301-200604

43458COVER, FRONT DRIVE SHAFT DUST

main43458-05020iAZT25#,CDT250¥680200301-200604

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09890iZZT250;ZZT251..RHD..5F..ELEGT;ZZT251..LHD..4FC..ENTRY;ZZT251..RHD..LB..4FC..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

main43460-09A21iAZT250¥50,300200301-200509

sub43460-09P50¥50,200

main43460-09A22iCDT250..LB,SED;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY)200303-200507

main43460-09A23iAZT251200309-200409

main43460-09P40iZZT251200509-200604

main43460-09P50iAZT25#¥50,200200509-200604

main43460-09P70iADT250200605

main43460-09Q50iCDT250200507-200604

main43470-09M10iADT251200504-200604

sub43470-09M11

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-05110iZZT25#¥240200301-200306

main42345-05220iAZT25#,ZZT25#¥240200306-200604

main42345-05260iADT251200504-200604

main42345-05310iADT250200605

main90080-46154iAZT250,CDT250¥240200301-200306

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02080iZZT25#200301-200604

main43474-05110iAZT25#¥3,610200301-200604

main43474-05140iADT251200504-200604

main43474-05160iADT250200605

21 parts on this diagram · 8 diagrams in section
