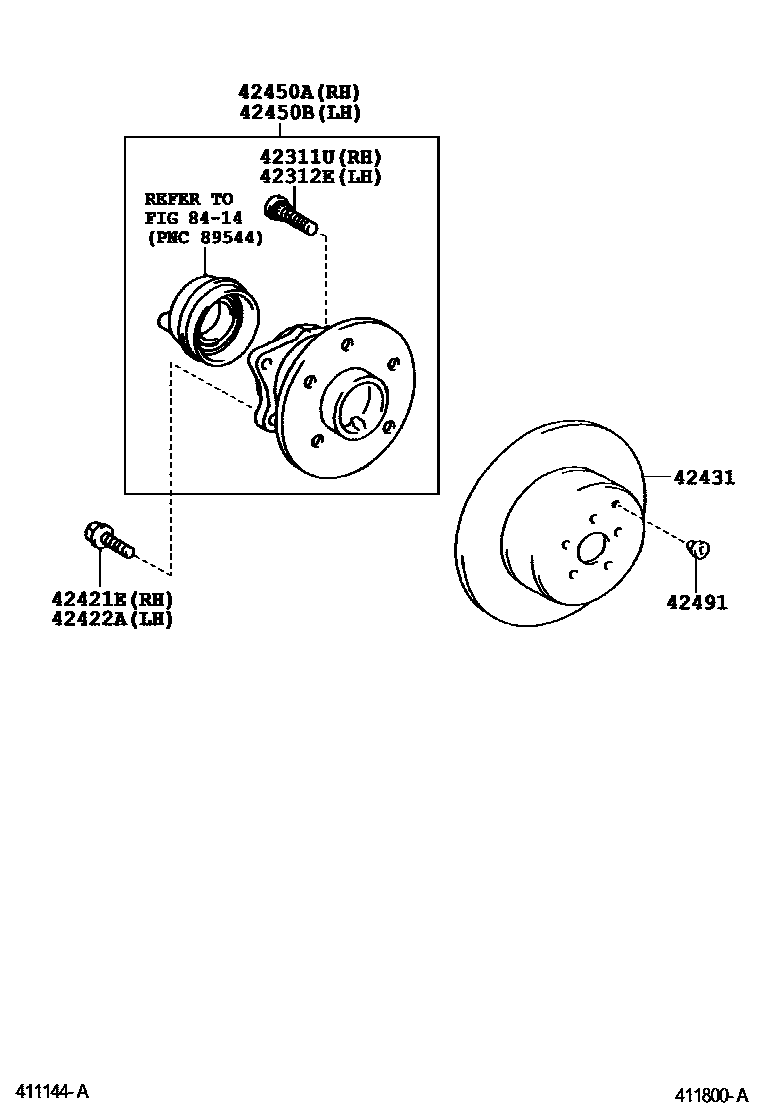

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iADT25#,AZT25#,ZZT25#¥240200301-200604

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iADT251,AZT25#,CDT250,ZZT25#¥240200301-200604

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10502iAZT250,CDT250,ZZT25#¥140200301-200307

main90105-W0064iADT251,AZT25#,CDT250,ZZT25#200307-200604

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10502iAZT250,CDT250,ZZT25#¥140200301-200307

main90105-W0064iADT251,AZT25#,CDT250,ZZT25#200307-200604

42431DISC, REAR

main42431-05030iADT250,AZT25#,ZZT25#¥10,200200301-200811

sub42431-05060¥10,200

main42431-05050iADT251¥9,800200504-200604

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-05040iAZT25#,CDT250,ZZT25#¥15,400200301-200604

sub42450-63011¥30,900

main42450-05060iADT251200504-200604

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-05040iAZT25#,CDT250,ZZT25#¥15,400200301-200604

sub42450-63011¥30,900

main42450-05060iADT251200504-200604

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-05010iADT25#,AZT25#,ZZT25#¥140200301-200604

8414

9 parts on this diagram · 1 diagram in section
