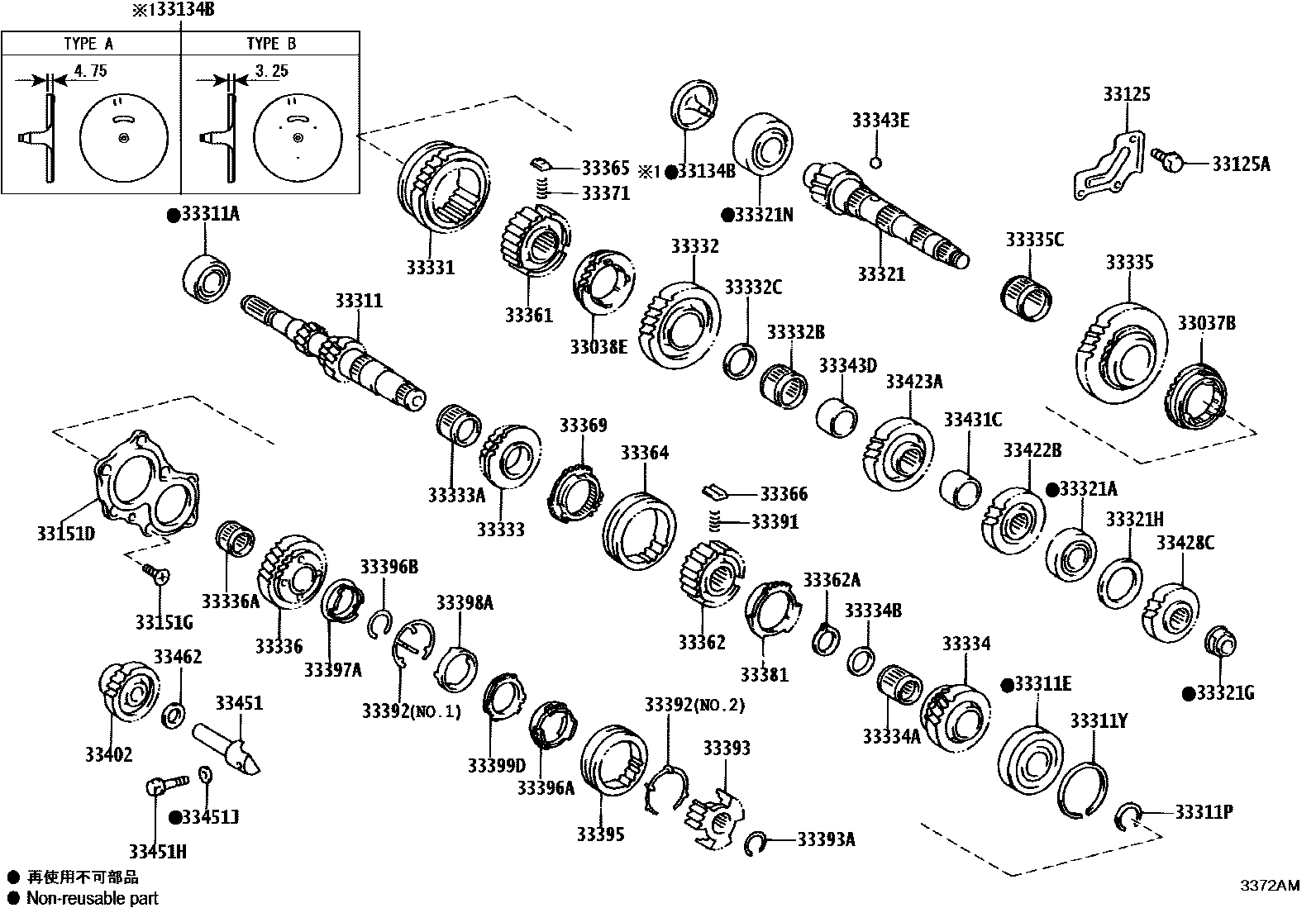

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
REFER TO PNC 33335
REFER TO PNC 33335
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
33151DRETAINER, BEARING, REAR(MTM)
33151GSCREW(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
T=2.35-2.40,MARK 1
T=2.40-2.45,MARK 2
T=2.45-2.50,MARK 3
T=2.50-2.55,MARK 4
T=2.55-2.60,MARK 5
T=2.60-2.65,MARK 6
T=2.65-2.69,MARK 7
T=2.70-2.74,MARK 8
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
PNC 33134B=TYPE A
PNC 33134B=TYPE B
PNC 33134B=TYPE A
PNC 33134B=TYPE B
sub33321-12210
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
T=2.15,MARK H
T=2.20,MARK J
T=2.25,MARK K
T=2.30,MARK L
T=2.35,MARK M
T=2.40,MARK N
T=2.45,MARK P
T=2.50,MARK Q
T=2.55,MARK R
T=2.60,MARK S
T=1.30,MARK 0
T=1.35,MARK 1
T=1.40,MARK 2
T=1.45,MARK 3
T=1.50,MARK 4
T=1.55,MARK 5
T=1.60,MARK 6
T=1.65,MARK 7
T=1.70,MARK 8
T=1.75,MARK 9
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
T=2.15,MARK H
T=2.20,MARK J
T=2.25,MARK K
T=2.30,MARK L
T=2.35,MARK M
T=2.40,MARK N
T=2.45,MARK P
T=2.50,MARK Q
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33331GEAR, REVERSE
(J)
(J)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33343DBUSH, 2ND GEAR
33343EBALL (FOR 2ND GEAR BUSH)
33361HUB, TRANSMISSION CLUTCH, NO.1
(J),REFER PNC 33335
(J),REFER PNC 33335
(J)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
T=2.30-2.35,MARK H
T=2.35-2.40,MARK J
T=2.40-2.45,MARK K
T=2.45-2.50,MARK L
T=2.50-2.55,MARK M
T=2.55-2.60,MARK N
T=2.60-2.65,MARK P
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33381RING, 2ND SYNCHRONIZER OUTER
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
NO.1
NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.25-2.30,MARK A
T=2.31-2.36,MARK B
T=2.37-2.42,MARK C
T=2.43-2.48,MARK D
T=2.49-2.54,MARK E
T=2.55-2.60,MARK F
T=2.61-2.66,MARK G
T=1.75-1.80,MARK A
T=1.80-1.85,MARK B
T=1.85-1.90,MARK C
T=1.90-1.95,MARK D
T=1.95-2.00,MARK E
T=2.00-2.05,MARK F
T=2.05-2.10,MARK G
T=2.10-2.15,MARK H
T=2.15-2.20,MARK J
33395SLEEVE, TRANSMISSION HUB, NO.3
(J)
33396ARING, SYNCHRONIZER PULL
33396BRING, SNAP (FOR SYNCHRONIZER PULL RING)
33397ARING, SYNCHRONIZER, INNER NO.5
33398ARING, SYNCHRONIZER, MIDDLE NO.5
33399DRING, SYNCHRONIZER, OUTER NO.5
33402GEAR SUB-ASSY, REVERSE IDLER
(J)
33431CSPACER, OUTPUT GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
60 parts on this diagram · 3 diagrams in section
