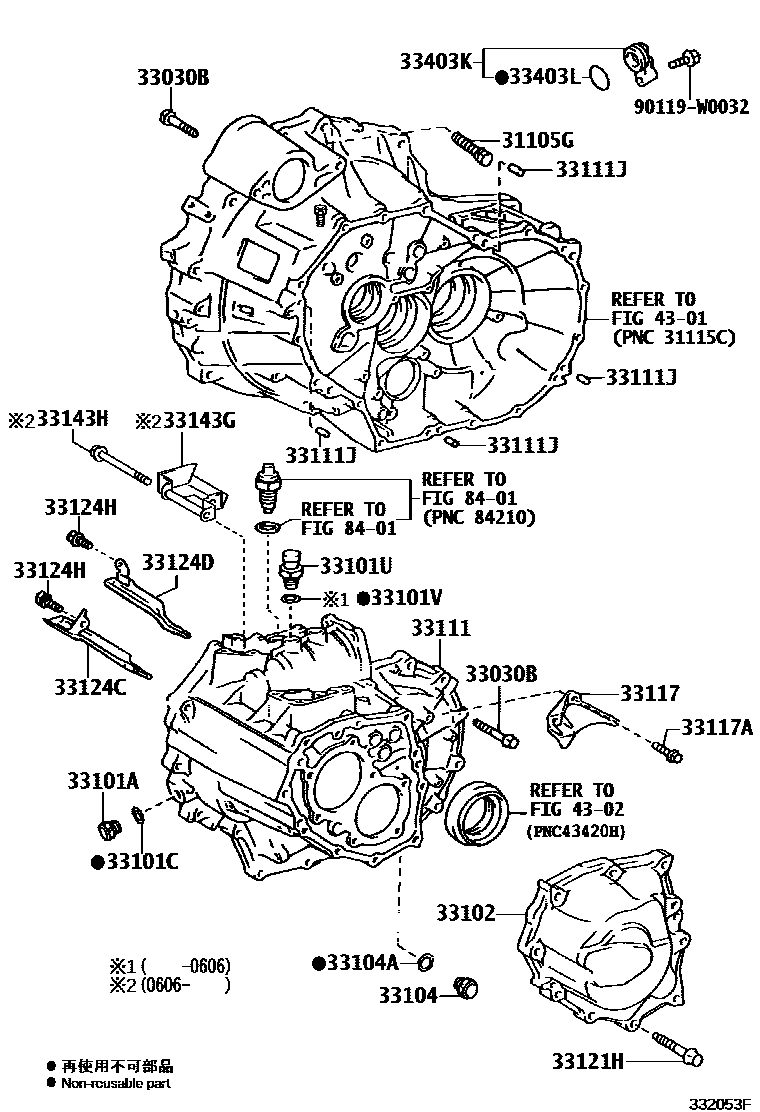

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1E354,E357 0002 1C50,C250 0003 1EA60,EA61

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCDT250¥260200303-200307

*10-1.25PX43-26

main90105-12147iAZT250..5F¥410200301-200604

*12-1.25PX74.5-25

main90105-W0062iCDT250200307-200604

*10-1.25PX43-26

main90105-W0181iADT25#200711

*10-1.25PX60-30

main90105-W0182iADT25#¥160200711

*10-1.25PX65-30

main90119-12042iADT25#¥260200504-200712

*12-1.25PX75-30

main90119-12168iCDT250¥170200303-200307

*12-1.25PX55-30

main90119-12252iADT251,AZT250..MTM¥250200301-200712

*12-1.25PX60-30

main90119-W0040iZZT25#..5F200304-200401

*12-1.25PX55-30

sub91619-61255¥120

main90119-W0049iZZT25#..5F200304-200604

*10-1.25PX55-30

sub91642-81055¥220

main90119-W0080iCDT250¥320200307-200604

*12-1.25PX55-30

main90119-W0162iADT25#200801

*12-1.25PX75-30

main90119-W0163iADT25#200711

*12-1.25PX60-30

main91512-61060iADT25#¥180200301-200712

*10-1.25PX60-30

main91512-61065iAZT250..5F¥180200301-200712

*10-1.25PX65-30

main91619-61255iZZT25#..5F¥120200301-200304

*12-1.25PX55-30

main91642-81055iZZT25#..5F¥220200301-200304

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iZZT25#..5F¥110200301-200604

*8-1.25PX45-27.5

main90105-08126iAZT250,CDT250..5F¥190200301-200604

*8-1.25PX45-27.5

main90105-08353iZZT25#..5F¥100200301-200604

*8-1.25PX50-30

main90105-08430iZZT25#..5F¥100200409-200604

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iZZT25#..5F¥180200301-200508

main90341-18033iADT251,AZT250,CDT250..MTM¥190200301-200604

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iZZT250;ZZT251..LHD..5F..ELEGT;ZZT251..5F..(ENTRY,TEC)¥110200301-200604

main90430-W0001iZZT25#..5F200505-200604

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iZZT25#..5F¥370200301-200604

main90930-03148iAZT250,CDT250..5F¥1,650200301-200606

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iAZT250,CDT250..5F¥110200301-200606

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-0D010iZZT25#..5F200301-200604

sub33102-12021¥9,800

main33102-12041iAZT250,CDT250..5F¥4,940200301-200306

sub33102-12042¥4,950

main33102-12042iAZT250,CDT250..5F¥4,950200306-200404

sub33102-12043¥4,950

main33102-12043iAZT250,CDT250..5F¥4,950200404-200604

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iZZT25#..5F¥180200301-200604

main90341-18033iZZT25#..5F¥190200508-200607

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iADT25#,AZT250..MTM¥110200301-200604

main90430-W0001iZZT25#..5F200505-200604

33111CASE, MANUAL TRANSMISSION

main33101-20090iAZT250,CDT250..5F¥40,900200301-200606

main33101-42040iAZT250..5F200606-200811

main33111-05010iZZT251..5F200301-200601

sub33111-05020

main33111-05020iZZT251..5F200601-200702

sub33111-05021

sub33295-52010¥230

sub90201-08049¥90

main33111-05021iZZT25#..5F200702-200811

sub33111-12300¥35,000

sub33102-12021¥9,800

sub90253-11001¥120

main33111-20190iADT251¥49,300200504-200511

sub33111-42050

main33111-42050iADT251200511-200808

sub33111-42060

sub90341-18019¥210

main33111-42060iADT25#200808-200811

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iADT251,AZT250,CDT250,ZZT25#..MTM¥120200301-200604

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33107-20010iAZT250,CDT250..5F200507-200604

main33117-20020iAZT250,CDT250..5F¥1,950200301-200507

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-W0036iAZT250..5F200307-200604

main91641-H0820iAZT250,CDT250..5F¥90200301-200307

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630iAZT250..5F¥100200301-200604

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20040iADT251¥870200504-200604

main33124-20050iZZT25#..5F¥440200301-200604

main33124-28050iAZT250..5F¥1,140200301-200604

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iZZT25#..5F¥720200301-200604

main33124-28060iAZT250,CDT250..5F¥1,150200301-200604

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830iAZT250,CDT250..5F¥100200301-200604

main91611-G0820iZZT25#..5F¥160200301-200604

33143GBAFFLE, TRANSMISSION OIL

main33143-42010iAZT250..5F200606

33143HBOLT(FOR TRANSMISSION OIL BAFFLE)

main90119-08439iAZT250..5F¥260200606

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iADT251,AZT250,CDT250..MTM¥1,180200301-200604

main33403-35230iZZT25#..5F¥1,180200301-200604

33403LRING, O

main96711-24018iADT251,AZT250,CDT250..MTM¥160200301-200604

main96711-24030iZZT25#..5F¥170200301-200604

4301

4302

8401

90119W0032

main90119-W0032¥100

25 parts on this diagram · 3 diagrams in section
