TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

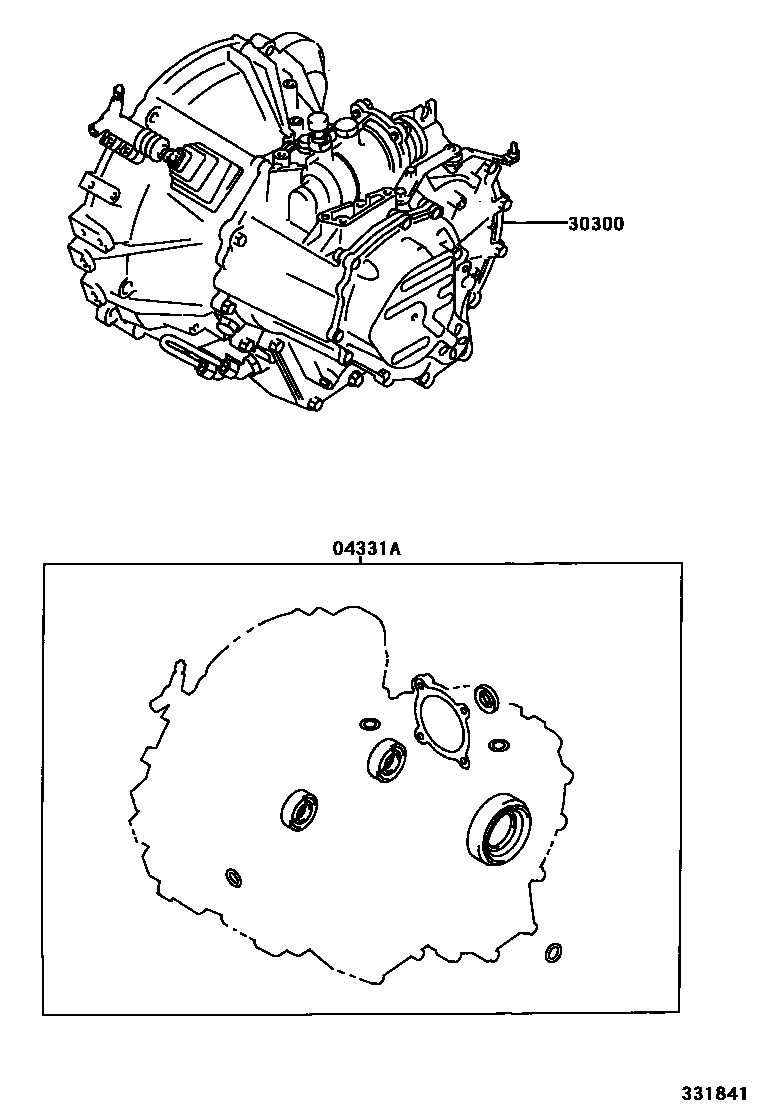

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-05060i200411-200507
sub04331-05080
main04331-05070i200411-200507
sub04331-05090
main04331-05080i200508-200604
sub04331-05081
main04331-05090i200508-200604
sub04331-05101
main04331-20090i200301-200411
sub04331-52520
main04331-20100i200301-200411
sub04331-12270
main04331-20130i200303-200411
sub04331-02060
main04331-20140i200301-200411
sub04331-12270
main04331-20200i200504-200604
main04331-20240i200604
main04331-28020i200301-200411
sub04331-64011
main04331-33020i200411-200509
sub04331-64011
main04331-64011i200509-200604
30300TRANSAXLE ASSY, MANUAL
main30300-05010i200301-200308
C50
sub30300-05011
main30300-05011i200308-200604
C50
sub30300-12E90
main30300-05020i200301-200308
C250,TYPE B:REFER 33-07
sub30300-05021
main30300-05021i200604
C250
sub30300-12F00
main30300-05021i200308-200604
C250,TYPE B:REFER 33-07
sub30300-12F00
main30300-05030i200303-200308
C50
main30300-05040i200303-200308
C250,TYPE A:REFER 33-07
main30300-20A00i200301-200308
E354
sub30300-2D091
main30300-20A10i200301-200308
E354
sub30300-2D101
main30300-2D091i200308-200606
E354
sub30300-2D092
main30300-2D092i200606
E354
main30300-2D101i200308-200606
E354
sub30300-2D102
main30300-2D102i200606
E354
main30300-2D110i200303-200604
E357
main30300-2D140i200504-200510
EA60
sub30300-2D141
main30300-2D141i200510-200604
EA60
main30300-2D150i200504-200510
EA61
sub30300-2D151
main30300-2D151i200510-200604
EA61

2 parts on this diagram · 3 diagrams in section
