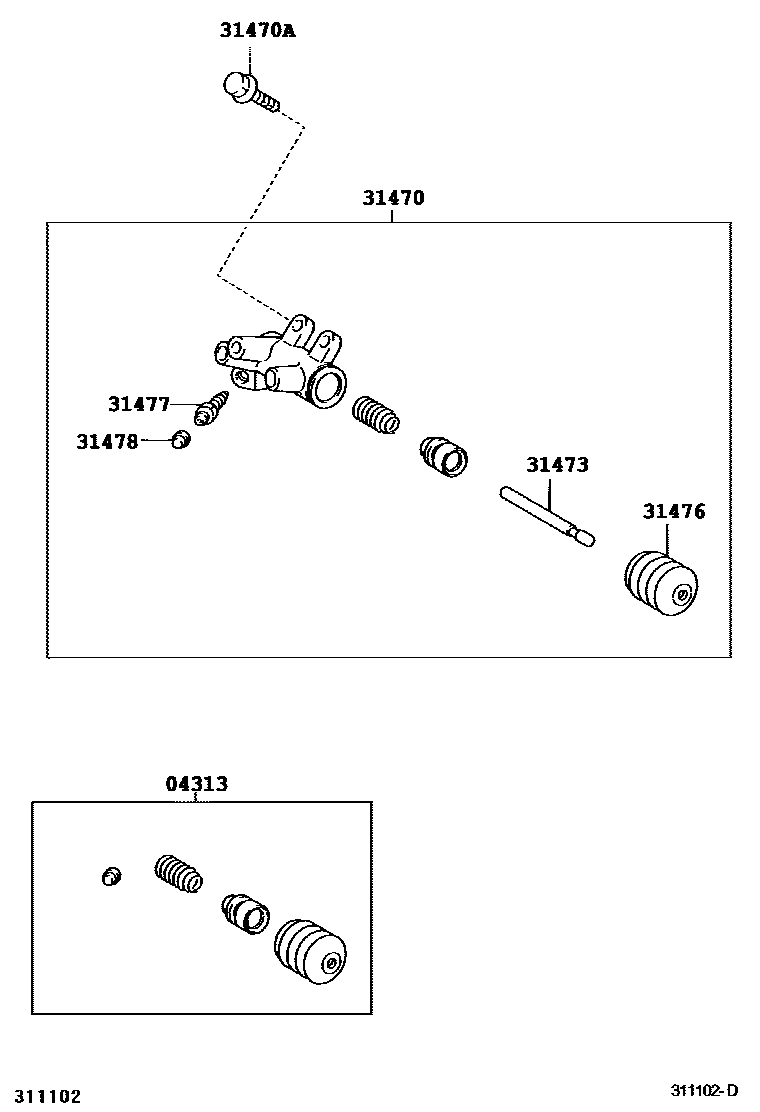

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iAZT250,CDT250..5F200301-200407

main04313-28020iZZT25#..5F200301-200604

main04313-52020iAZT250..5F200407-200604

main04313-53010iADT251200504-200604

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12130iZZT25#..5F200301-200604

main31470-12190iADT25#200705

main31470-20240iADT25#200504-200705

sub31470-12190

main31470-32022iCDT250200303-200406

sub31470-32023

main31470-32023iCDT250200406-200604

main31470-42030iAZT250..5F200301-200407

sub31470-42031

main31470-42031iAZT250..5F200407-200604

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCDT250200303-200604

*8-1.25PX25-20.1

main90119-W0028iAZT250,ZZT25#..5F200304-200604

*8-1.25PX22-17.1

main91611-60822iADT251200301-200604

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iADT25#,ZZT25#..MTM200301-200604

main31473-22010iCDT250200301-200407

main31473-22030iAZT250..5F200407-200604

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iADT251,AZT250,CDT250,ZZT25#..MTM200301-200604

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iADT251,AZT250,CDT250,ZZT25#..MTM200301-200604

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iADT251,AZT250,CDT250,ZZT25#..MTM200301-200604

7 parts on this diagram · 2 diagrams in section
