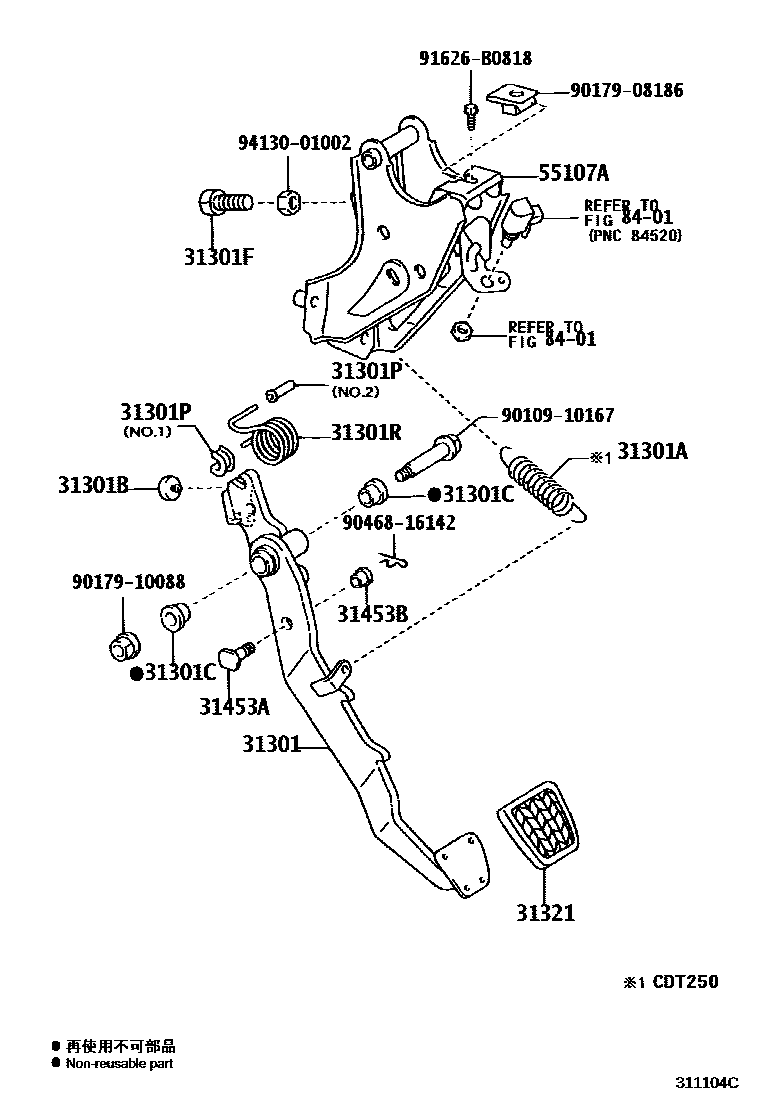

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-05050iAZT250..RHD..5F200604

main31301-05060iAZT250..LHD..5F200301-200604

main31301-05070iZZT25#..LHD..5F200301-200604

main31301-05080iADT251,CDT250..LHD200303-200604

main31301-05090iZZT25#..RHD..5F200301-200604

main31301-05100iADT251,CDT250..RHD200303-200604

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZZT25#..LHD..5F200604

main90507-14050iZZT25#..RHD..5F200301-200604

main90507-17004iCDT250..LHD200303-200604

main90507-19005iCDT250..RHD200303-200604

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iADT251,AZT250,CDT250,ZZT25#..RHD..MTM200301-200604

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iADT251,AZT250,CDT250,ZZT25#..MTM200301-200604

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iADT251,AZT250,CDT250,ZZT25#..MTM200301-200604

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iADT25#,AZT250..MTM200604

NO.1

main90389-05019iADT25#,AZT250..MTM200604

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iAZT250..5F200301-200604

main90949-03122iCDT250200303-200504

main90949-03138iADT251200504-200604

main90949-03143iCDT250200505-200604

31321PAD, CLUTCH PEDAL

main31321-52010iADT25#,AZT250,ZZT25#..MTM200604

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iADT25#,AZT250,ZZT25#..MTM200604

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iADT251,AZT250,CDT250,ZZT25#..MTM200301-200604

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02050iZZT25#..RHD..5F200604

main55107-02070iZZT25#..LHD..5F200604

main55107-05070iADT251,AZT250,CDT250..RHD..MTM200301-200604

main55107-05080iADT251,AZT250,CDT250..LHD..MTM200301-200604

8401

9010910167

main90109-10167

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91626B0818

main91626-B0818

9413001002

main94130-01002

18 parts on this diagram · 11 diagrams in section
