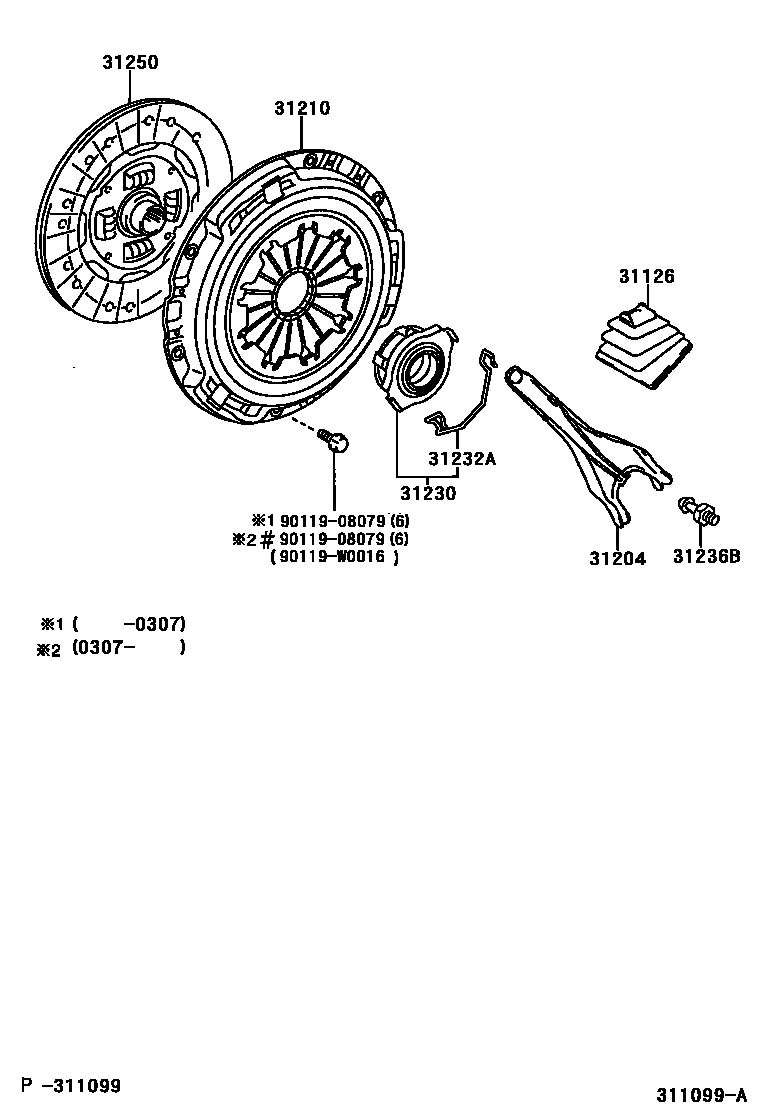

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0D010iZZT25#..5F200301-200604

sub31126-12051

main31126-20080iADT25#200303-200604

main31126-32010iAZT250..5F200301-200604

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZT25#..5F200301-200604

main31204-20100iAZT250..5F200301-200604

main31204-20131iCDT250200303-200604

main31204-20140iADT25#200504-200604

31210COVER ASSY, CLUTCH

main31210-05014iZZT250200301-200504

sub31210-05015

main31210-05015iZZT250200505-200712

sub31210-05016

main31210-05016iZZT250200801

main31210-05033iAZT250..5F200301-200604

main31210-05041iZZT251..5F200301-200504

sub31210-05042

main31210-05042iZZT251..5F200505-200712

sub31210-05043

main31210-05043iZZT251..5F200801

main31210-05050iCDT250200303-200505

sub31210-05051

main31210-05051iCDT250200506-200604

31230BEARING ASSY, CLUTCH RELEASE

main31230-05012iZZT25#..5F200301-200604

main31230-05030iAZT250..5F200301-200604

main31230-20191iCDT250200303-200604

main31230-20200iADT25#200504-200604

31232ACLIP, RELEASE BEARING HUB

main31232-05010iAZT250..5F200301-200604

main31232-05011iZZT25#..5F200301-200604

main31232-20031iADT251,CDT250200303-200604

31236BSUPPORT, RELEASE FORK

main31236-12020iZZT25#..5F200301-200604

main31236-20060iAZT250..5F200301-200604

main31236-20080iADT251,CDT250200303-200604

31250DISC ASSY, CLUTCH

main31250-05070iCDT250200303-200508

main31250-05080iAZT250..5F200301-200407

sub31250-05081

main31250-05081iAZT250..5F200408-200604

main31250-05100iZZT25#..5F200301-200407

sub31250-05101

main31250-05101iZZT25#..5F200408-200604

main31250-05110iCDT250200508-200604

9011908079

main90119-08079

90119W0016

main90119-W0016

9 parts on this diagram · 3 diagrams in section
