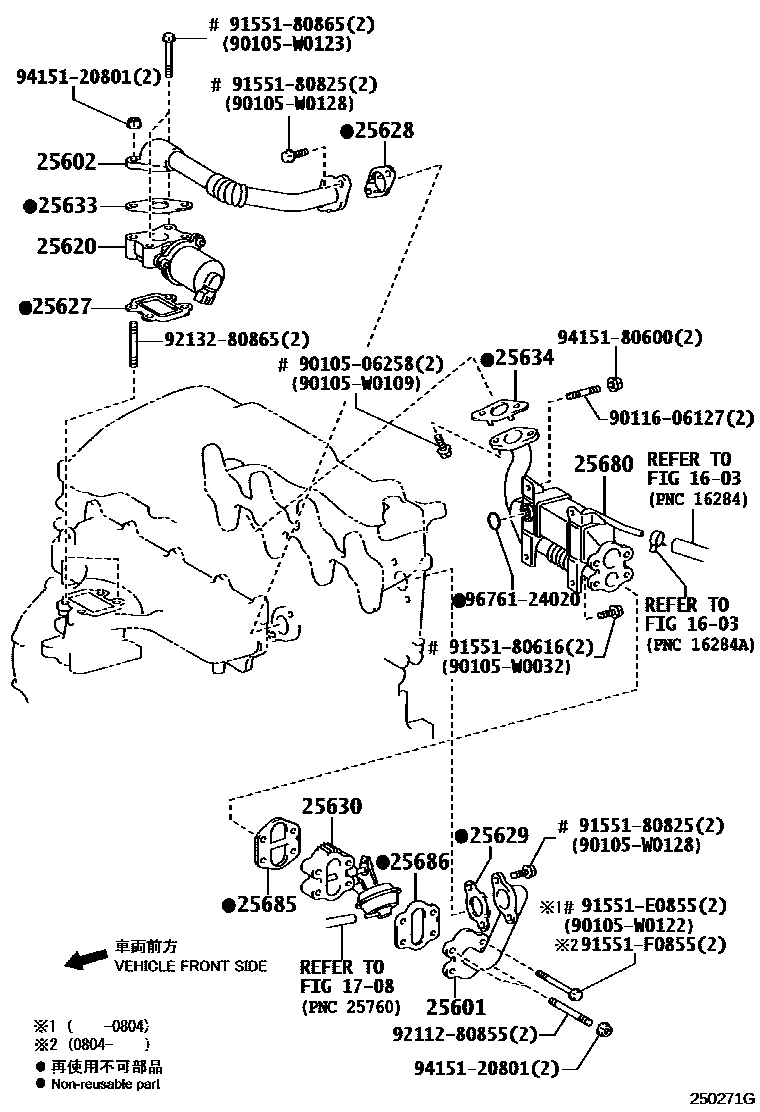

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1W(DPF) 0006 1 0007 1

1603

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-27020i1CDFTV..CDT250..DCR200303-200604

main25611-26020i2ADFHV..ADT251200504-200604

main25611-26020i1ADFTV..ADT250..LHD200609

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

25602PIPE SUB-ASSY, EGR, NO.2

main25612-0R010i2ADFTV..ADT251200504-200602

sub25612-26030

main25612-0R020i2ADFHV..ADT251200504-200602

sub25612-26030

main25612-26030i2AD#..ADT251200602-200604

25620VALVE ASSY, EGR

main25620-0R010i2AD#..ADT251200504-200604

(L)

sub25620-0R011

main25620-0R010i2AD#..ADT251200604-200702

sub25620-0R011

main25620-0R011i2AD#..ADT251200702-200903

sub25620-0R012

main25620-0R020i1ADFTV..ADT250200605-200702

sub25620-26110

main25620-0R021i1ADFTV..ADT250200702-200903

sub25620-0R022

main25620-26090i2AD#..ADT251200504-200604

(J)

sub25620-26091

main25620-27090i1CDFTV..CDT250..DCR200303-200604

main25620-27100i1CDFTV..CDT250..DCRL200309-200411

25627GASKET, EGR VALVE

main25627-0R010i1ADFTV,2AD#..ADT25#200504-200604

25628GASKET, EGR INLET

main25628-0R010i1ADFTV,2AD#..ADT25#200504-200807

sub25628-26020

main25628-26020i1ADFTV,2AD#..ADT25#200807-200811

main25628-27010i1CDFTV..CDT250..DCR200303-200604

main25628-27020i1CDFTV..CDT250..DCRL200309-200411

25629GASKET, EGR VALVE ADAPTER

main25629-0R010i1ADFTV,2AD#..ADT25#200504-200604

25630VALVE ASSY, EGR, NO.2

main25630-26010i2ADFHV..ADT251200504-200812

sub25630-26020

main25630-26010i1ADFTV..ADT250..LHD200609-200812

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

sub25630-26020

25633GASKET, EGR VALVE

main25633-0R010i2AD#..ADT251200504-200604

25634GASKET, EGR PIPE

main25634-0R010i1ADFTV,2AD#..ADT25#200504-200604

25680COOLER ASSY, EGR

main25680-0R010i2ADFTV..ADT251200504-200805

sub25680-0R011

sub16284-26040

main25680-0R011i1ADFTV,2ADFTV..ADT25#200805

sub25680-26041

main25680-0R020i2ADFHV..ADT251200504-200805

sub25680-0R021

sub16284-26040

main25680-0R020i1ADFTV..ADT250..LHD200609-200805

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

sub25680-0R021

sub16284-26040

main25680-0R021i2ADFHV..ADT251200805

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

sub25680-26021

25685GASKET, EGR COOLER, NO.1

main25685-0R010i2ADFHV..ADT251200504-200604

sub25685-0R011

main25685-0R010i1ADFTV..ADT250..LHD200609

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

sub25685-0R011

main25685-27010i1CDFTV..CDT250200303-200604

25686GASKET, EGR COOLER, NO.2

main25686-0R010i1ADFTV..ADT250..LHD200609

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

main25686-0R010i2ADFHV..ADT251200504-200604

main25686-27010i1CDFTV..CDT250..DCR200303-200604

main25686-27020i1CDFTV..CDT250..DCRL200309-200411

9010506258

main90105-06258

90105W0032

main90105-W0032

90105W0109

main90105-W0109

90105W0122

main90105-W0122

90105W0123

main90105-W0123

90105W0128

main90105-W0128

9011606127

main90116-06127

9155180616

main91551-80616

9155180825

main91551-80825

9155180865

main91551-80865

91551E0855

main91551-E0855

91551F0855

main91551-F0855

9211280855

main92112-80855

9213280865

main92132-80865

9415120801

main94151-20801

9415180600

main94151-80600

9676124020

main96761-24020

31 parts on this diagram · 7 diagrams in section
