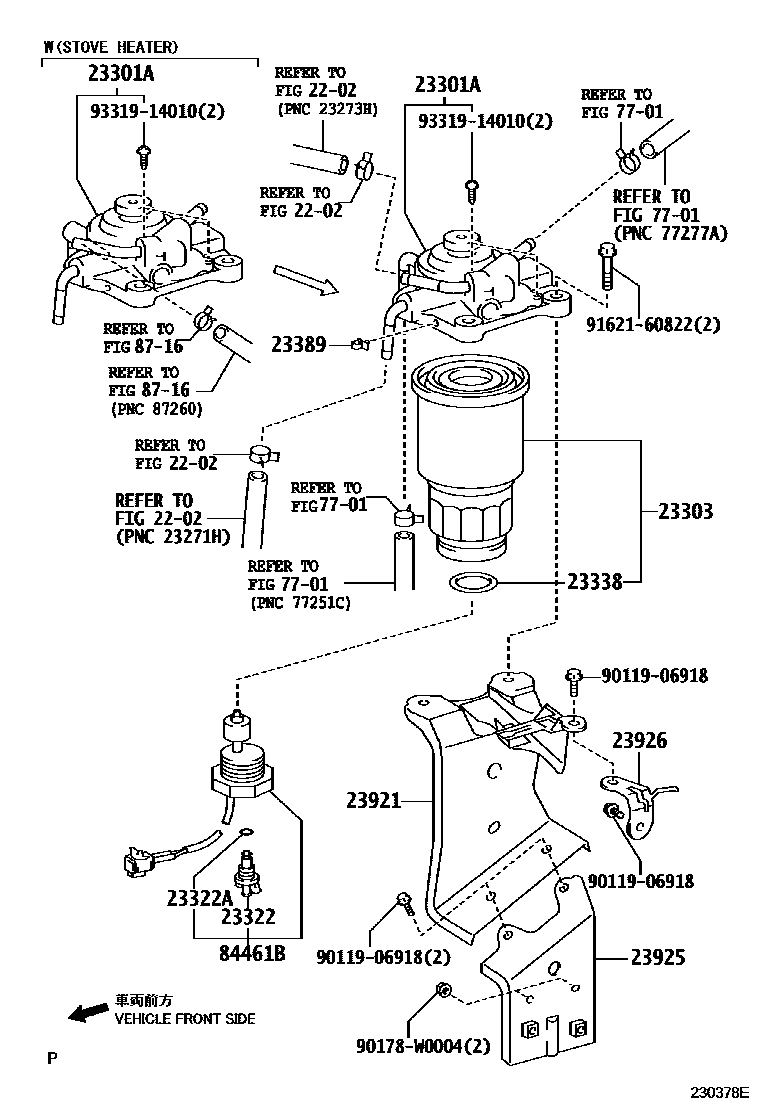

FUEL FILTER

0001 1 0002 1

2202

23301ACAP ASSY, FUEL FILTER

main23380-0G031i1CDFTV..CDT250200303

sub23380-0G032

main23380-0R010i2AD#..ADT251200504-200811

sub23380-0R011

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1CDFTV..CDT250200303-200503

main23390-30180i1CDFTV..CDT250200503

main23390-33020i2AD#..ADT251200504-200811

sub23390-33060

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i2AD#..ADT251200303-200811

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1CDFTV..CDT250200303-200811

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2AD#..ADT251200303-200811

23389CLAMP, FUEL FILTER

main23389-0G021i2AD#..ADT251200303-200811

23921SUPPORT, FUEL FILTER

main23921-27100i1CDFTV..CDT250200303-200604

23925STAY, FUEL FILTER SUPPORT

main23925-0G010i1CDFTV..CDT250200303-200604

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0G010i1CDFTV..CDT250200303-200604

7701

84461BSWITCH, LEVEL WARNING

main84461-20100iCDT250200303-200604

8716

9011906918

main90119-06918

90178W0004

main90178-W0004

9162160822

main91621-60822

9331914010

main93319-14010

17 parts on this diagram · 2 diagrams in section
