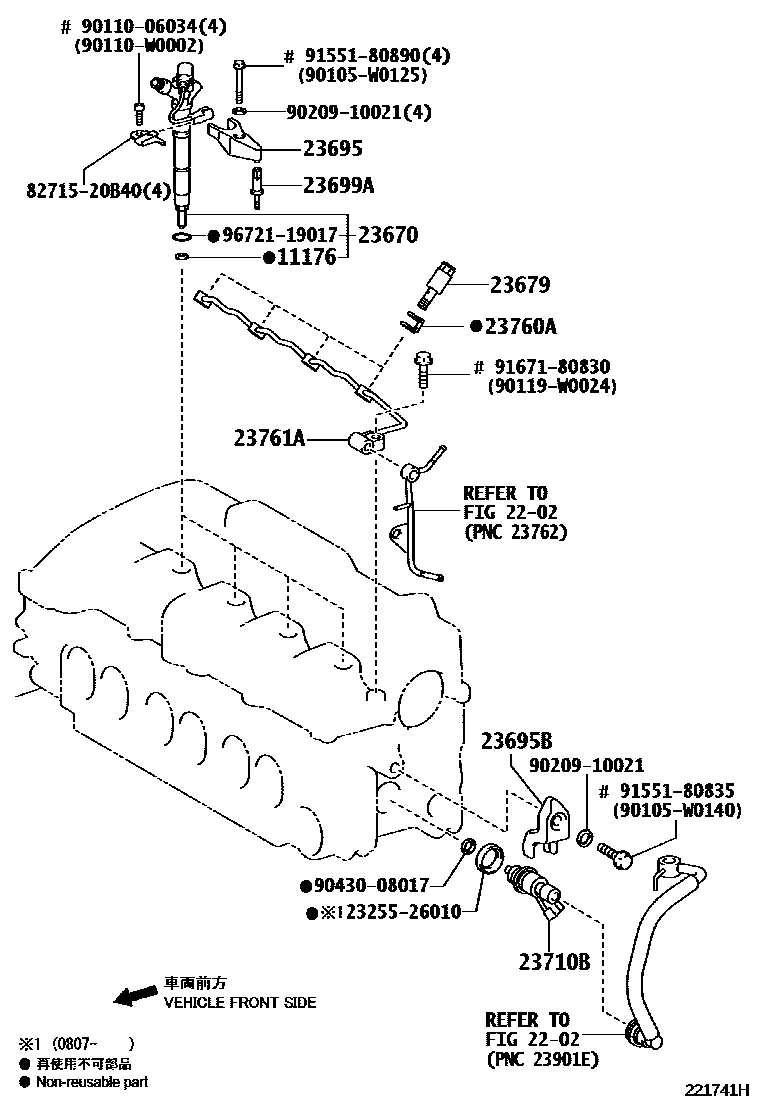

INJECTION NOZZLE

0001 1 0002 1 0003 1W(DPF) 0004 1 0005 1

11176SEAT, INJECTION NOZZLE

main11176-26010i1ADFTV,2AD#..ADT25#200504-200811

sub11176-51010

main11176-27010i1CDFTV..CDT250200303-200604

sub11176-27011

2202

23670INJECTOR ASSY

main23670-09030i1CDFTV..CDT250..RHD..ELEGT..DCR200303-200604

sub23670-09031

main23670-09130i2ADFTV..ADT251200504-200712

sub23670-09260

main23670-09180i1ADFTV..ADT250200605-200712

sub23670-09280

main23670-09260i2ADFTV..ADT251200712

main23670-09280i1ADFTV..ADT250200712

main23670-29045i1CDFTV..CDT250..DCRL200309-200411

sub23670-29065

main23670-29055i2ADFHV..ADT251200504-200710

sub23670-29105

main23670-29105i2ADFHV..ADT251200710

23679SCREW, INJECTOR FOLLOW

main23679-0G010i1CDFTV..CDT250..DCR200303-200604

sub23679-0R010

main23679-0R010i2ADFTV..ADT251200504-200604

main23679-26010i2ADFHV..ADT251200504-200604

sub23679-26020

main23679-30020i1CDFTV..CDT250..DCRL200309-200411

sub23679-30021

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R010i1ADFTV,2ADFTV..ADT25#200504-200705

sub23695-0R011

main23695-0R011i1ADFTV,2ADFTV..ADT25#200705-200707

sub23695-0R012

main23695-0R012i1ADFTV,2ADFTV..ADT25#200707

main23695-0R020i2ADFHV..ADT251200504-200808

sub23695-0R021

main23695-0R021i2ADFHV..ADT251200808

main23695-27020i1CDFTV..CDT250..DCR200303-200604

main23695-27020i1CDFTV..CDT250..DCRL200309-200411

NO.1

main23695-28010i1CDFTV..CDT250..DCRL200309-200411

NO.2

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-26011i2ADFHV..ADT251200504-200604

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0R010i2ADFTV..ADT251200504-200604

(L)

sub23699-26010

main23699-0R010i1ADFTV,2ADFTV..ADT25#200604

sub23699-26010

main23699-0R021i2ADFHV..ADT251200504-200604

(L)

main23699-0R021i2ADFHV..ADT251200604

main23699-26010i2ADFTV..ADT251200504-200604

(J)

main23699-26021i2ADFHV..ADT251200504-200604

(J)

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-26010i2ADFHV..ADT251200504-200704

sub23710-26011

main23710-26011i2ADFHV..ADT251200704

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

sub23710-26012

main23710-27010i1CDFTV..CDT250..DCRL200309-200411

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-27010i1CDFTV..CDT250..DCR200303-200604

main23761-27020i1CDFTV..CDT250..DCRL200309-200411

23760AGASKET

main90904-30008i2ADFHV..ADT251200303-200604

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R011i1ADFTV,2ADFTV..ADT25#200504-200811

sub23761-26010

main23761-0R020i2ADFHV..ADT251200504-200510

main23761-0R030i2ADFHV..ADT251200510-200811

2325526010VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1

main23255-26010

8271520B40BRACKET,WIRING HARNESS CLAMP

main82715-20B40

90105W0125

main90105-W0125

90105W0140

main90105-W0140

9011006034

main90110-06034

90110W0002

main90110-W0002

90119W0024

main90119-W0024

9020910021

main90209-10021

9043008017

main90430-08017

9155180835

main91551-80835

9155180890

main91551-80890

9167180830

main91671-80830

9672119017

main96721-19017

24 parts on this diagram · 5 diagrams in section
