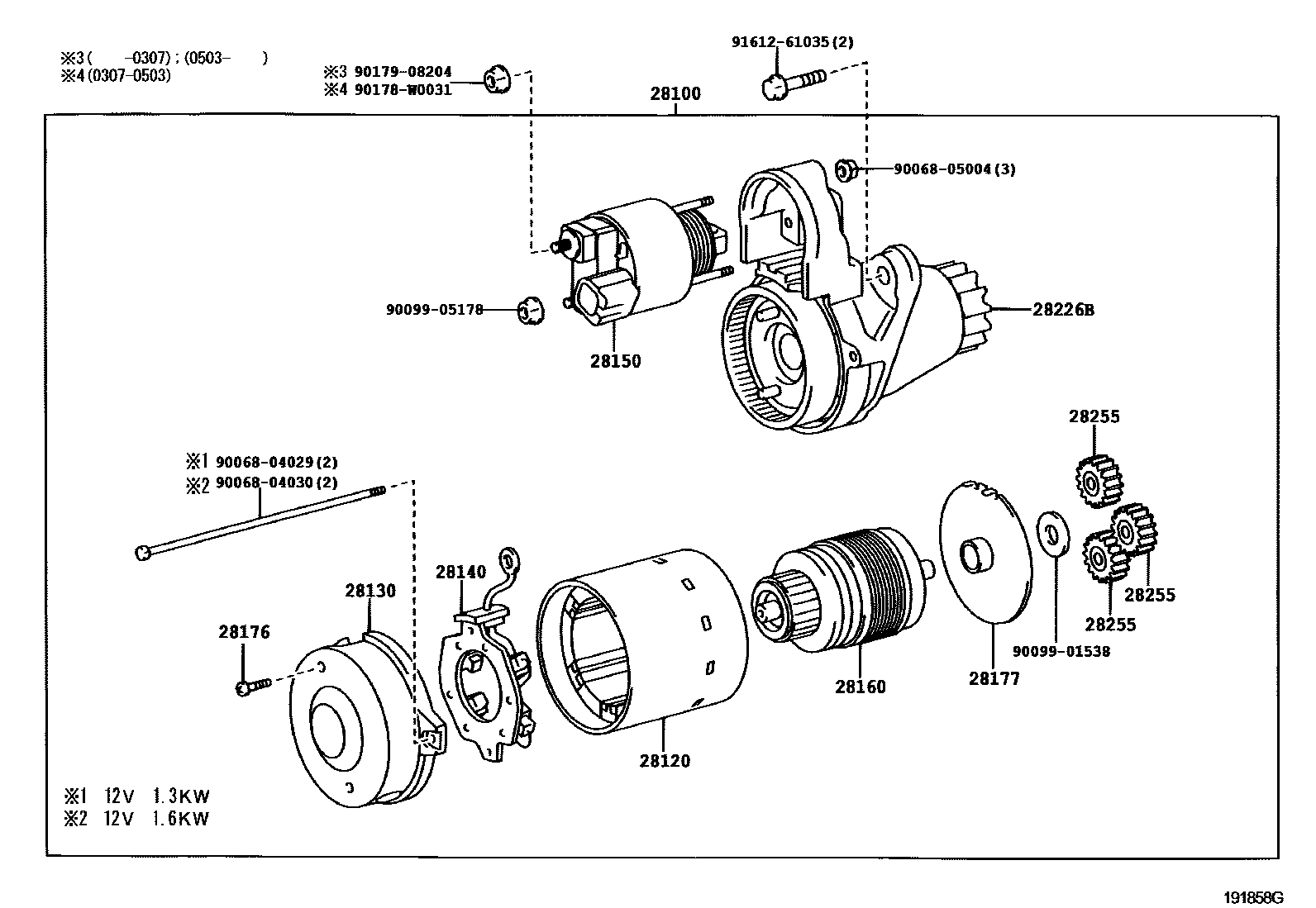

STARTER

0001 112V 1.3KW,1.6KW 0002 112V 1.3KW,1.6KW 0003 112V 1.3KW 0004 112V 1.3KW 0005 112V 2.0KW 0006 112V 2.0KW

28100STARTER ASSY

main28100-0D090i1ZZFE,3ZZFE..ZZT25#200301-200612

12V 1.3KW

sub28100-0D180

main28100-0D180i1ZZFE,3ZZFE..ZZT25#200701

12V 1.3KW

main28100-0G020i1CDFTV..CDT250200303-200604

12V 2.0KW

main28100-0G040i1ADFTV,2AD#..ADT25#200504-200612

12V 2.0KW

sub28100-0R010

main28100-0H050i1AZFE..AZT250;1AZFSE..AZT250..5F200301-200604

12V 1.3KW

sub28100-0H051

main28100-0H051i1AZFE..AZT250;1AZFSE..AZT250..LHD..5F200604-200612

12V 1.3KW

sub28100-0H100

main28100-0H051i1AZFSE..AZT250..RHD..5F200604-200612

12V 1.3KW,ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

sub28100-0H100

main28100-0H060i1AZFSE..AZT250..5F200301-200604

12V 1.6KW,EUROPE-COLD SPEC

sub28100-0H061

main28100-0H060i1AZFSE,2AZFSE..AZT25#..ATM200301-200604

12V 1.6KW

sub28100-0H061

main28100-0H061i1AZFSE..AZT250..LHD..5F200604-200612

12V 1.6KW

sub28100-0H110

main28100-0H061i2AZFSE..AZT251;1AZFSE..AZT250..RHD;1AZFSE..AZT250..LHD..4FC200604-200612

12V 1.6KW,COLD AREA SPEC

sub28100-0H110

main28100-0H100i1AZFE..AZT250;1AZFSE..AZT250..LHD..5F200701

12V 1.3KW

main28100-0H100i1AZFE..AZT250;1AZFSE..AZT250..LHD..5F200701

12V 1.3KW,ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main28100-0H110i2AZFSE..AZT251;1AZFSE..AZT250..RHD;1AZFSE..AZT250..LHD..4FC200701

12V 1.6KW

main28100-0H110i2AZFSE..AZT251;1AZFSE..AZT250..RHD;1AZFSE..AZT250..LHD..4FC200701

12V 1.6KW,COLD AREA SPEC

main28100-0R010i1ADFTV,2AD#..ADT25#200701

12V 2.0KW

sub28100-0R030

28120YOKE ASSY, STARTER

main28120-0D090i1AZFSE..AZT250..LHD..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#200604-200701

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

sub28100-0DH03

sub28100-0HH02

main28120-0D090i1AZFSE..AZT250..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#200301-200604

sub28100-0DH03

sub28100-0HH02

main28120-0D180i1ZZFE,3ZZFE..ZZT25#200701-200811

main28120-0G020i2AD#,1CDFTV..ADT251,CDT250200303-200701

main28120-0H060i1AZFSE..AZT250..LHD..5F200604-200701

COLD AREA SPEC

sub28100-0HH03

main28120-0H060i1AZFSE,2AZFSE..AZT25#..ATM200301-200604

EUROPE-COLD SPEC

sub28100-0HH03

main28120-0H060i2AZFSE..AZT251;1AZFSE..AZT250..RHD;1AZFSE..AZT250..LHD..4FC200604-200701

COLD AREA SPEC&ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

sub28100-0HH03

main28120-0H100i1AZFE..AZT250;1AZFSE..AZT250..LHD..5F200701-200811

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main28120-0H110i2AZFSE..AZT251;1AZFSE..AZT250..RHD;1AZFSE..AZT250..LHD..4FC200701-200811

COLD AREA SPEC&ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main28120-0H110i1AZFSE..AZT250..LHD..5F200701-200811

COLD AREA SPEC

main28120-38020i1ADFTV,2AD#..ADT25#200701-200811

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0D090i1ZZFE,3ZZFE..ZZT25#200301-200701

sub28100-0DH02

main28130-0G020i1CDFTV..CDT250200303-200604

main28130-0G040i1ADFTV,2AD#..ADT25#200504-200701

main28130-0R010i1ADFTV,2AD#..ADT25#200701-200811

main28130-37050i1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#200701-200811

28140HOLDER ASSY, STARTER BRUSH

main28140-0D090i1ZZFE,3ZZFE..ZZT25#200301-200701

sub28100-0DH02

sub28100-0JH03

sub28100-0QH03

main28140-0H100i1AZ#,2AZFSE..AZT25#200701-200811

main28140-37050i1ZZFE,3ZZFE..ZZT25#200701-200811

28150SWITCH ASSY, MAGNET STARTER

main28150-37020i1ADFTV,1AZ#,2AD#,2AZFSE..ADT25#,AZT25#200701

main28150-37050i1ZZFE,3ZZFE..ZZT25#200701

main28226-0D090i1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#200604-200701

sub28100-0DH05

sub28100-0HH08

sub28100-0HH09

main28226-0D090i1AZFSE..AZT250..5F200301-200604

EUROPE-COLD SPEC

sub28100-0DH05

sub28100-0HH08

sub28100-0HH09

main28226-0G020i2AD#..ADT251200504-200701

28160ARMATURE ASSY, STARTER

main28160-0D090i1AZFSE..AZT250..RHD..5F200604-200701

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main28160-0D090i1AZFSE..AZT250..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#200301-200604

main28160-0D180i1AZFSE..AZT250..LHD..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#200701

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main28160-0G020i1ADFTV,2AD#..ADT25#200303-200604

main28160-0H060i1AZFSE..AZT250..LHD..5F200604-200701

COLD AREA SPEC

sub28100-0HH07

main28160-0H060i1AZFSE,2AZFSE..AZT25#..ATM200301-200604

EUROPE-COLD SPEC

sub28100-0HH07

main28160-37050i2AZFSE..AZT251;1AZFSE..AZT250..RHD;1AZFSE..AZT250..LHD..4FC200701

COLD AREA SPEC

sub28160-75210

28176SCREW, STARTER

main90068-00015i1AZ#,2AZFSE..AZT25#200301-200701

main90099-00323i1AZ#,2AZFSE..AZT25#200701

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i1ADFTV,2AD#..ADT25#200303-200811

main28177-37050i1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#200701-200811

28226BSTARTER KIT, REPAIR SERVICE

main28226-0D090i1AZFE..AZT250;1AZFSE..AZT250..5F200301-200604

NO.1

sub28100-0DH05

sub28100-0HH08

sub28100-0HH09

main28226-0G020i1CDFTV..CDT250200303-200604

main28226-0H050i1AZFSE,2AZFSE..AZT25#..ATM200301-200603

EUROPE-COLD SPEC

main28226-0H050i1AZFE..AZT250;1AZFSE..AZT250..5F200301-200604

NO.2

main28226-0H051i1AZ#,2AZFSE..AZT25#200604-200701

main28226-0H100i1AZ#,2AZFSE..AZT25#200701

28255GEAR, PLANET

main28255-0G020i1CDFTV..CDT250200303-200604

main28255-0G040i2AD#..ADT251200504-200811

main28255-37050i1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#200701-200811

9006804029

main90068-04029

9006804030

main90068-04030

9006805004

main90068-05004

9009901538

main90099-01538

9009905178

main90099-05178

90178W0031

main90178-W0031

9017908204

main90179-08204

9161261035

main91612-61035

18 parts on this diagram · 6 diagrams in section
