ALTERNATOR

0001 114V 100A 0002 112V 90A 0003 114V 80A,90A 0004 112V 90A 0005 112V 100A 0006 112V 100A 0007 112V 100A

27020ALTERNATOR ASSY

main27060-0D030i1ZZFE,3ZZFE..ZZT25#200301-200402

12V 80A

main27060-0D140i1ZZFE,3ZZFE..ZZT25#200402-200512

12V 90A,BOSCH

main27060-0D170i1ZZFE,3ZZFE..ZZT25#200512-200604

12V 90A,DENSO

main27060-0G011i1ADFTV,2AD#..ADT25#200504-200604

12V 100A

main27060-0H070i1AZ#,2AZFSE..AZT25#200301-200604

14V 100A

main27060-27090i1CDFTV..CDT250200303-200604

12V 100A

sub27060-27070

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE,3ZZFE..ZZT25#200301-200604

main90901-05004i1CDFTV..CDT250200303-200604

main91511-J0840i1AZ#,2AZFSE..AZT25#200301-200607

NO.1

main91512-81085i1AZ#,2AZFSE..AZT25#200301-200604

NO.2

main91551-80840i1AZ#,2AZFSE..AZT25#200608

NO.1

27039COVER, ALTERNATOR REAR END

main27039-0D030i1ZZFE,3ZZFE..ZZT25#200301-200512

main27039-0H060i1AZ#,2AZFSE..AZT25#200301-200811

main27039-27060i2AD#,1CDFTV..ADT251,CDT250200303-200706

main27039-27090i1ADFTV,2AD#..ADT25#200707-200811

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0D020i1ZZFE,3ZZFE..ZZT25#200301-200512

main27310-0H060i1AZ#,2AZFSE..AZT25#200301-200604

main27310-27050i1CDFTV..CDT250200303-200604

main27310-27090i2AD#..ADT251200504-200604

27312PLATE, RETAINER

main27312-72100i1AZ#,2AD#,2AZFSE,1CDFTV..ADT251,AZT25#,CDT250200301-200604

27330ROTOR ASSY, ALTERNATOR

main27330-0D020i1ZZFE,3ZZFE..ZZT25#200301-200402

main27330-0D110i1AZ#,2AZFSE..AZT25#200301-200604

main27330-0J020i1ZZFE,3ZZFE..ZZT25#200512-200604

main27330-30070i2AD#,1CDFTV..ADT251,CDT250200303-200604

27401STATOR SUB-ASSY ALTERNATOR W/RECTIFIER

main27401-0D010i1ZZFE,3ZZFE..ZZT25#200301-200512

main27401-0H030i1AZ#,2AZFSE..AZT25#200301-200604

27403PULLEY SET, ALTERNATOR

main27403-0D010i1ZZFE,3ZZFE..ZZT25#200301-200512

main27403-0H020i1AZ#,2AZFSE..AZT25#200301-200604

27404BEARING SET, ALTERNATOR

main27404-0D010i3ZZFE..ZZT250;1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY200301-200604

27702REGULATOR SUB-ASSY GENERATOR W/BRUSH

main27702-0D010i3ZZFE..ZZT250;1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY200301-200604

9009900169

main90099-00169

90178W0019

main90178-W0019

9017906158

main90179-06158

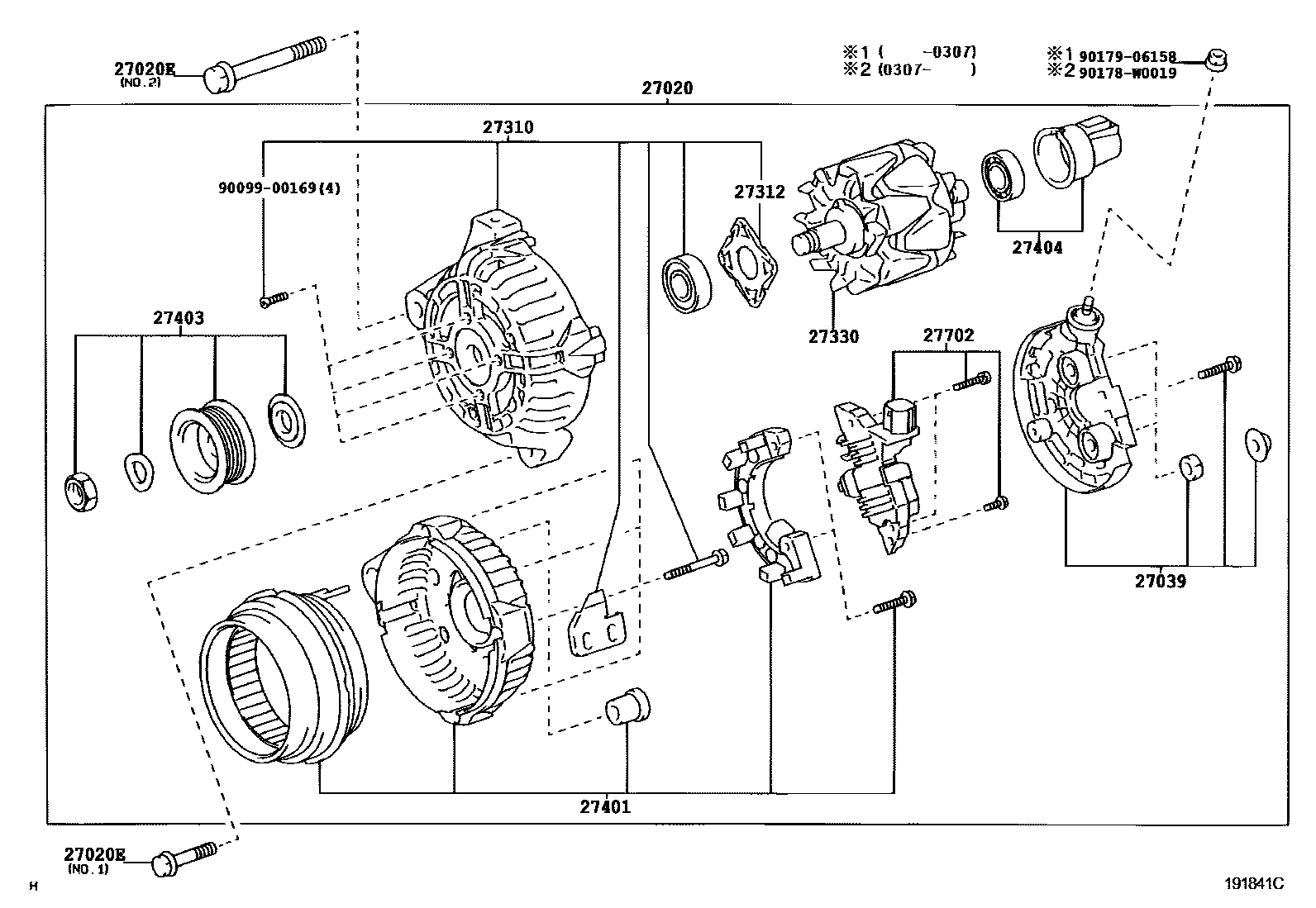

13 parts on this diagram · 7 diagrams in section
