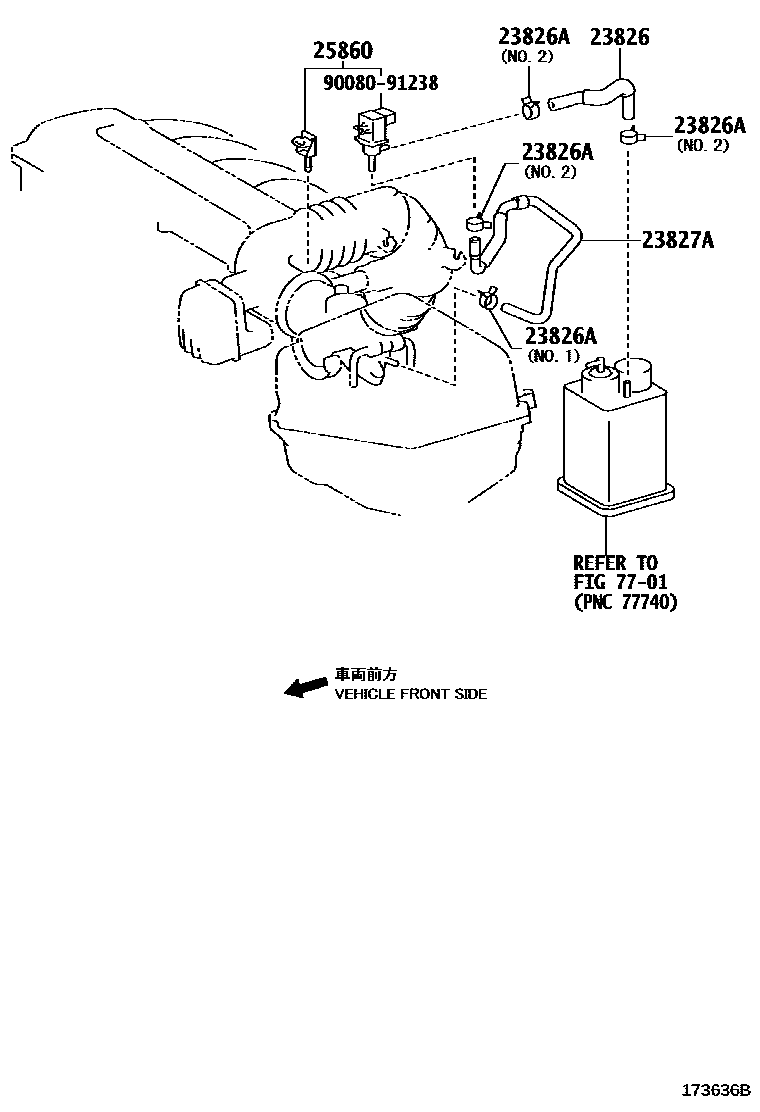

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1W(DPF) 0008 1 0009 1 0010 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-22110i1ZZFE,3ZZFE..ZZT25#200604

main23826-28100i1AZ#,2AZFSE..AZT25#200604

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-41000i1AZFE..AZT250200604-200811

NO.1

main96132-51100×3i1AZFE..AZT250200604-200811

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28110i1AZFSE,2AZFSE..AZT25#200301-200604

main23827-28150i1AZFE..AZT250200604

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0D040i1ZZFE,3ZZFE..ZZT25#200301-200604

main25860-0H040i1AZFE..AZT250200604-200811

main25860-0R010i2ADFHV..ADT251200604-200811

sub25860-0R011

main25860-28070i1AZFSE,2AZFSE..AZT25#200604-200811

7701

9008091238

main90080-91238
