EXHAUST PIPE

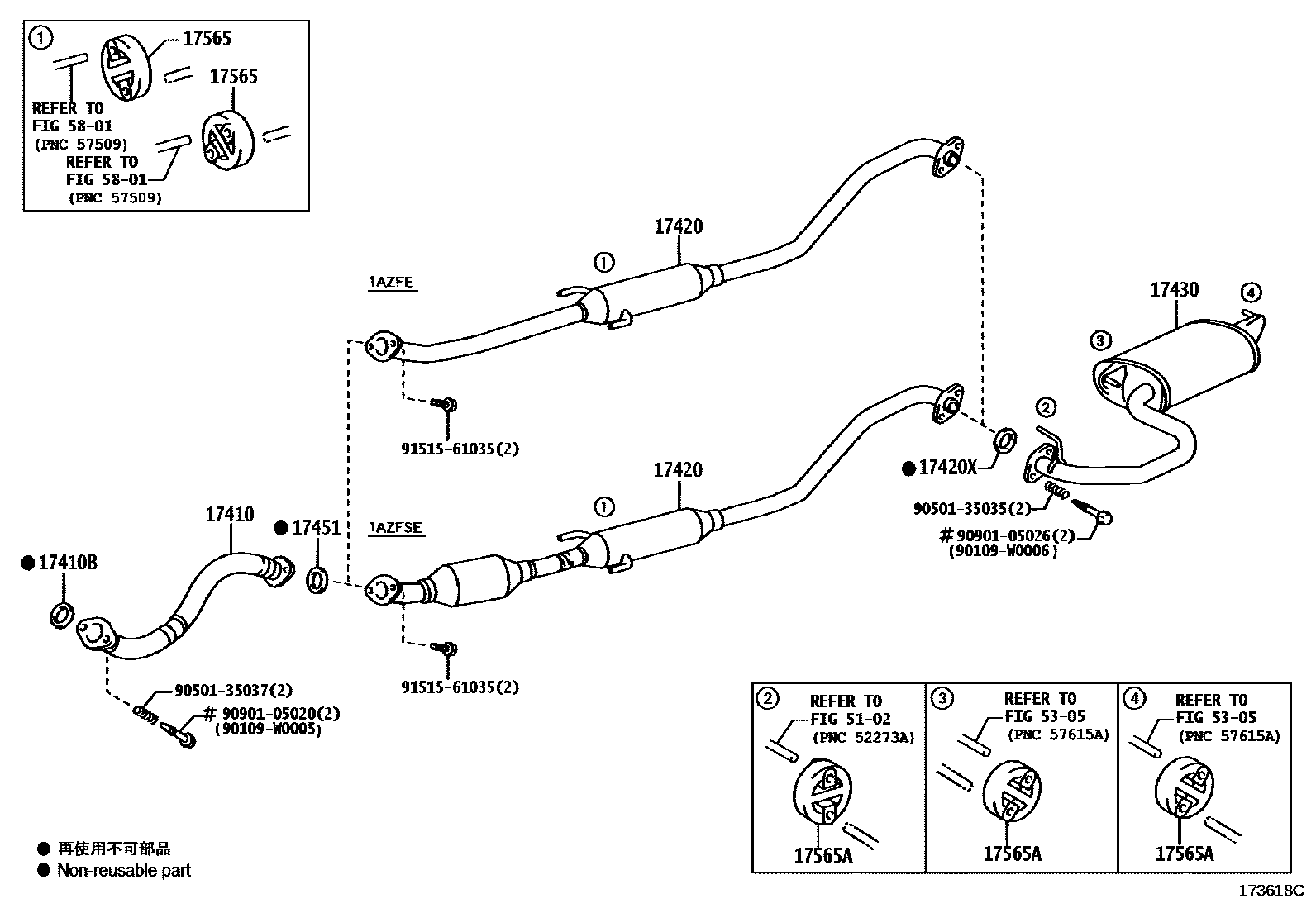

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D200i200301-200604

*114=TOYOTA/GA7GB7/Y

main17410-0G040i200303-200404

*115=TOYOTA/03-/Y

main17410-0G041i200405-200604

*114=TOYOTA/AB1AB2/Y

main17410-0G090i200309-200405

*115=TOYOTA/03-/N

main17410-0G091i200405-200411

*114=TOYOTA/AB1AB2/Y

main17410-0H070i200309-200604

main17410-0H080i200301-200604

main17410-0R010i200504-200604

*114=TOYOTA/AB9AC1/Y

main17410-0R020i200504-200604

*114=TOYOTA/AC2AC3/Y

main17410-0R080i200609

*114=TOYOTA/AC5AC6/Y,CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

17410BGASKET, EXHAUST PIPE

main17451-0D090i200301-200604

main17451-0H010i200301-200604

main17451-0R010i200504-200604

17420PIPE ASSY, EXHAUST, CENTER

main17420-0H050i200301-200604

*114/TOYOTA/U51U52/Y

main17420-0H060i200309-200604

*114/TOYOTA/U51U52/Y

main17420-0H070i200301-200604

17420XGASKET, EXHAUST PIPE, CENTER

main17451-0B010i200301-200604

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D220i200301-200604

main17430-0G050i200303-200604

main17430-0H050i200301-200604

main17430-0H100i200309-200604

main17430-0R010i200504-200604

17451GASKET, EXHAUST PIPE

main17451-02030i200301-200604

main17451-0B010i200303-200604

main17451-0R020i200504-200811

main90917-06078i200301-200604

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D060i200301-200604

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D030i200301-200604

5102

5305

5801

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9151561035

main91515-61035

18 parts on this diagram · 3 diagrams in section
