WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

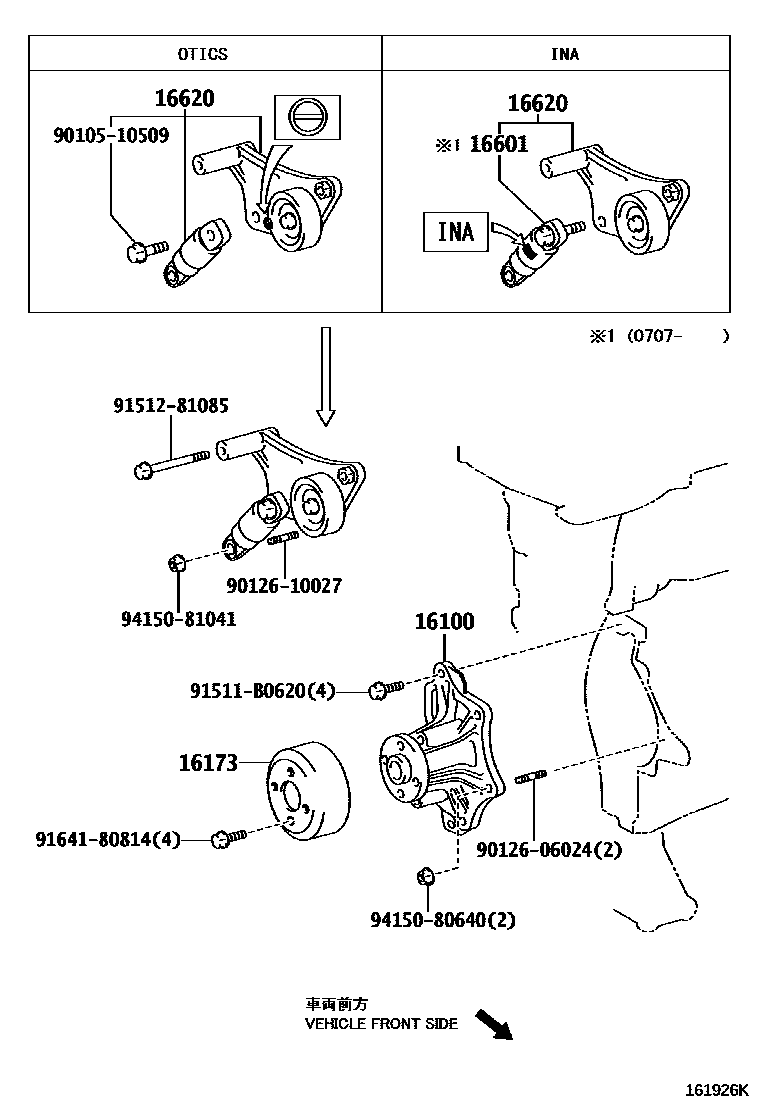

16100PUMP ASSY, ENGINE WATER

main16100-09130i1ZZFE,3ZZFE..ZZT25#200301-200402

TYPE A:REFER ILLUST.

sub16100-09310

main16100-09310i3ZZFE..ZZT250;1ZZFE..ZZT251..RHD;1ZZFE..ZZT251..LHD..(ELEGT,TEC);1ZZFE..ZZT251..LHD..WG..5F..ENTRY;1ZZFE..ZZT251..LHD..(LB,SED)..ENTRY200402-200811

(L),T/P C:REF.ILLUST

sub16100-29415¥11,300

main16100-09340i2AD#..ADT251200504-200604

sub16100-09341

main16100-28040i1AZ#,2AZFSE..AZT25#¥15,000200301-200701

sub16100-28041¥11,800

main16100-28041i1AZ#,2AZFSE..AZT25#¥11,800200701

main16100-29175i1ZZFE,3ZZFE..ZZT25#¥13,000200301-200308

TYPE B:REFER ILLUST.

sub16100-29415¥11,300

main16100-29185i1CDFTV..CDT250¥13,600200303-200604

main16100-29415i3ZZFE..ZZT250;1ZZFE..ZZT251..RHD;1ZZFE..ZZT251..LHD..(ELEGT,TEC);1ZZFE..ZZT251..LHD..WG..5F..ENTRY;1ZZFE..ZZT251..LHD..(LB,SED)..ENTRY¥11,300200402-200811

(J),T/P C:REF.ILLUST

main16100-29415i1ZZFE,3ZZFE..ZZT25#¥11,300200308-200402

TYPE C:REFER ILLUST.

16173PULLEY, WATER PUMP

main16173-28020i1AZ#,2AZFSE..AZT25#¥2,290200301-200604

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28041i1AZ#,2AZFSE..AZT25#¥10,100200707-200801

INA

sub16601-28050¥10,000

main16601-28050i1AZ#,2AZFSE..AZT25#¥10,000200801-200811

INA

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i2AD#..ADT251¥20,000200504-200604

main16620-0W093i1ZZFE,3ZZFE..ZZT25#¥29,100200610

main16620-0W110i1AZ#,2AZFSE..AZT25#¥29,100200605-200608

sub16620-28070¥29,100

main16620-22012i1ZZFE,3ZZFE..ZZT25#¥29,100200301-200610

sub16620-22013¥29,100

main16620-28011i1AZ#,2AZFSE..AZT25#¥29,100200301-200605

sub16620-0W110¥29,100

main16620-28070i1AZ#,2AZFSE..AZT25#¥29,100200608-200703

sub16620-28012¥29,100

main16620-28071i1AZ#,2AZFSE..AZT25#¥29,100200707-200801

sub16620-28090¥29,100

main16620-28090i1AZ#,2AZFSE..AZT25#¥29,100200703-200707

9010510509

main90105-10509¥170

9012606024

main90126-06024¥100

9012610027

main90126-10027¥410

91511B0620

main91511-B0620¥100

9151281085

main91512-81085¥120

9164180814

main91641-80814¥110

9415080640

main94150-80640¥220

9415081041

main94150-81041¥110
