VENTILATION HOSE

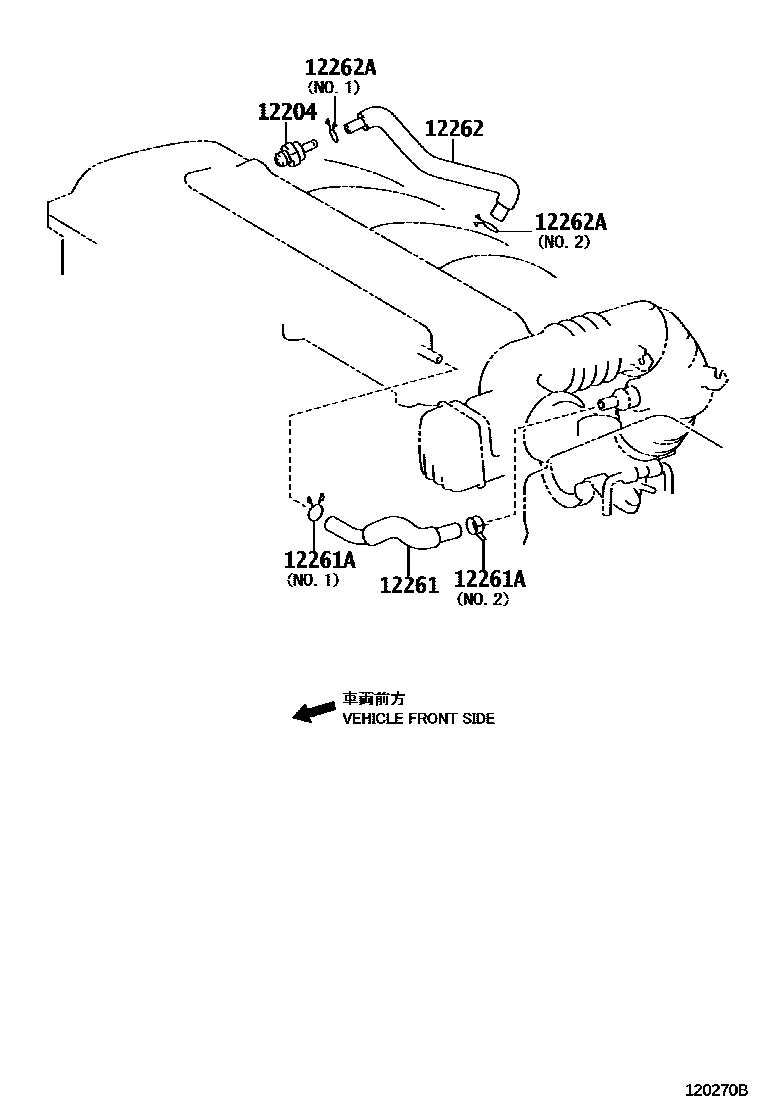

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-22050i200301-200406
sub12204-22051
main12204-22051i200406-200604
main12204-28020i200301-200604
12261HOSE, VENTILATION
main12261-0R010i200504-200604
main12261-22050i200301-200402
main12261-22070i200402-200604
main12261-27060i200303-200604
main12261-27070i200309-200411
main12261-28120i200301-200604
main12261-28130i200301-200604
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-23003i200504-200604
main90466-23004i200510-200604
NO.2
main90467-21004i200303-200604
NO.1
main90467-21004i200402-200604
NO.2
main90467-21152i200301-200402
main90467-21152i200301-200312
NO.1
main90467-23002i200303-200510
NO.2
main96134-41900i200301-200604
NO.2
main96134-52600i200402-200604
NO.1
12262HOSE, VENTILATION, NO.2
main12261-28040i200301-200604
main12262-0D100i200406-200604
(L)
main12262-0D110i200406-200604
(L)
main12262-22040i200301-200402
main12262-22040i200402-200604
(J)
main12262-22060i200301-200402
main12262-22080i200402-200604
(J)
main12262-28021i200301-200604
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i200301-200604
NO.1
main90467-16035i200301-200604
NO.2
main90467-19003i200301-200604
NO.2

5 parts on this diagram · 6 diagrams in section
