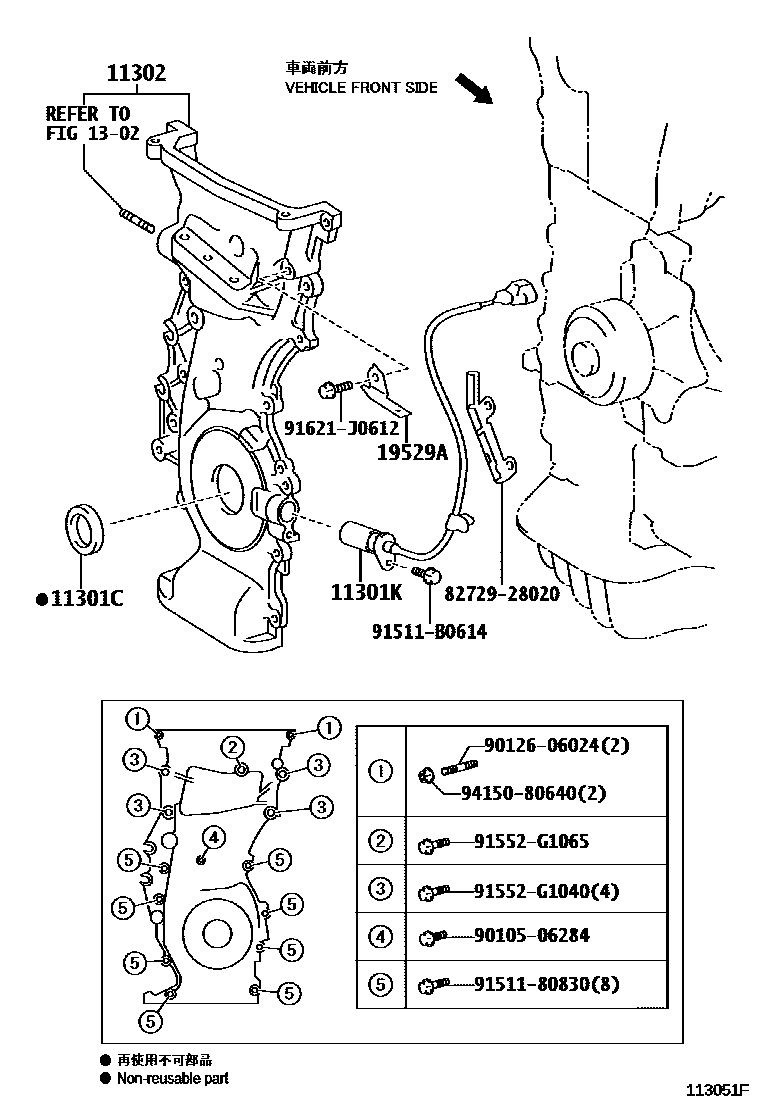

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38084i1AZ#..AZT250200301-200303

main90311-38089i1AZ#,2AZFSE..AZT25#200304-200604

main90311-W0005i1ADFTV,2AD#..ADT25#200504-200807

sub90311-W0009

main90311-W0009i1ADFTV,2AD#..ADT25#200807

sub90311-W0019

11301KSENSOR, CRANK POSITION

main90919-05029i1ADFTV,2AD#..ADT25#200504-200604

main90919-05030i1ZZFE,3ZZFE..ZZT25#200301-200604

main90919-05047i1AZ#,2AZFSE..AZT25#200301-200604

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-0R011i1ADFTV,2AD#..ADT25#200504-200809

sub11302-26020

main11302-0R020i1ADFTV,2AD#..ADT25#200809

main11310-28081i1AZ#,2AZFSE..AZT25#200301-200508

main11310-28082i1AZ#,2AZFSE..AZT25#200508-200604

main11321-0D020i1ZZFE,3ZZFE..ZZT25#200301-200604

(L)

main11321-22021i1ZZFE,3ZZFE..ZZT25#200301-200604

(J)

1302

19529ACLAMP

main19529-28010i1AZ#,2AZFSE..AZT25#200301-200604

8272928020

main82729-28020

9010506284

main90105-06284

9012606024

main90126-06024

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640
